14

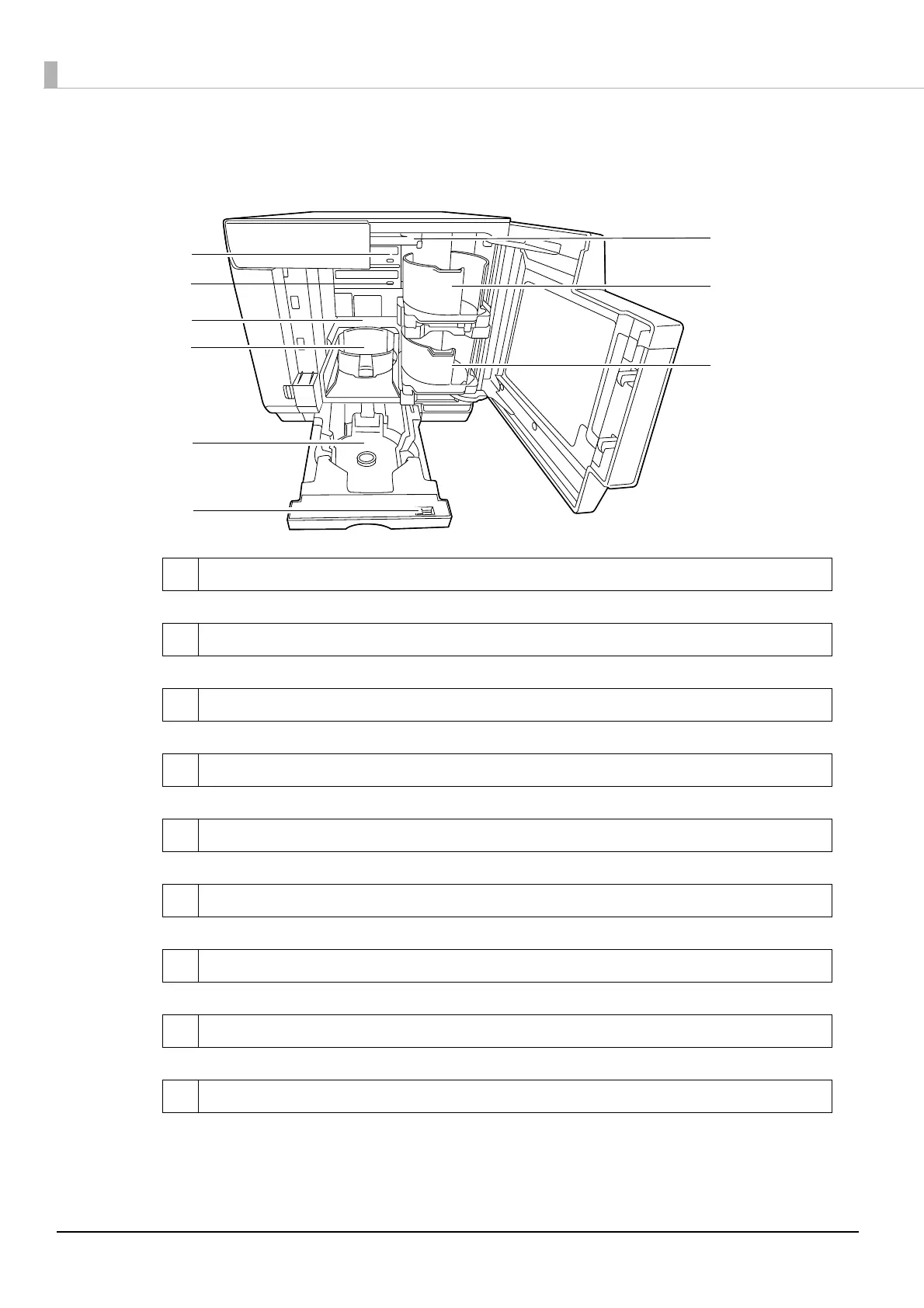

Inside
1Drive 1
Writes data on the recording surface of the discs.
2Drive 2
Writes data on the recording surface of the discs.
3 Printer
Prints on the label surface of the discs.
4Stacker 3
Use as the disc output stacker. Holds up to about 50 discs.
5Stacker 4
Use as a disc output stacker. Holds up to about 5 discs.
6 Lock lever
Locks and unlocks Stacker 4. Be sure to lock when using Stacker 3.
7Arm
Transports discs.
8Stacker 1
Use Stacker 1 as a disc input stacker. Holds up to about 50 discs.
9Stacker 2
Use Stacker 2 as a disc input or output stacker. Holds up to about 50 discs.
8
7
9
3
1
4
2
5
6
PP-100/100AP
