Basic Operations
Basic Operations
Parts Names

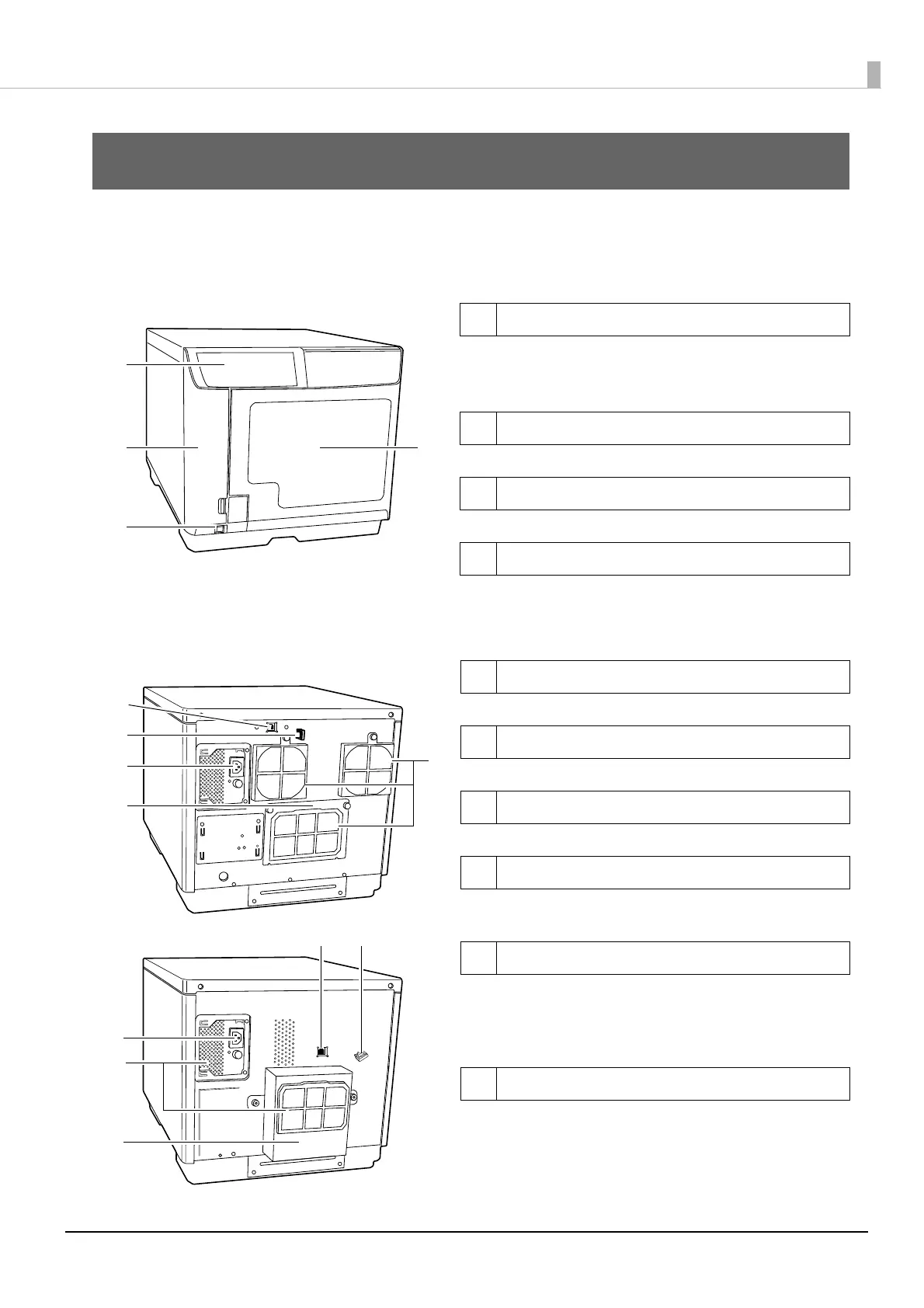

Front
Back
1 Control panel
Use to control the product. It also shows the status
of the product.
See “Control panel” on page 16 for details.
2 Ink cartridge cover
Open to insert and replace ink cartridges.
3Power button
Use to turn the product on and off.
4 Disc cover
Open to load and take out discs.
1 USB interface connector
Plug the USB cable into this connector.
2 Interface cable holder
Use to fix the USB cable.
3 AC inlet
Plug the power cord into this connector.
4 Rear printer cover
Open this cover only when a disc is stuck in the
printer tray.
5 Air vents
Expel heat generated inside this product to
prevent the temperature from rising. Leave at
least 10 cm between the back of the product
and the wall for ventilation.
6 Maintenance box cover
Open this cover to replace a maintenance box or
remove a disc stuck in the printer tray.
2
1
3
4
1
2
3
4
4
5
1
2
3
6
5
PP-100AP
PP-100/PP-50
