Epson Disc Producer PP-100 User Manual

85
Maintenance
4

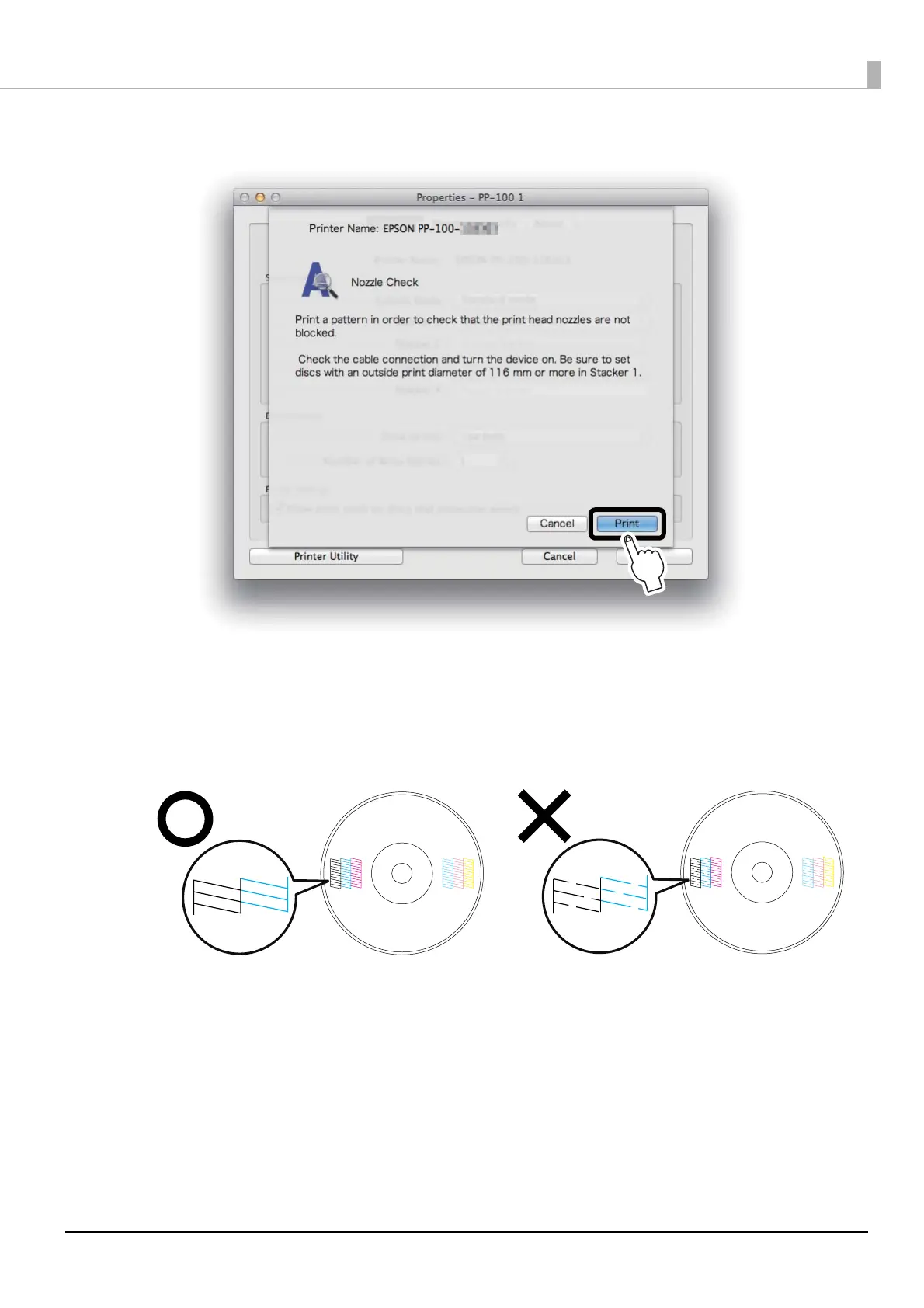

Click Print.
The disc on which the nozzle check pattern was printed is output to Stacker 3 or Stacker 4.
5
Check the printed nozzle check pattern.
If it is normal, all of the lines are printed as shown in the illustration on the left below.
If there are lines that were not printed, as shown in the illustration on the right below, the nozzles are clogged.
Run print head cleaning. (See “How to Clean the Print Head” on page 87.)
Normal Clogged

Epson Disc Producer PP-100 Specifications

General

Printing Technology	Inkjet
Disc Capacity	100 discs
Print Resolution	1440 x 1440 dpi
Interface	USB 2.0
Dimensions	377 x 493 x 348 mm
Number of Drives	1
Supported Disc Formats	CD, DVD
Operating System Compatibility	Windows XP, Windows Vista, Windows 7
Print Speed	Approximately 60 discs/hour
