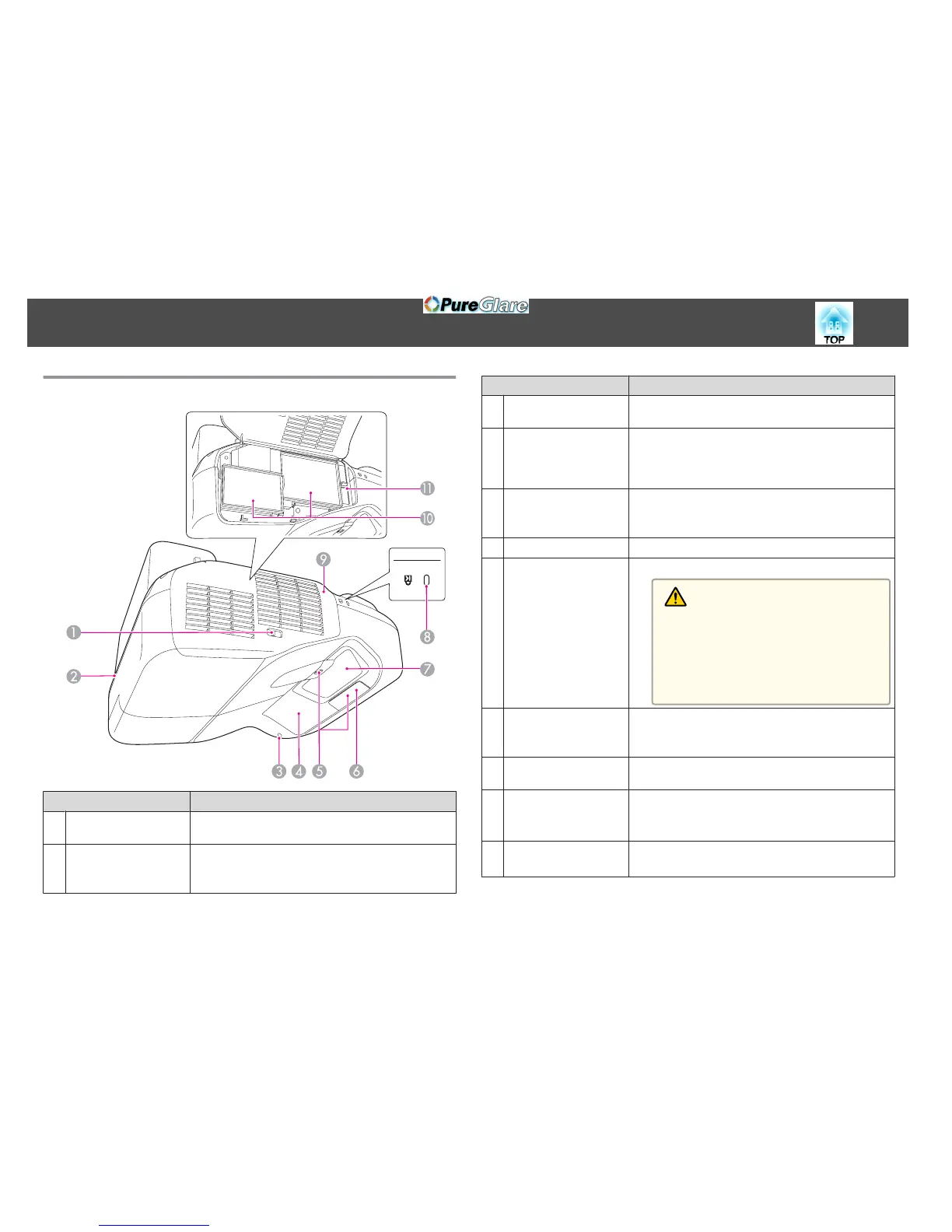

Epson EB-485W User Manual

Side
Name Function
A
Air filter cover
open/close lever
Opens and closes the air filter cover.
B
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s "Installing the wire lock" p.83
Name Function
C
Wireless LAN indicator
Indicates the access status to the optional wireless LAN
unit.
D
Easy Interactive
Function receiver
(EB-485Wi/EB-480i/
EB-475Wi only)
Receives signals from the Easy Interactive Pen.
s "Easy Interactive Function (EB-485Wi/EB-480i/
EB-475Wi only)" p.57
E
Obstacle sensor
Detects obstacles that are interfering with the projection
area.
s "Cleaning the Obstacle Sensor" p.137
F
Remote receiver
Receives signals from the remote control.
G
Projection window
Projects images.
Warning
• Do not look into the projection window while
projecting.
• Do not place any objects or put your hand near
the projection window. This area is dangerous
as it reaches high temperatures due to the con‐
centrated projection light.
H
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.83
I
Air filter cover
Open when changing the air filter or operating the focus
lever.
J
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.138
s "Replacing the Air Filter" p.142
K
Focus lever
Adjusts the image focus.
Open the air filter cover to operate.
Part Names and Functions
11
http://www.pureglare.com.au

Epson EB-485W Specifications

General

Focus	Manual
Offset	5.8 %
Focal length range	0 - 3.71 mm
Matrix size	0.59 \
White light output	3100 ANSI lumens
Native aspect ratio	16:10
Projection distance	0 - 0.43 m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	60 - 100 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-5 - 5 °
Projector brightness (economic mode)	1800 ANSI lumens
Lamp type	UHE
Lamp power	215 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Analog signal format system	-
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	35 dB
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.27 W
Power consumption (typical)	300 W

Weight and Dimensions

Weight	5200 g
