Name Function
N
Audio-L/R port
Inputs audio from equipment connected to the S-Video
port or the Video port.
O
Video port
Inputs composite video signals from video sources.
P
S-Video port
For S-video signals from video sources.
Q
Mic port
Inputs audio from the microphone.
s "Connecting a microphone" p.33

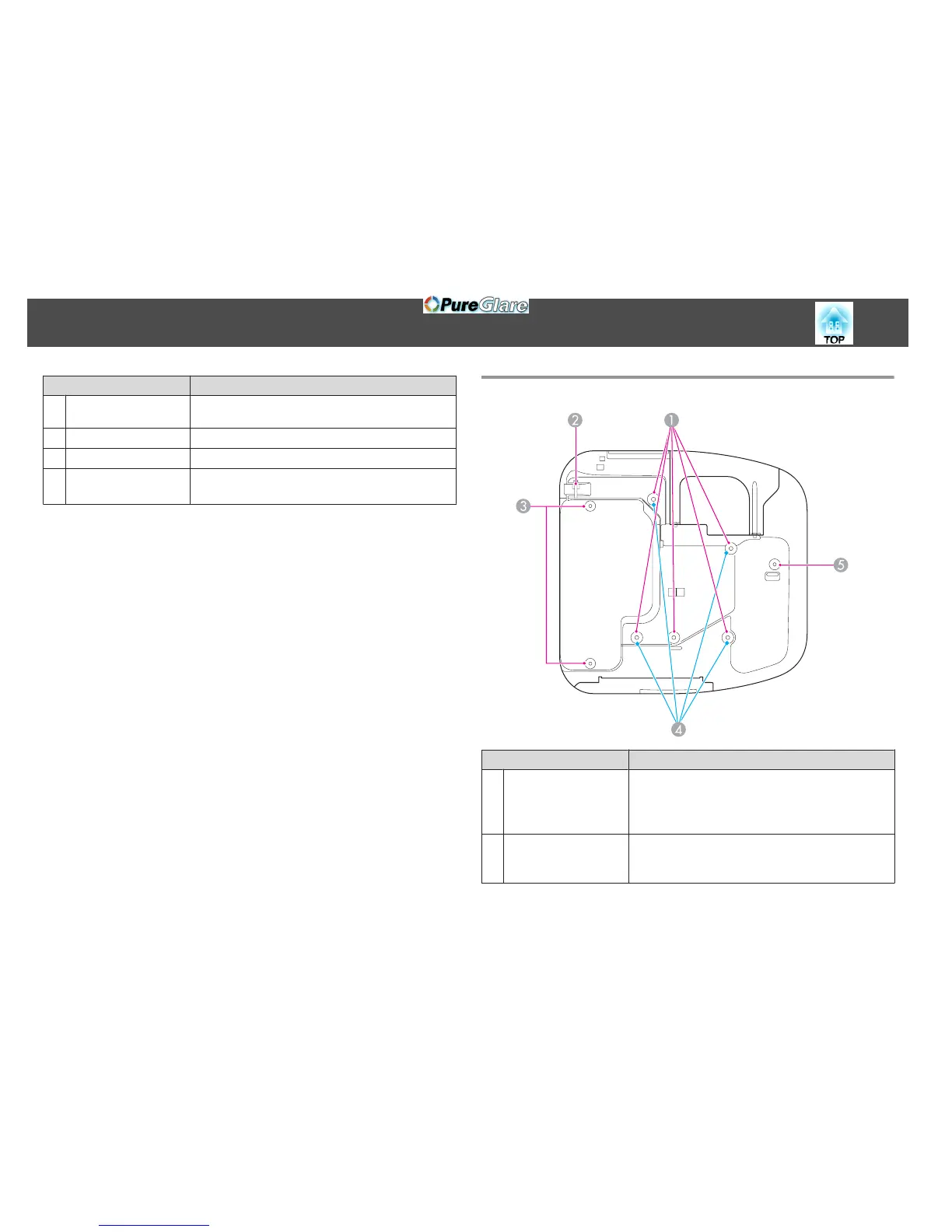

Base
Name Function
A
Ceiling mount fixing
points (five points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.24
s "Optional Accessories" p.146
B
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s "Installing the wire lock" p.83
Part Names and Functions
13
