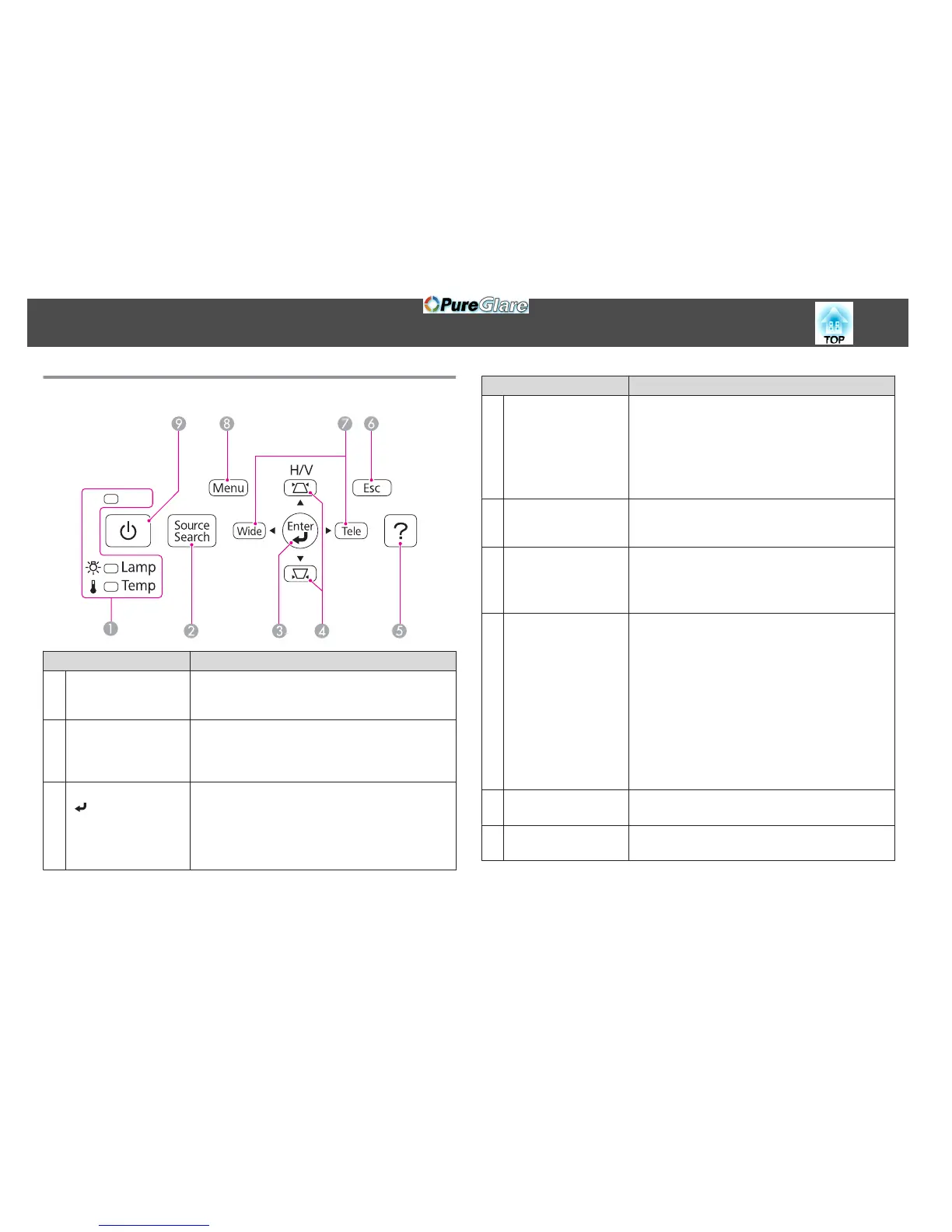

Control Panel
Name Function
A
Status indicators
Indicates the projector's status using color, and by being lit
or flashing.
s "Reading the Indicators" p.118
B
[Source Search]
button
Switches to the image from the input port where video
signals are being input.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.40
C
[Enter] button
[
]
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
• If pressed while projecting analog RGB signals from
Computer1 port or Computer2 port, you can
automatically optimize Tracking, Sync., and Position.
Name Function
D
[w][v] button
• Displays the Keystone screen.
s "H/V-Keystone" p.45
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.95
s "Using the Help" p.117
E
[Help] button
Displays and closes the help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.117
F
[Esc] button
• Stops the current function.
• If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s "Using the Configuration Menu" p.95
G
[Tele]/[Wide] buttons
• Adjusts the size of the projection screen. Press the [Tele]
button to reduce the size of the projection screen and
press the [Wide] button to increase the size of the
projection screen.
• Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
s "H/V-Keystone" p.45
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.95
s
"Using the Help" p.117
H
[Menu] button
Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.95
I
[t] button
Turns the projector power on or off.
s "From Installation to Projection" p.39
Part Names and Functions
15
http://www.pureglare.com.au

Epson EB-485W Specifications

General

Focus	Manual
Offset	5.8 %
Focal length range	0 - 3.71 mm
Matrix size	0.59 \
White light output	3100 ANSI lumens
Native aspect ratio	16:10
Projection distance	0 - 0.43 m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	60 - 100 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-5 - 5 °
Projector brightness (economic mode)	1800 ANSI lumens
Lamp type	UHE
Lamp power	215 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Analog signal format system	-
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	35 dB
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.27 W
Power consumption (typical)	300 W

Weight and Dimensions

Weight	5200 g
