Epson EB-735F User Manual

Using Multiple Projectors
161
e

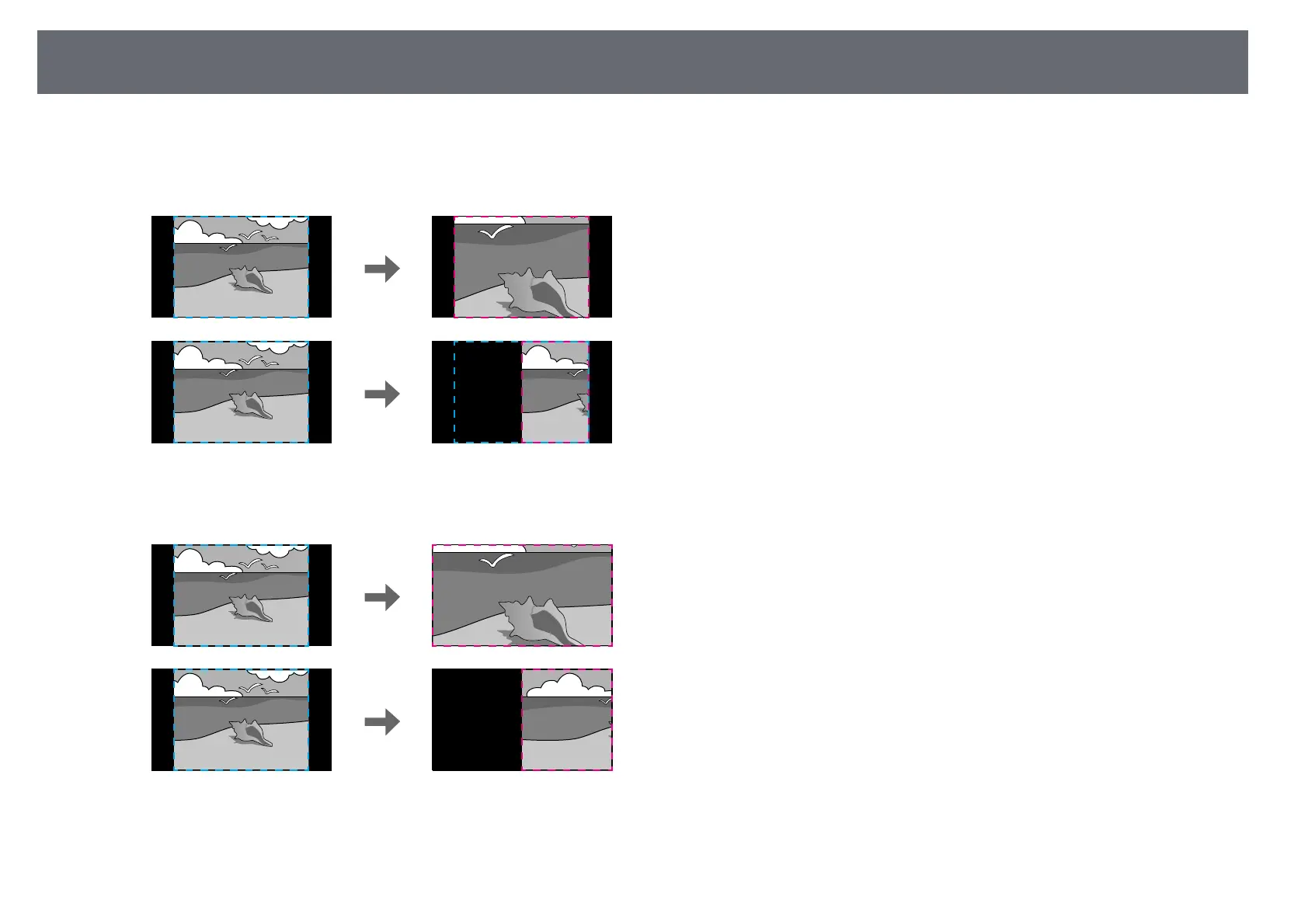

Select the Scale Mode setting and select one of these options:
• Zoom Display to maintain the image aspect ratio as you scale the
image.
• Full Display to adjust the image to the projector's screen size as you
scale the image.
f
Select one or more of the following scaling options and adjust it as
necessary:
• - or + to scale the image horizontally and vertically at the same time.
• Scale Vertically to scale the image vertically only.
• Scale Horizontally to scale the image horizontally only.
g
Select the Clip Adjustment setting and use the arrow buttons to adjust
the coordinates and size of each image as you view the screen.
h
Select Clip Range to preview the clipped area you selected.
i
When you are finished, press [Menu].

Epson EB-735F Specifications

General

Matrix size	0.61 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	- m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	65 - 120 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-3 - 3 °
Projector brightness (economic mode)	2500 ANSI lumens
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Focus	Manual
Throw ratio	0.26 - 0.36:1
Zoom capability	Yes
Fixed focal length	3.7 mm
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
HDMI connector type	Full-size
HDMI ports quantity	3
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 Type-B ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Noise level	36 dB
Country of origin	China
Noise level (economic mode)	26 dB
Cables included	AC
Bundled software	EasyMP Multi PC Projection, Epson Projektor Management
Storage temperature (T-T)	-10 - 60 °C
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	255 W
Power consumption (economy mode)	197 W
Placement	Ceiling, Wall
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
RMS rated power	16 W
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Sustainability certificates	TCO
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Weight and Dimensions

Depth	395 mm
Width	356 mm
Height	133 mm
Weight	5700 g
Package depth	475 mm
Package width	442 mm
Package height	315 mm
Package weight	8209 g
