Screen Size and Projection Distance
289

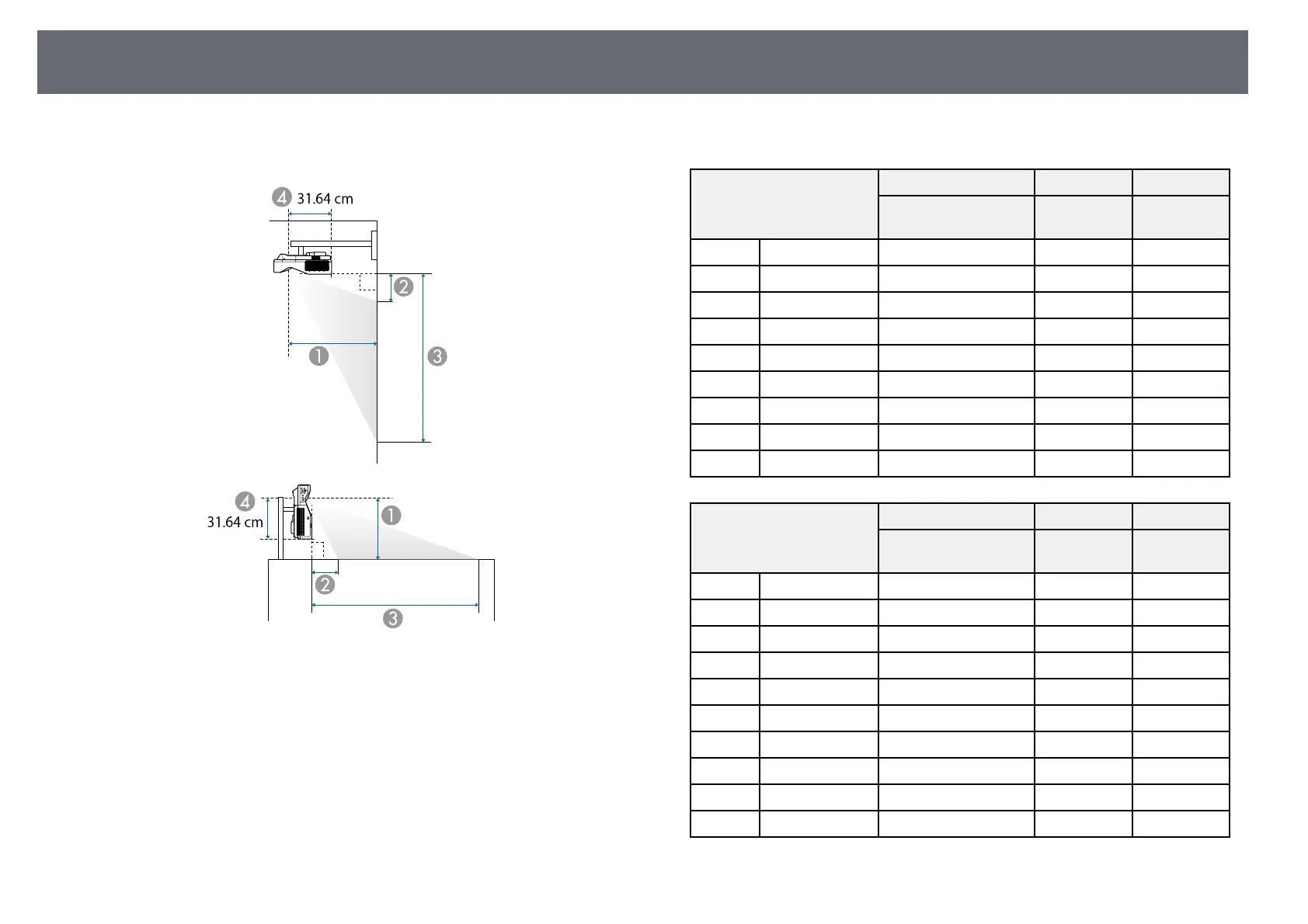

Check the table here to determine how far to place the projector from the
screen based on the size of the projected image.
A
Projection distance (cm)
B
Distance from the projector to the top of the screen (when mounting on a wall
or ceiling, or installing vertically) (cm)
C
Distance from the projector to the bottom of the screen (when mounting on a
wall or ceiling, or installing vertically) (cm)
D
Distance from the center of the lens to the rear of the projector (cm)
EB‑‑755F/EB‑‑750F/EB‑‑735Fi/EB‑‑735F
16:9 screen size
A B C
Minimum (Wide) Minimum
(Wide)
Minimum
(Wide)
65" 143.9 × 80.9 37.2 13.9 94.8
70" 155.0 × 87.2 40.2 15.4 102.6
75" 166.0 × 93.4 43.3 17.0 110.4
80" 177.1 × 99.6 46.3 18.5 118.2
85" 188.2 × 105.8 49.3 20.1 126.0
90" 199.2 × 112.1 52.3 21.7 133.7
100" 221.4 × 124.5 58.3 24.8 149.3
110" * 243.5 × 137.0 64.3 27.9 164.9
120" * 265.7 × 149.4 70.3 31.0 180.4
4:3 screen size
A B C
Minimum (Wide) Minimum
(Wide)
Minimum
(Wide)
54" 109.7 × 82.3 37.9 14.2 96.5
55" 111.8 × 83.8 38.6 14.6 98.4
60" 121.9 × 91.4 42.3 16.5 107.9
65" 132.1 × 99.1 46.0 18.4 117.5
70" 142.2 × 106.7 49.7 20.3 127.0
75" 152.4 × 114.3 53.3 22.2 136.5
80" 162.6 × 121.9 57.0 24.1 146.0
85" 172.7 × 129.5 60.7 26.0 155.6
90" 182.9 × 137.2 64.4 27.9 165.1
98" 199.1 × 149.4 70.3 31.0 180.3
