Projection Modes

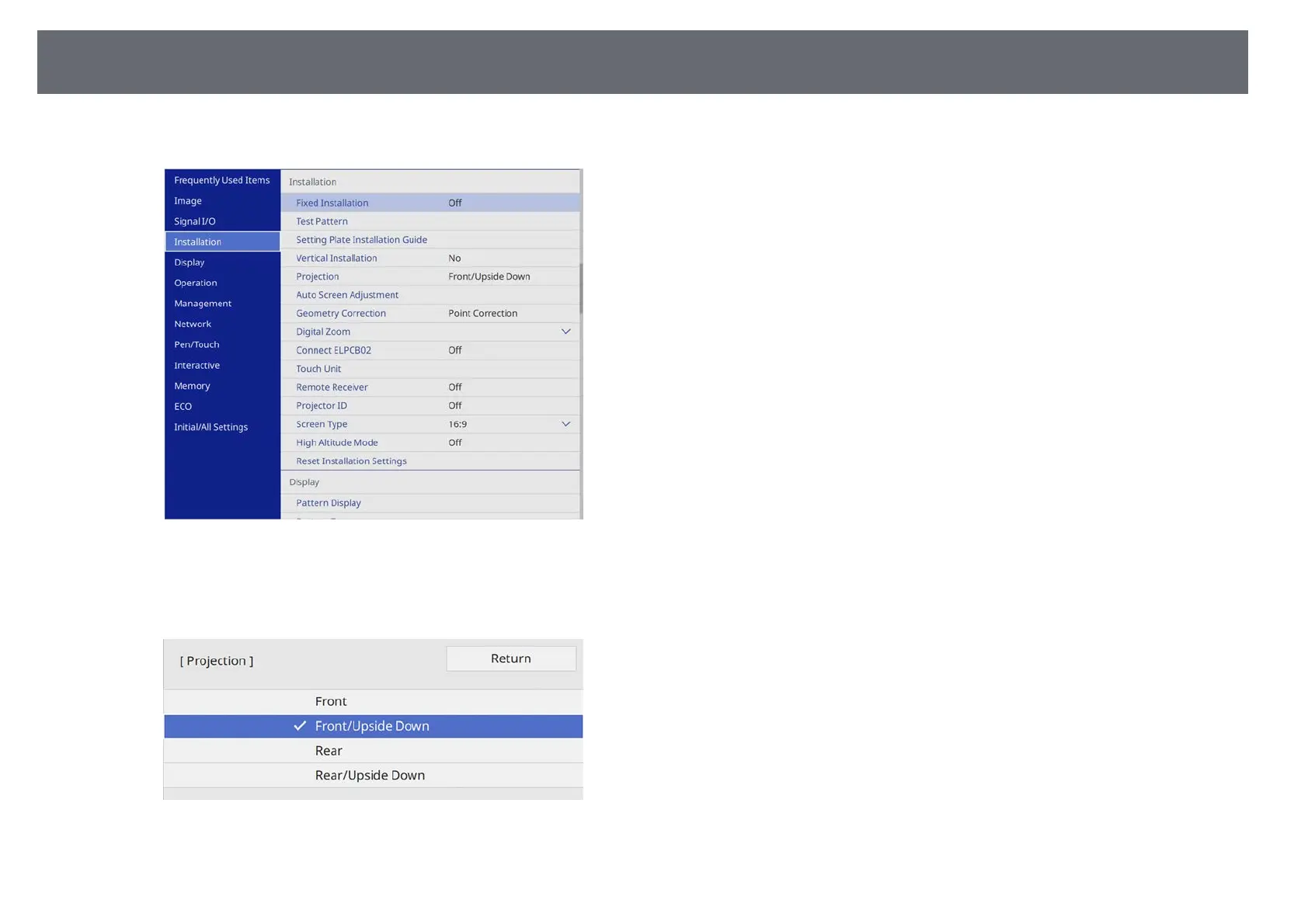

Select the Installation menu and press [Enter].

Select Projection and press [Enter].

Select a projection mode and press [Enter].

Press [Menu] or [Esc] to exit the menus.
