To complete the adjustment, press the [Menu] button.
Adjusting the Lens Balance
The lens may tilt depending on the projector's installation angle or the
weight of the lens unit that is attached. If the lens is tilted, images may be
out of focus. Adjust the lens balance if some areas of the projected image
are out of focus.
Special techniques are necessary to adjust the lens balance. Contact your
local dealer or the nearest address provided in the Epson Projector Contact
List.
Warning
When adjusting the lens balance, make sure you follow the steps in this User's
Guide to prevent light from the projector from shining into your eyes. If you
do not follow the steps correctly, the bright light can damage your eyes.
a
Turn off the projector if it is on.
b
Remove the projector lens unit.
s "Removing" p.25
c

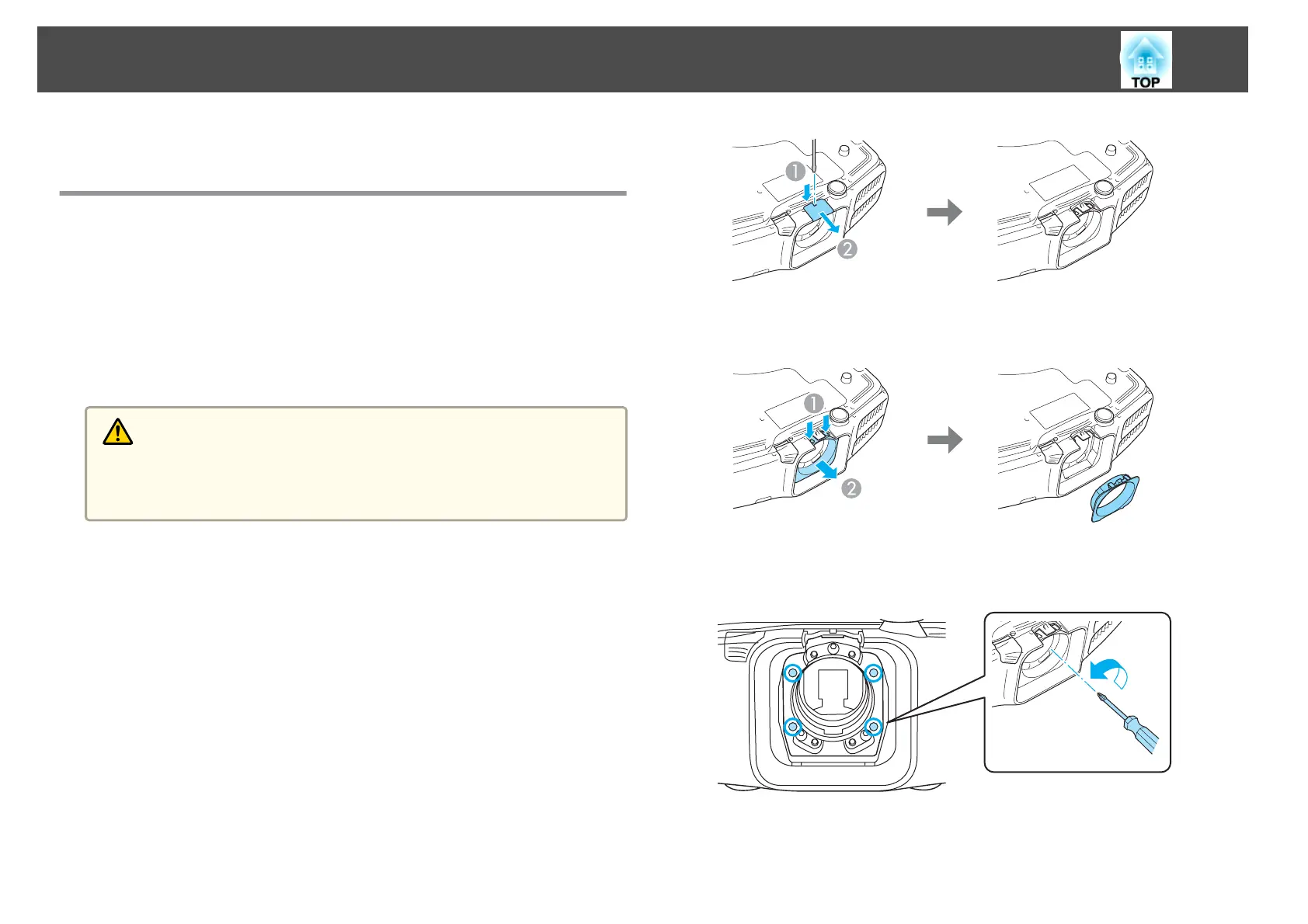

Press a screwdriver and so on down into the clip on the lens
installation section (on the opposite side of the lens shift dial), and
then remove the cover.
The illustration shows the projector mounted on a ceiling.
d
Remove the inner cap by pushing the two clips on the inner cap
in the direction shown by the arrows.
e
Use a cross-head screwdriver #1 to remove the fixing screws (four
points).
Image Maintenance
152
