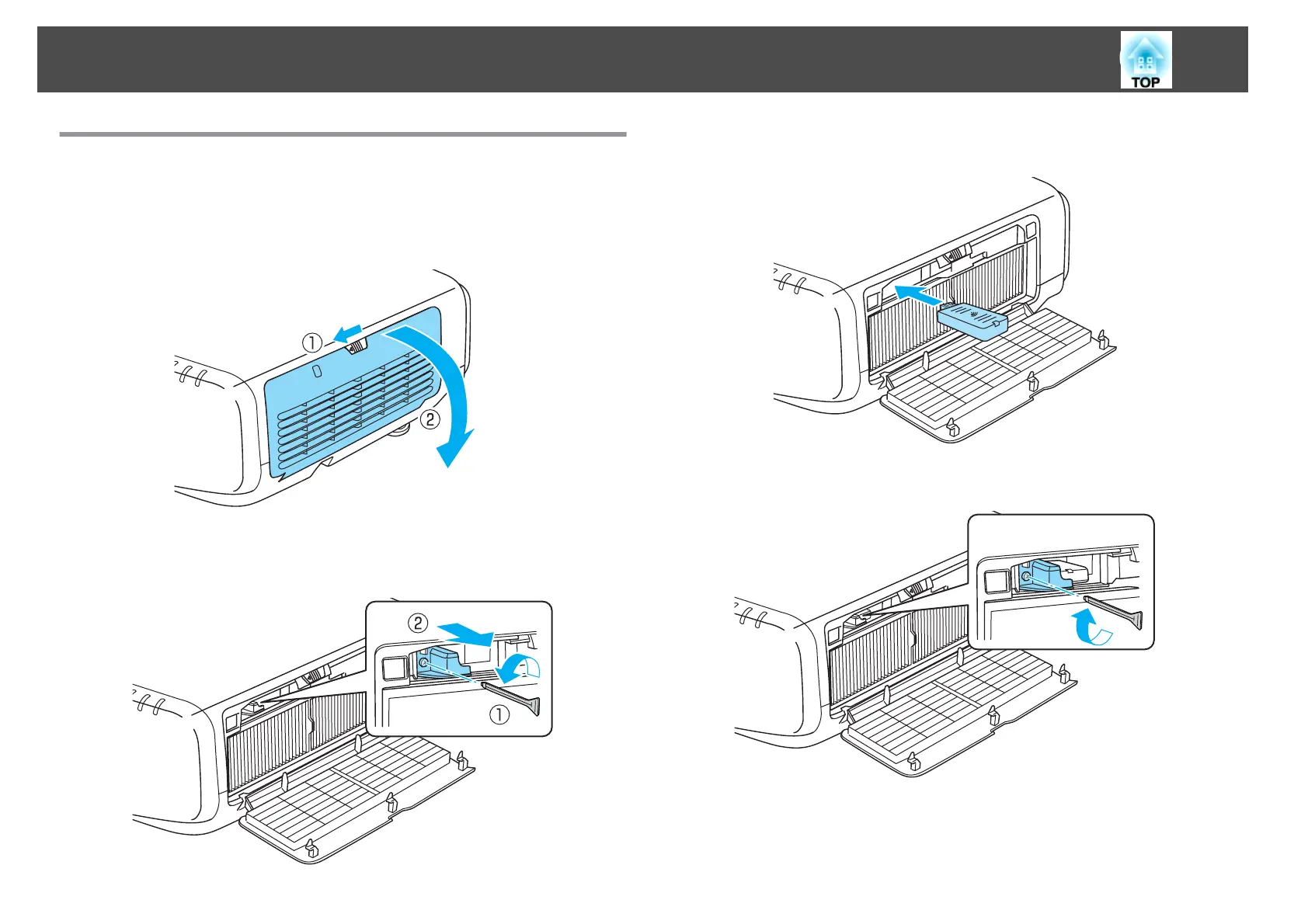

Installing
the
Wireless
LAN
Unit
a
Open
the
air
filter
cover.
Slide
the
air
filter
cover
operat
ion
knob,
and
open
the
air
filter
cover.
b
R
e
m
o
v
e t
h
e s
t
o
p
p
e
r f
o
r t
h
e W
i
r
e
l
e
s
s L
A
N u
n
i
t
.
c
Install
the
Wireless
LAN
unit.
d
Secure
the
st
opper
with
a
screw.
e
C
l
o
s
e t
h
e a
i
r f
i
l
t
e
r c
o
v
e
r
.
Connecting Equipment
46
45
47
Table of Contents
Notations Used in this Guide
2
Table of Contents
8
Introduction
12
Part Names and Functions
13
Front/Top
13
Rear
14
Interface
15
Base
16
Control Panel
16
Remote Control
18
Replacing the Remote Control Batteries
20
Remote Control Operating Range
22
Preparing the Projector
23
Installing the Projector
24
Removing and Attaching the Projector Lens Unit
24
Attaching
24
Removing
25
Installation Settings
26
Setting the Direction
26
Changing the Direction of the Image (Projection Mode)
27
Screen Settings
27
Adjusting the Position of the Image on the Projected Screen
28
Displaying a Test Pattern
29
Adjusting the Position of the Projected Image (Lens Shift)
30
Adjusting the Image Size
32
Correcting the Focus
32
When Using the Short Throw Zoom Lens ELPLU01
32
Adjusting the Height of the Projected Image (for Normal Installment)
33
Adjusting the Horizontal Tilt (for Normal Installment)
33
ID Settings
34
Set the Projector ID
34
Checking the Projector ID
35
Setting the Remote Control ID
35
Setting the Time
35
Other Settings
37
Settings Related to Basic Operations
37
Settings Related to Display
38
Connecting Equipment
39
Connecting a Computer
39
Connecting Image Sources
41
Connecting External Equipment
43
Connecting a LAN Cable
44
Connecting an Hdbaset Transmitter
44
Installing the Wireless LAN Unit
46
Attaching the Cable Cover
47
Attaching
47
Basic Usage
48
Projecting Images
49
Automatically Detect Input Signals and Change the Projected Image (Source Search)
49
Switching to the Target Image by Remote Control
50
Adjusting the Volume
50
Adjusting Projected Images
51
Correcting Distortion in the Projected Image
51
H/V-Keystone
51
Quick Corner
52
Arc Correction
53
Point Correction
54
Selecting the Projection Quality (Selecting Color Mode)
56
Setting Auto Iris
57
Changing the Aspect Ratio of the Projected Image
57
Changing Methods
57
Adjusting the Image
60
Hue, Saturation, and Brightness Adjustment
60
Gamma Adjustment
60
Frame Interpolation (EB-G6770WU/EB-G6570WU/EB-G6470WU Only)
62
Contents
62
Projecting 3D Images
62
Useful Functions
64
Multi-Projection Function
65
Preparation
65
Adjust the Edges of the Images (Edge Blending)
66
Adjusting the Brightness of the Lamp
66
Performing Edge Blending
66
Adjusting to Match Colors
68
Scaling an Image (Scale)
69
Projection Functions
71
Projecting Two Images Simultaneously (Split Screen)
71
Operating Procedures
71
Restrictions During Split Screen Projection
73
Hiding the Image and Sound Temporarily (A/V Mute)
74
Freezing the Image (Freeze)
75
Enlarging Part of the Image (E-Zoom)
75
Saving a User's Logo
76
Memory Function
78
Saving/Loading/Erasing the Memory
78
Scheduling Function
80
Saving a Schedule
80
Setting Methods
80
Editing a Schedule
81
Security Functions
83
Managing Users (Password Protection)
83
Kinds of Password Protection
83
Setting Password Protection
83
Entering the Password
84
Restricting Operation
85
Control Panel Lock
85
Remote Control Button Lock
86
Anti-Theft Lock
86
Installing the Wire Lock
87
Configuration Menu
88
Using the Configuration Menu
89
List of Functions
90
Configuration Menu Table
90
Network Menu
91
Image Menu
92
Signal Menu
93
Settings Menu
95
Extended Menu
96
Network Menu
100
Notes on Operating the Network Menu
101
Soft Keyboard Operations
102
Basic Menu
102
Wireless LAN Menu
103
Security Menu
105
Wired LAN Menu
108
Administrator Settings Menu
109
Reset Menu
112
Info Menu (Display Only)
113
Reset Menu
114
Batch Setup
115
Setup Using a USB Flash Drive
115
Saving Settings to the USB Flash Drive
115
Reflecting Saved Settings to Other Projectors
117
When Setup Fails
119
Contents
120
Troubleshooting
120
Using the Help
121
Problem Solving
122
Reading the Indicators
122
When the Indicators Provide no Help
126
Problems Relating to Images
127
No Images Appear
127
Moving Images Are Not Displayed
127
Projection Stops Automatically
128
"Not Supported" Is Displayed
128
"No Signal" Is Displayed
128
Images Are Fuzzy, out of Focus, or Distorted
129
Interference or Distortion Appear in Images
129
The Image Is Truncated (Large) or Small, the Aspect Is Not Suitable, or the Image Has Been Reversed
130
Image Colors Are Not Right
131
Images Appear Dark
132
Problems When Projection Starts
132
The Projector Does Not Turn on
132
Other Problems
133
No Sound Can be Heard or the Sound Is Faint
133
The Remote Control Does Not Work
134
Nothing Appears on the External Monitor
135
I Want to Change the Language for Messages and Menus
135
The Authentication Setting of Wireless LAN Fails
136
Email Is Not Received Even if a Problem Occurs in the Projector
136
"The Battery that Saves Your Clock Settings Is Running Low." Is Displayed
136
Cannot Change Settings Using a Web Browser
137
About Event ID
138
Maintenance
140
Cleaning
141
Cleaning the Projector's Surface
141
Cleaning the Lens
141
Cleaning the Air Filter
141
Replacing Consumables
144
Replacing the Lamp
144
Lamp Replacement Period
144
How to Replace the Lamp
145
Resetting the Lamp Hours
147
Replacing the Air Filter
147
Air Filter Replacement Period
147
How to Replace the Air Filter
147
Image Maintenance
149
Panel Alignment
149
Color Uniformity
150
Adjusting the Lens Balance
152
Appendix
156
Network Functions
157
Projecting with "Connect to a Network Projector
157
Making a WPS (Wi-Fi Protected Setup) Connection with a Wireless LAN Access Point
157
Connection Setup Method
157
Using the Quick Wireless Connection USB Key
158
Monitoring and Controlling
160
About Easymp Monitor
160
About Message Broadcasting
160
Changing Settings Using a Web Browser (Web Control)
160
Projector Setup
160
Displaying the Web Control Screen
160
Setting Certificates
161
Secure HTTP Notes
162
List of Supported Certificates
162
Contents
163
Using the Mail Notification Function to Report Problems
163
Reading Error Notification Mail
163
Management Using SNMP
164
Displaying the Web Remote Screen
164
ESC/VP21 Commands
165
Command List
165
Cable Layouts
166
About Pjlink
167
About Crestron Roomview
167
Operating a Projector from Your Computer
168
Optional Accessories and Consumables
172
Optional Accessories
172
Consumables
173
Screen Size and Projection Distance
174
Projection Distance (for EB-G6770WU/EB-G6570WU/EB-G6470WU/EB-G6270W/EB- G6070W)
174
Standard Zoom Lens ELPLS07
174
Short Throw Zoom Lens ELPLU01
175
Rear Projection Wide Lens ELPLR03
175
Middle Throw Zoom Lens ELPLM04
176
Middle Throw Zoom Lens ELPLM05
177
Long Throw Zoom Lens ELPLL06
178
Projection Distance (for EB-G6370/EB-G6170)
179
Standard Zoom Lens ELPLS07
179
Short Throw Zoom Lens ELPLU01
180
Rear Projection Wide Lens ELPLR03
181
Middle Throw Zoom Lens ELPLM04
181
Middle Throw Zoom Lens ELPLM05
182
Long Throw Zoom Lens ELPLL06
183
Supported Monitor Displays
185
Supported Resolutions
185
Computer Signals (Analog RGB)
185
Component Video
185
Composite Video
185
Input Signal from the HDMI Port , Displayport, and Hdbaset *1
186
Input Signal from the HDMI Port , Displayport, and Hdbaset Port
186
Specifications
187
Projector General Specifications
187
Appearance
191
Glossary
192
General Notes
194
About Notations
194
Trademarks and Copyrights
195
Index
196
