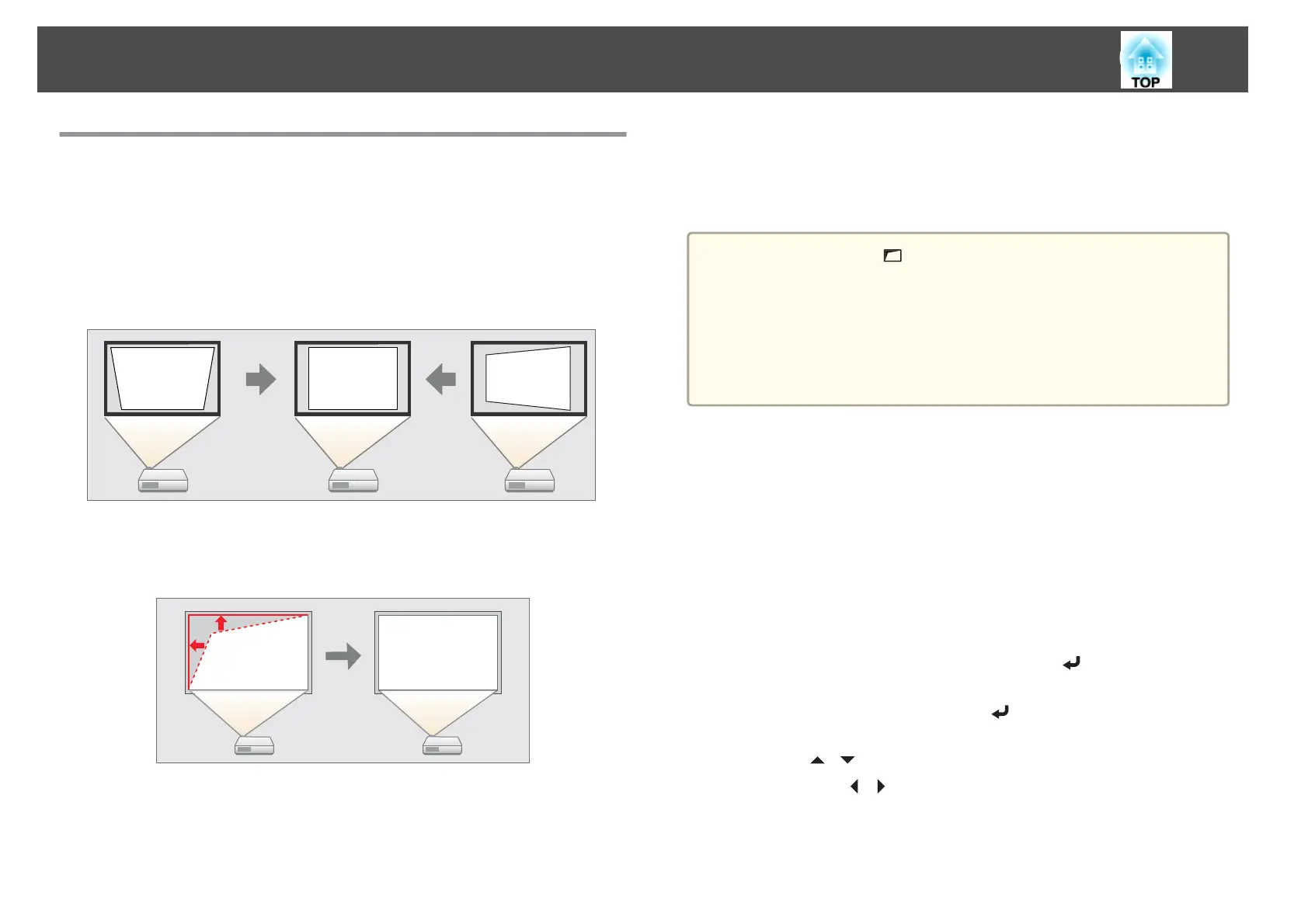

Correcting Distortion in the Projected Image
You can correct keystone distortion in projected images using one of the
following methods.
• H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently.
s "H/V-Keystone" p.51
• Quick Corner
Manually correct the four corners independently.
s "Quick Corner" p.52
• Arch correction
Fine adjustment of the curved distortion caused by slack or shrinkage of
the screen.
s "Arc Correction" p.53
• Point correction
Corrects slight distortion which occurs partially, or adjusts the image
position in an overlapping area when projecting from multiple projectors.
s "Point Correction" p.54
a
• By pressing the [ ] button on the control panel, you can perform
the selected adjustment method directly.
• You cannot combine multiple adjustment methods.
• To make sure that keystone correction is performed correctly, set the
Lens Type in the Configuration menu according to the lens you are
using.
s Extended - Operation - Lens Type p.96
H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently. The angle of vertical and horizontal tilt for the projector can
be corrected up to 30 degrees against the screen.
a
Press the [Menu] button while projecting.
b
Select Geometric Correction from Settings.
c
Select H/V-Keystone, and then press the [ ] button.
If the message "If this setting is changed, the image may be
distorted." is displayed, press the [
] button.
d
Use the [ ][ ] buttons to select the correction method, and
then use the [
][ ] buttons to make the corrections.
Adjusting Projected Images
51
