Adjusting the Position of the Projected Image
(Lens Shift)
The lens can be shifted to adjust the position of the projected image, for
example, when the projector cannot be installed directly in front of the
screen.

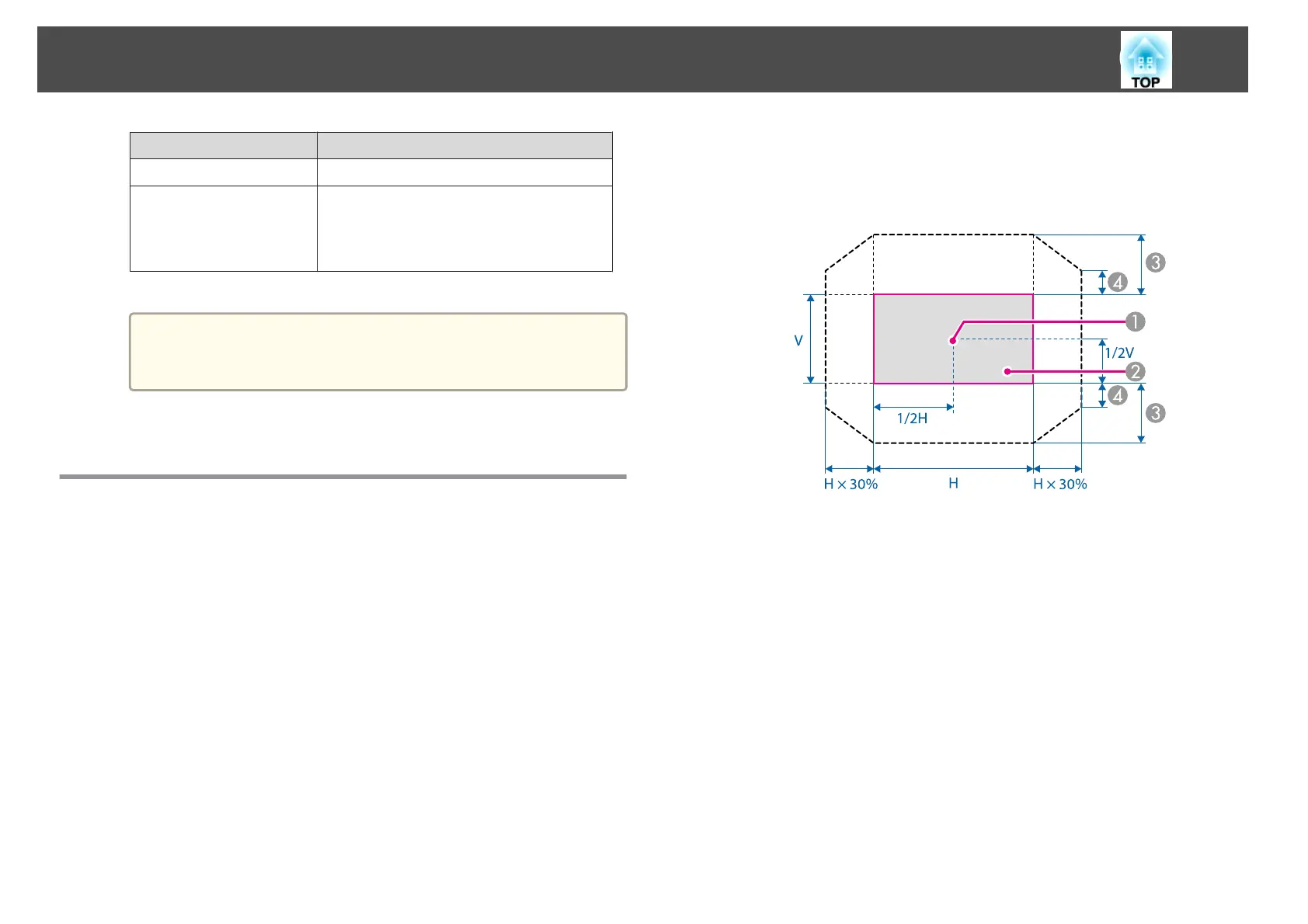

The ranges within which the image can be moved are shown below. The
position of the projected image cannot be moved to both the horizontal and
vertical maximum values.
EB-G6770WU/EB-G6570WU/EB-G6470WU/EB-G6270W/EB-G6070W
A
Center of lens
B
Projected image when lens shift is set in the center
C
Maximum motion range: V x 67%
D
When the horizontal direction is at the maximum value: V x 27%
Installing the Projector
30
