EB-G6370/EB-G6170
A

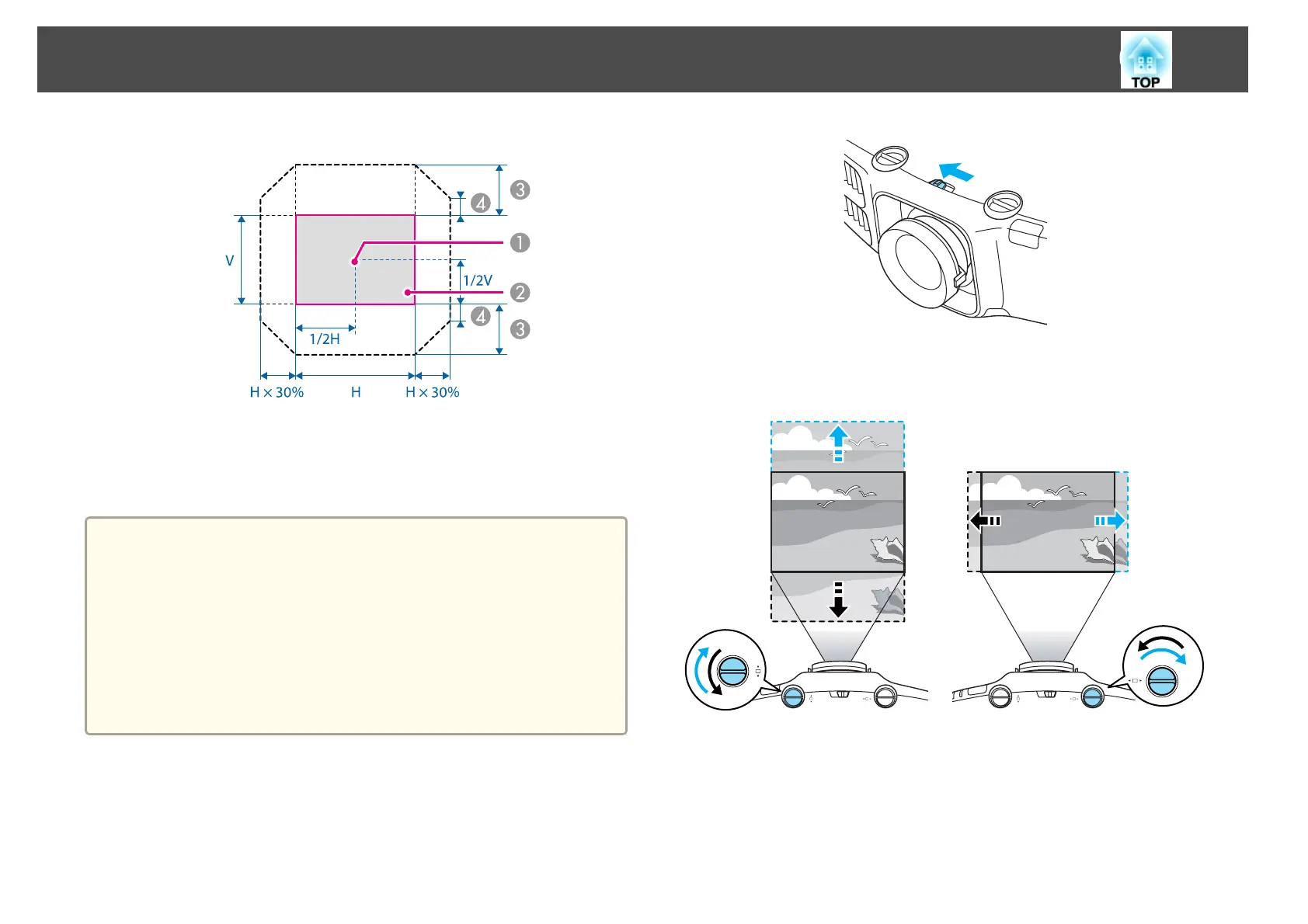

Center of lens
B
Projected image when lens shift is set in the center
C
Maximum motion range: V x 57%
D
When the horizontal direction is at the maximum value: V x 19%
a
• When adjusting the image height with the vertical lens shift dial,
adjust by moving the image from the bottom to the top. If it is
adjusted from the top to the bottom, the image position may move
down slightly after adjusting.
• We recommend setting the focus, zoom, and lens shift at least
30 minutes after you start the projection, because images are not
stable right after turning on the projector.
• The image will be clearest when both the vertical and horizontal lens
shift are set in the center.
• The rear projection wide lens ELPLR03 does not support lens shift.
a
Release the lens shift dial lock.
b
Turn the vertical and horizontal lens shift dials on the projector to
adjust the position of the projected image.
c
When you have finished making adjustments, lock the lens shift
dial lock.
