EPSON FX-890/2190 Revision B
Appendix Connector Summary 105
7.1 Connector Summary
The primary components of the printer are connected as shown below;

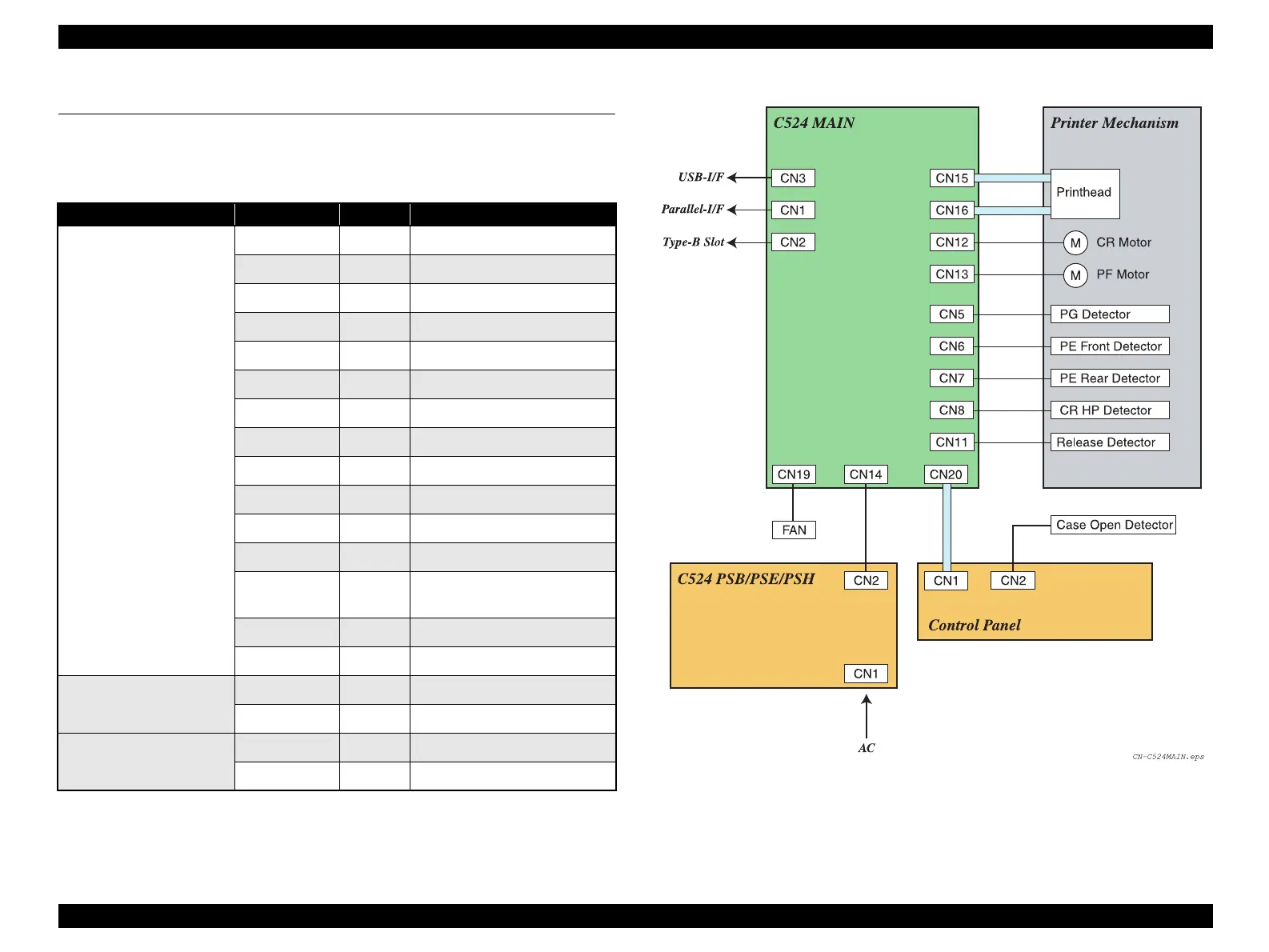

Figure 7-1. Cable Connections
Table 7-1. Connector Summary
Board Connector No. Pin Description
C524MAIN Board
CN1 36 Parallel I/F
CN2 36 Type-B I/F (Option)
CN3 4 USB I/F
CN5 2 PG Detector
CN6 2 Front PE Detector
CN7 3 Rear PE Detector
CN8 2 HP Detector
CN11 2 Release Detector
CN12 5 CR Motor
CN13 4 PF Motor
CN14 10 DC input, Power On/Off
CN15 16 Printhead (upper connector)
CN16 17
Printhead, Thermistor (lower
connector)
CN19 2 FAN
CN20 20 Control Panel
C524 PSB/PSE/PSH Board
CN1 2 AC line input
CN2 10 DC output
Control Panel
CN1 20 C524 MAIN
CN2 2 Case Open Detector
