EPSON FX-890/2190 Revision B
Disassembly and Assembly Printer Mechanism Disassembly 88
4.3.12 Carriage Assembly
1. Remove the Printer Mechanism. (p.80)
2. Remove the Head FFC. (See page 77)
3. Remove the Platen. (p.79)
4. Remove the CR Motor. (p.81)
5. Remove the hexagon nut (M4) and the washer securing the LEVER,G,ADJUST to
the SHAFT,CR,GUIDE, and remove the lever. (See Figure 4-26)
6. Remove the BUSHING,PARALLEL,ADJUST to turn the SHAFT,CR,GUIDE.

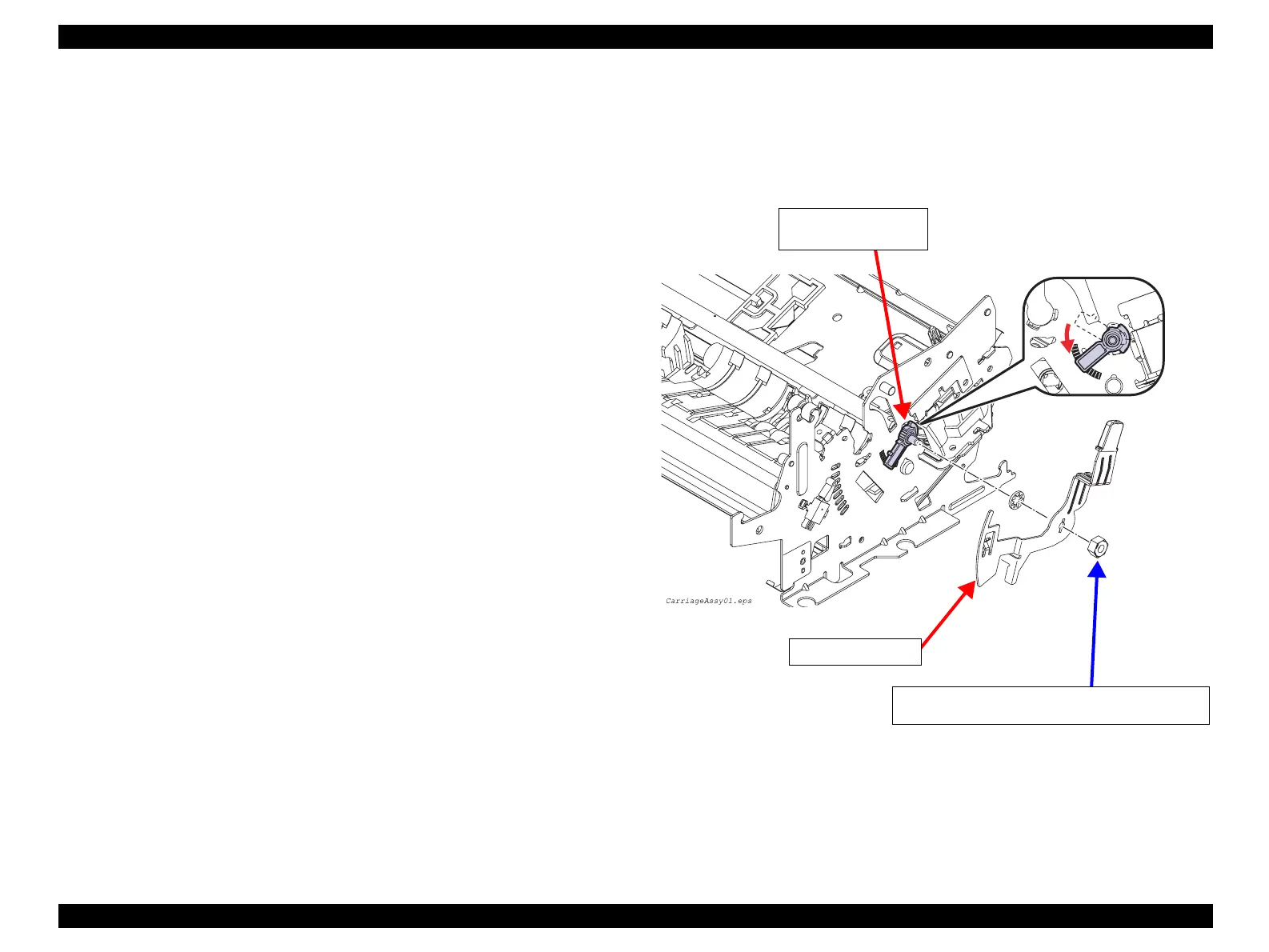

Figure 4-26. Carriage Assembly Removal 1
BUSHING, PARALLEL,
ADJUST
Hexagon Nut (4)
Tightening Torque: tamporary(about 2Kgfcm)
LEVER, G, ADJUST
To Next Page
