EPSON FX-890/2190 Revision B
PRODUCT DESCRIPTIONS Operation 30
1.3 Operation
This section describes the operations on this printer.
1.3.1 Control panel
The control panel of this printer is equipped with 6 switches and 10 LEDs, which are
located as shown below.

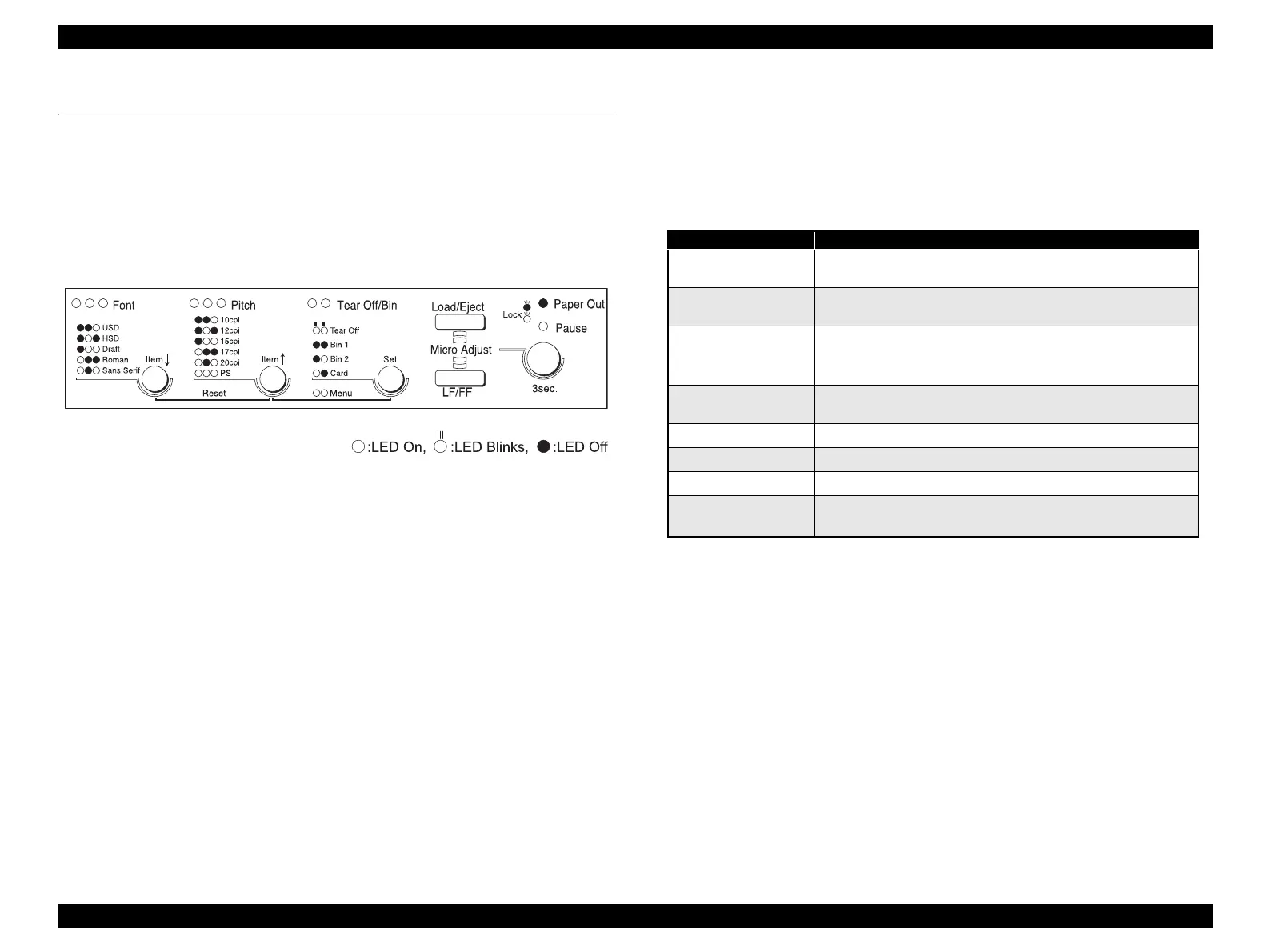

Figure 1-9. Control Panel
1.3.2 Switches
1.3.2.1 Operation in Normal Mode
In the normal mode, pressing panel switches executes the following functions.
Table 1-33. Normal Mode
Switch Function
Pause
• Alternates printing and no-printing status.
• Enables Micro Adjust function, holding it down for 3 seconds.
Load/Eject
• Loads or ejects the paper.
• Executes micro feed forward, when this function is enabled.
LF/FF
• Executes line feed, pressing it shortly.
• Executes form feed, holding it down for a few seconds.
• Executes micro feed backward, when this function is enabled.
Tear Off/Bin
• Advances continuous paper to the Tear-Off position.
• Selects CSF bin 1/2 or Card mode in friction mode.
Font
• Selects font and draft quality.
Pitch
• Selects pitch.
Reset (Font & Pitch)
• Resets the printer.
Menu
(Pitch & Tear Off/Bin)
• Enter or exit the default setting mode.

Epson FX-2190 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Color	No
Character pitch	10 cpi
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	136
Print technology	Dot matrix
Dimensions (WxDxH)	589 x 360 x 157 mm
Standard interfaces	Parallel, USB 1.1
Optional connectivity	Ethernet
Country of origin	Indonesia
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (typical)	53 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2040 mm
Quantity per pallet	14 pc(s)
Quantity per pallet (UK)	21 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	3 pc(s)
Package depth	700 mm
Package width	460 mm
Package height	270 mm
Package weight	11740 g
Quantity per pack	1 pc(s)
