EPSON FX-890/2190 Revision B
Disassembly and Assembly Main Components Disassembly 70
4.2.1 Pre-disassembly Procedures
Remove the Paper Guide Assembly, top cover, front cover, paper eject cover, knob and
tractor unit.
 Paper Guide Assembly. (See Figure 4-2)
 Top cover.(See Figure 4-2)
 Knob. (See Figure 4-2)
 Paper eject cover. (See Figure 4-3)
 Front cover. (See Figure 4-4)
 Tractor unit. (See Figure 4-5)

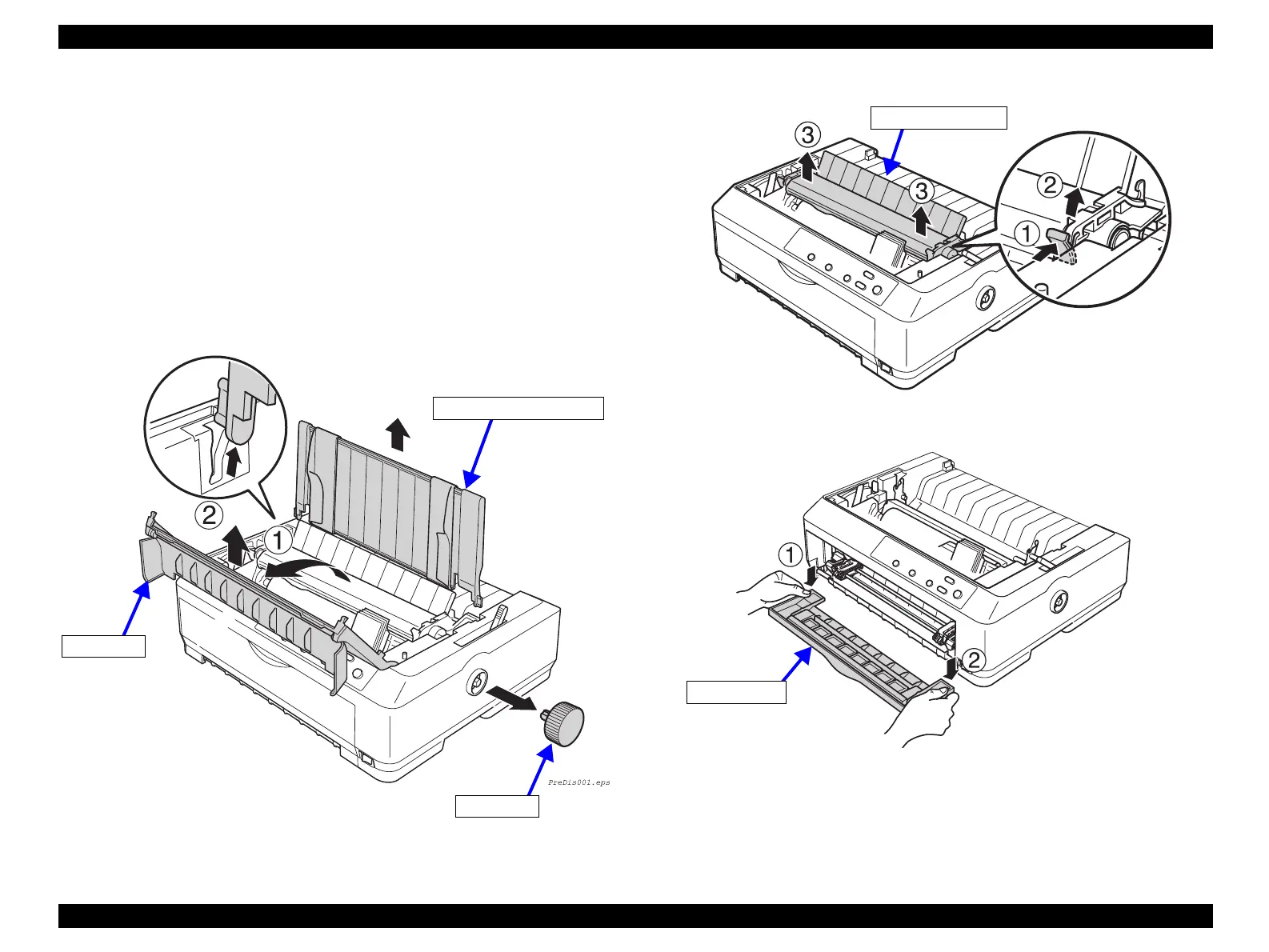

Figure 4-2. Pre-Disassembly
Figure 4-3. Paper Eject Cover Removal
Figure 4-4. Front Cover Removal
Paper Guide Assembly
Knob
Top cover
Paper Eject Cover
Front Cover
