EPSON FX-890/2190 Revision B
Disassembly and Assembly Printer Mechanism Disassembly 80
4.3.4 Printer Mechanism
1. Perform Pre-Disassembly. (p.70)
2. Remove the Upper Housing. (p.72)
3. Remove the shield cover.(See Figure 4-8)
4. Disconnect all the connectors connected to the C524MAIN board.
(See Figure 4-9)
5. Remove the 2 CBP (M3x8) screws securing the MOUNT HOUSING to the lower
housing, and remove the MOUNT HOUSING. (See Figure 4-16)
6. Remove the 4 CBB (W13, M3x14) screws, and remove the Printer Mechanism by
lifting it up.

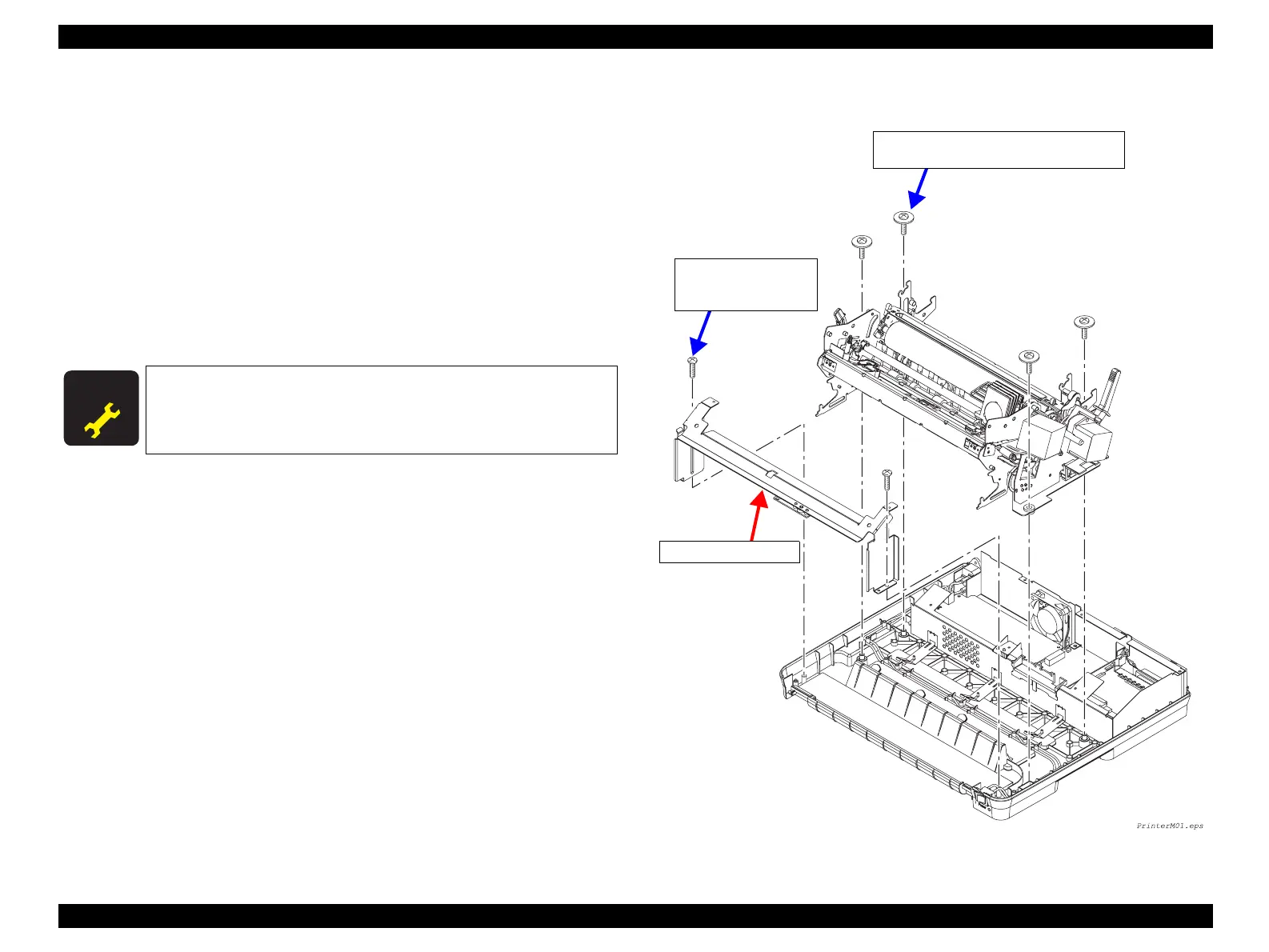

Figure 4-16. Printer Mechanism Removal 1
A D J U S T M E N T
R E Q U I R E D
After installing the Printer Mechanism, make the following
adjustment:
• Bi-d Adjustment (p.101)
CBB (W13, M3x14) Screws x4
Tightening Torque: 1.1±0.1N.m
CBP Screws (3x8) x2
Tightening Torque
: 1.1±0.1N.m
MOUNT, HOUSING

Epson FX-2190 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Color	No
Character pitch	10 cpi
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	136
Print technology	Dot matrix
Dimensions (WxDxH)	589 x 360 x 157 mm
Standard interfaces	Parallel, USB 1.1
Optional connectivity	Ethernet
Country of origin	Indonesia
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (typical)	53 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2040 mm
Quantity per pallet	14 pc(s)
Quantity per pallet (UK)	21 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	3 pc(s)
Package depth	700 mm
Package width	460 mm
Package height	270 mm
Package weight	11740 g
Quantity per pack	1 pc(s)
