Epson FX-2190 Service Manual

EPSON FX-890/2190 Revision B
Operating Principles Overview 50
2.1.2.2 C524 PSB/PSE/PSH Power Supply Circuit
This printer can be powered by one of the following three power supply boards: the
C524PSB (120 V) board, the C524PSE (230 V) board, or the C524PSH (Universal)
board. The function of the boards is the same, except for a difference in the primary
circuitry. The power supply outputs the DC current necessary to drive the printer
control circuit and drive the mechanism.
CIRCUIT CONSTITUTION

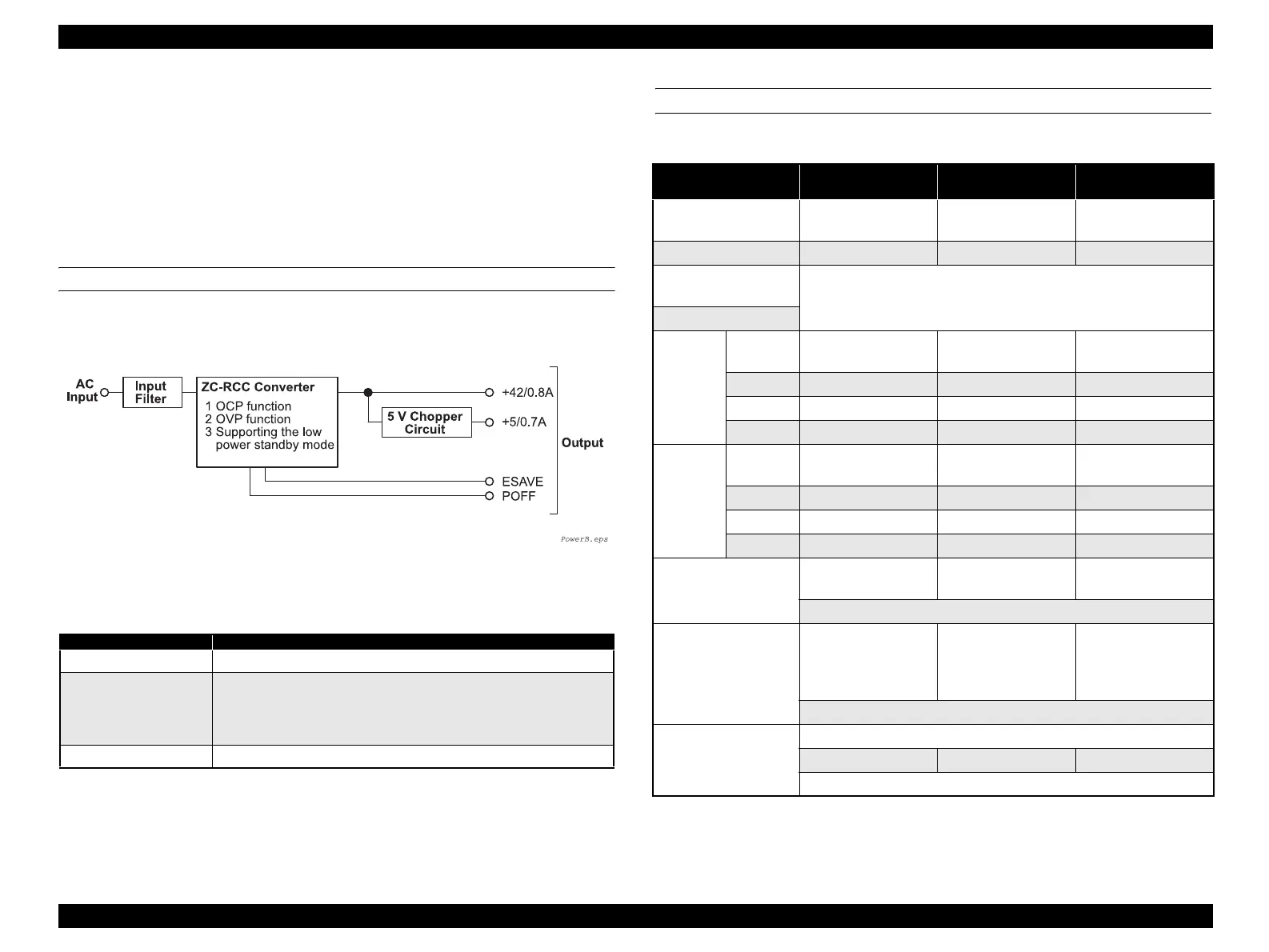

Figure 2-6 below shows the block diagram of this power supply circuit.
Figure 2-6. Power Supply Circuit Block Diagram
INPUT SPECIFICATIONS
Table 2-3. Circuit Constitution
Block Description
Input Filter
 Inrush current preventive circuit with a power thermistor
ZC-RCC Converter
 42 V zero cross RCC of high performance
 Constant-voltage detecting circuit of Tr+ZD type
 Low power standby mode function by the ESAVE signal is
supported
+5 V Circuit
 Chopper circuit with a MOSFET discrete structure
Table 2-4. Input Specifications
Power Supply Unit
Name
C524 PSB
(100-120V Spec)
C524 PSE
(220-240V Spec)
C524 PSH
(100-240V Spec)
Rated input power
voltage
100-120 VAC 220-240 VAC 100-240 VAC
Input voltage range 85-138 VAC 187-276 VAC 85-276 VAC
Rated input power
frequency
50-60 Hz
47-63 Hz
Input frequency range
Input
current
(Only for
reference
*
1
)
(100 V / 120 V, 60 Hz) (220 V / 240 V, 50 Hz)
(100 V, 60 Hz
/240 V, 50 Hz)
Min. load 0.05 A / 0.05 A 0.05 A / 0.04 A 0.08 A / 0.08 A
Rated load 0.78 A / 0.69 A 0.41 A / 0.39 A 0.78 A / 0.42 A
Max. load 2.30 A / 1.96 A 1.18 A / 1.10 A 2.34 A / 1.18 A
Input
power
(Only for
reference
*
1
)
(100 V/120 V, 60 Hz) (220 V/240 V, 50 Hz)
(100 V, 60 Hz
/240 V, 50 Hz)
Min. load 2.1 W / 2.3 W 2.2 W / 1.6 W 3.6 W / 2.1 W
Rated load 45.5 W / 45.2 W 45.4 W / 45.4 W 47.1 W / 46.8 W
Max. load 153.3 W / 148.6 W 147.9 W / 146.7 W 159.7 W / 152.2 W
Inrush current
40 A (0-p) or less
(Input: 138 V/60 Hz)
40 A (0-p) or less
(Input: 276 V/50 Hz)
40 A (0-p) or less
(Input: 276 V/50 Hz)
(Ambient temperature: 25°C, At cold start)
Leak current
0.25 mA or less
(Input: 100 V / 50 Hz)
0.75 mA or less
(Input: 276 V / 60 Hz)
0.75 mA or less
(Input: 138 V / 60 Hz)
0.75 mA or less
(Input: 276 V / 60 Hz)
(Ambient temperature: 25°C)
Output holding time
43 ms or more
(Input: 85 V/47 Hz) (Input: 187 V/47 Hz) (Input: 85 V/47 Hz)
(Output: Rated load/Ambient temperature: 25
°C

Epson FX-2190 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Color	No
Character pitch	10 cpi
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	136
Print technology	Dot matrix
Dimensions (WxDxH)	589 x 360 x 157 mm
Standard interfaces	Parallel, USB 1.1
Optional connectivity	Ethernet
Country of origin	Indonesia
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (typical)	53 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2040 mm
Quantity per pallet	14 pc(s)
Quantity per pallet (UK)	21 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	3 pc(s)
Package depth	700 mm
Package width	460 mm
Package height	270 mm
Package weight	11740 g
Quantity per pack	1 pc(s)
