4.3.8 PG (Platen Gap) Detector
1. Remove the Printer Mechanism. (p.80)
2. Release the 2 clips attaching the PG detector to the LEFT FRAME in the Printer
Mechanism, and remove the detector. (See Figure 4-22)
3. Disconnect the harness from the detector.

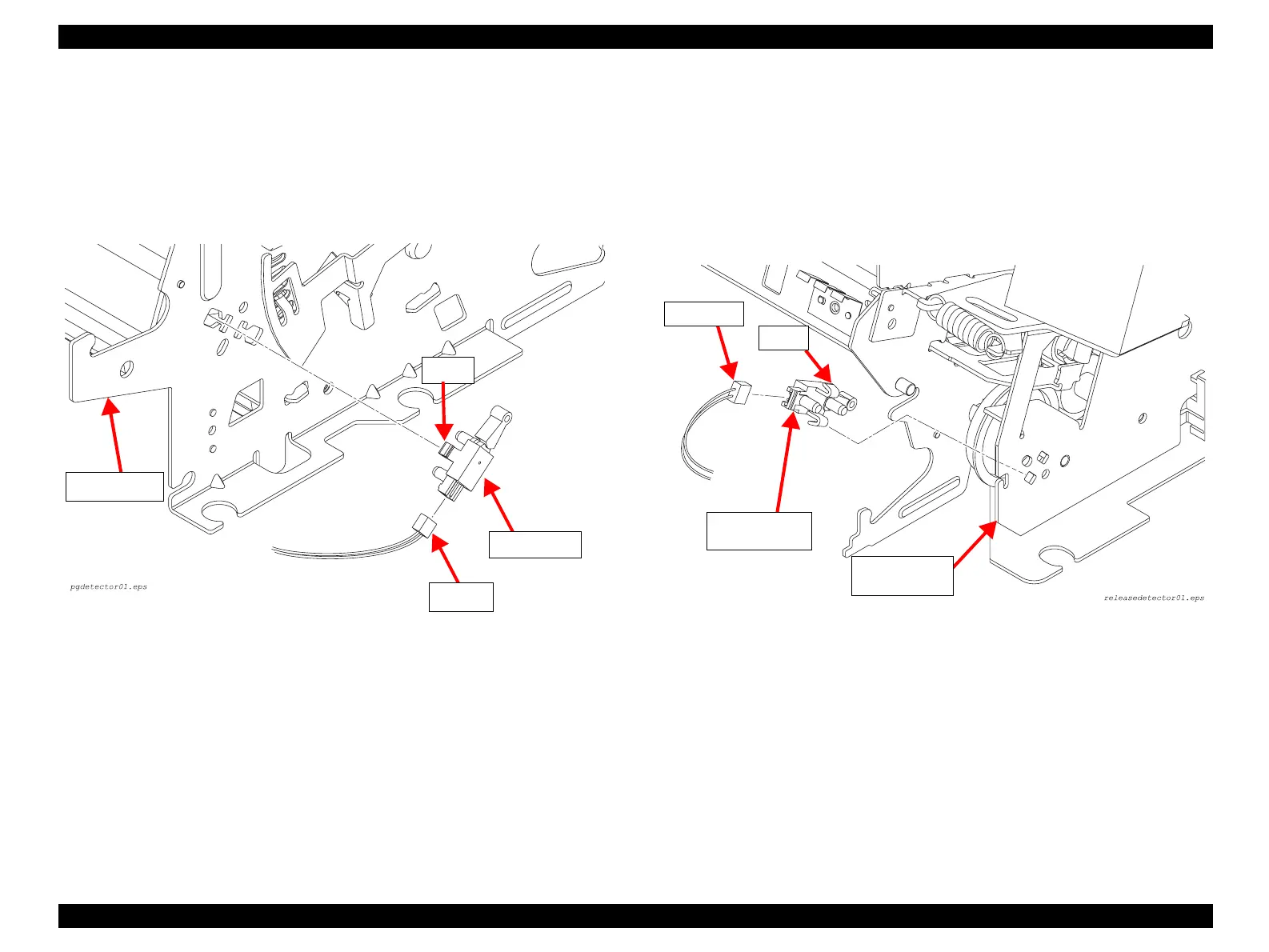

Figure 4-22. PG Detector Removal
4.3.9 Release Detector
1. Remove the Printer Mechanism. (p.80)
2. Release the 2 clips attaching the Release detector to the FRAME,SUB,RIGHT in
the Printer Mechanism, and remove the detector. (See Figure 4-23)
3. Disconnect the harness from the detector.
Figure 4-23. Release Detector Removal
Clips
PG Detector
LEFT FRAME
Harness
Release Lever
Detector
Clips
Harness
FRAME,SUB,
RIGHT
