EPSON FX-890/2190 Revision B
PRODUCT DESCRIPTIONS Operation 32
*2. Paper Out ( Red )
 The “Paper Out” LED is on when the printer is in the “paper out” status, and it
blinks when the printer has developed a paper eject error, and it is off when
the printer is not in such status.
 See *6 for LED indication when a locked switch is pressed.
*3. Tear Off / Bin (Green)
 Two LEDs display the status of CSF bin selection when cut sheet is used.
Both LEDs are off when Bin1 is selected, only the right LED is on when Bin2
is selected, and only the left LED is on when Card mode is selected.
 Both LEDs blink when continuous paper is in the Tear-off position and both
LEDs are off when continuous paper is out of the Tear-off position.
 Both LEDs are on when the printer is in default setting mode.

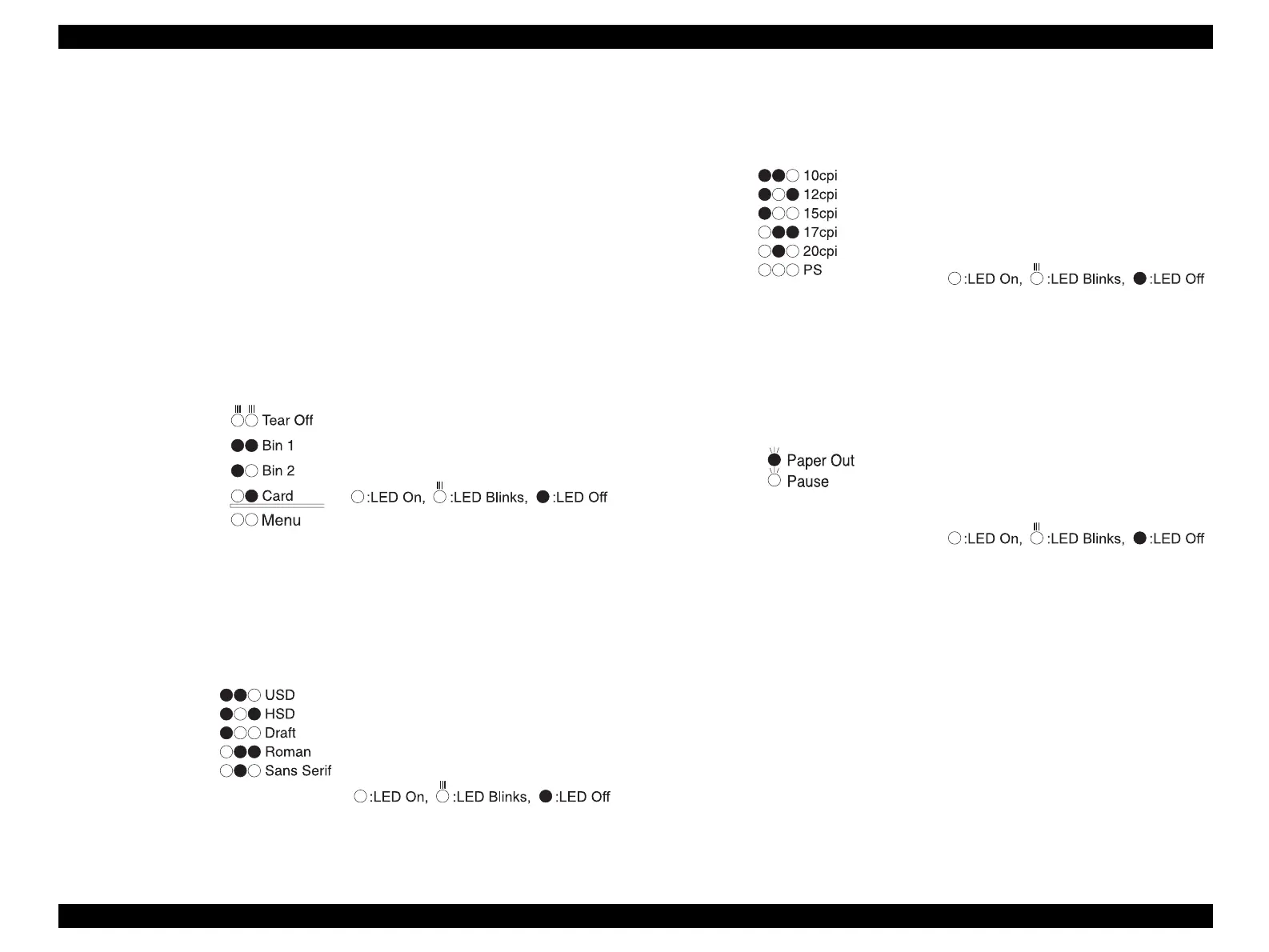

Figure 1-10. Tear Off/ Bin LEDs
*4. Font ( Green )
 Three LEDs indicate the status of Font & Draft Quality selection.
.
Figure 1-11. Font LEDs
*5. Pitch ( Green )
 Three LEDs display the status of Pitch selection.
Figure 1-12. Pitch LEDs
*6. LED indication when a locked switch is pressed (Green)
 With panel lock out mode “On”, when a locked switch is pushed, the “Pause”
LED and “Paper Out” LED flash simultaneously for three seconds or so.
Figure 1-13. LED indication when a locked switch is pressed
NOTE:At this time, buzzer does not sound.

Epson FX-2190 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Color	No
Character pitch	10 cpi
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	136
Print technology	Dot matrix
Dimensions (WxDxH)	589 x 360 x 157 mm
Standard interfaces	Parallel, USB 1.1
Optional connectivity	Ethernet
Country of origin	Indonesia
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (typical)	53 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2040 mm
Quantity per pallet	14 pc(s)
Quantity per pallet (UK)	21 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	3 pc(s)
Package depth	700 mm
Package width	460 mm
Package height	270 mm
Package weight	11740 g
Quantity per pack	1 pc(s)
