104

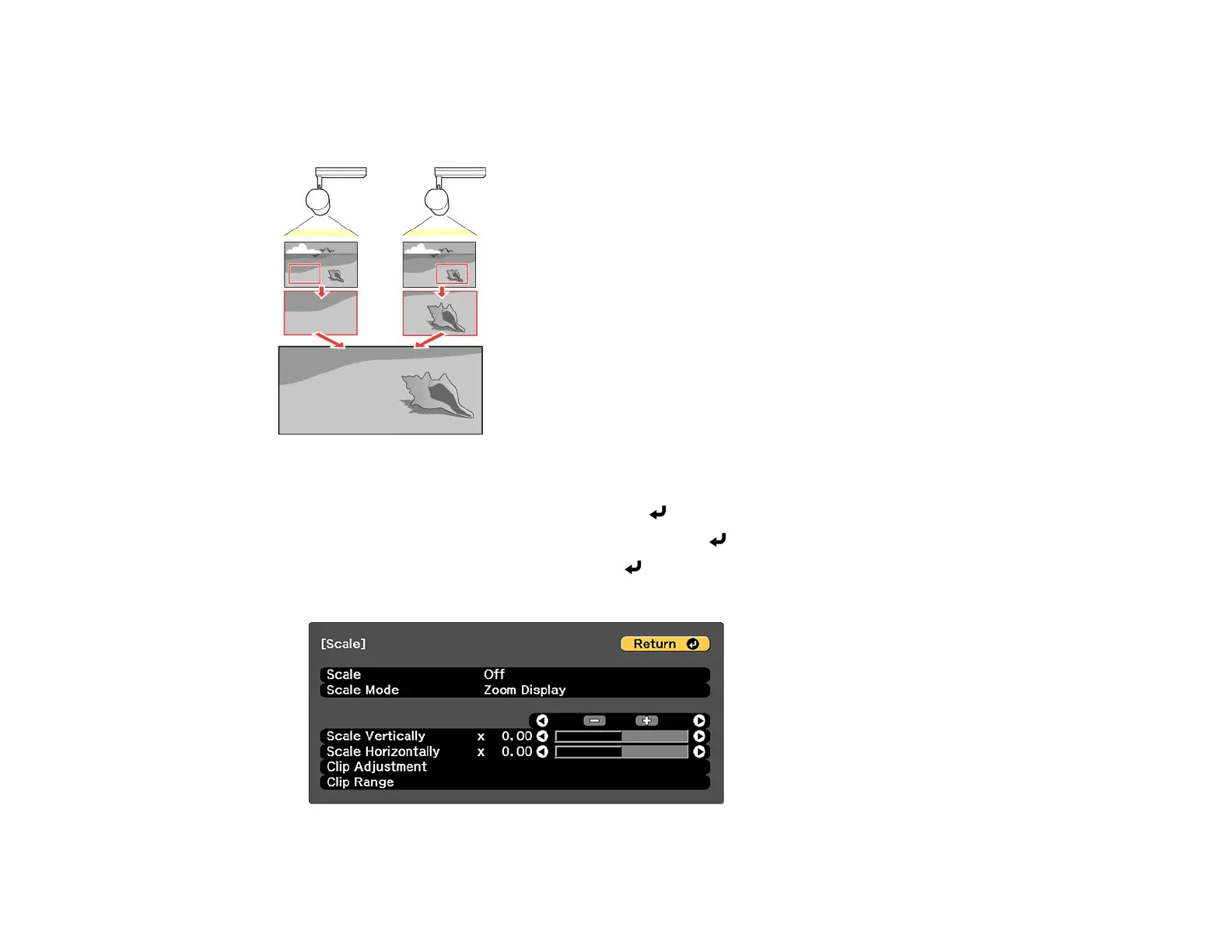

Scaling
an
You
can
project
the
same
from
multiple
projectors
and
use
the
Scale
feature
to
crop
and
combine
them
into
one
large
image.
1.
Press
the
Menu
button.
2.
Select
the
Extended
menu
and
press
Enter
(
).
3.
Select
the
Multi-Projection
setting
and
press
Enter
(
).
4.
Select
the
Scale
setting
and
press
Enter
(
).
You
see
this
screen:
103
105
Table of Contents
Table of Contents
3
Lightscene EV-100/105 User's Guide
9
Introduction to Your Projector
10
Projector Features
10
Product Box Contents
11
Additional Components
13
Optional Equipment and Replacement Parts
13
Warranty and Registration Information
14
Notations Used in the Documentation
14
Where to Go for Additional Information
15
Additional Projector Software and Manuals
15
Projector Part Locations
16
Projector Parts - Front
17
Projector Parts - Rear
18
Projector Parts - Interface Panel
19
Projector Parts - Top
20
Projector Parts - Remote Control
21
Setting up the Projector
23
Projector Placement
23
Projector Setup and Installation Options
23
Adjusting the Projection Angle
26
Projection Distance
28
Attaching and Removing the Cable Clips
29
Connecting to a Computer for HDMI Video and Audio
30
Connecting to an HDMI Video Source
31
Connecting to External Speakers
31
Inserting an SD Card
32
Installing Batteries in the Remote Control
33
Using the Projector on a Network
35
Wired Network Projection
35
Connecting to a Wired Network
35
Selecting Wired Network Settings
36
Wireless Network Projection
39
Selecting Wireless Network Settings Manually
40
Wireless LAN Menu Settings
43
Selecting Wireless Network Settings in Windows
45
Selecting Wireless Network Settings on Mac
46
Setting up Wireless Network Security
46
Using a QR Code to Connect a Mobile Device
47
Setting up Projector Network E-Mail Alerts
49
Network Projector E-Mail Alert Messages
50
Setting up Monitoring Using SNMP
51
Controlling a Networked Projector Using a Web Browser
52
Using Crestron Connected
55
Setting up Crestron Connected
55
Controlling a Networked Projector Using Crestron Connected
56
Art-Net Channel Definitions
58
Setting up Web API
62
Registering a Digital Certificate on the Projector
63
Importing a Web Server Certificate Using the Projector Menus
63
Registering Digital Certificates from a Web Browser
65
Digital Certificate Types
67
Using Basic Projector Features
69
Turning on the Projector
69
Turning off the Projector
71
Selecting the Language for the Projector Menus
72
Setting the Date and Time
73
Image Shape
74
Correcting Image Shape with H/V Keystone
74
Correcting Image Shape with Quick Corner
76
Focusing the Image Using the Focus Buttons
78
Zooming into and out of Images
79
Shutting off the Picture and Sound Temporarily
80
Remote Control Operation
80
Selecting an Image Source
81
Using Spotlight Mode
82
Selecting a Playlist on an SD Card
83
Overlay Effects and Shape Filters
86
Selecting a Shape Effect
87
Adjusting the Color of the Effect
88
Adjusting the Brightness of the Effect
89
Projection Modes
90
Changing the Projection Mode Using the Remote Control
90
Changing the Projection Mode Using the Menus
91
Turning on Automatic Luminance Adjustment
92
Image Aspect Ratio
93
Changing the Image Aspect Ratio
93
Available Image Aspect Ratios
94
Color Mode
95
Changing the Color Mode
95
Available Color Modes
96
Controlling the Volume with the Volume Buttons
97
Adjusting Projector Features
98
Using Multiple Projectors
98
Projector Identification System for Multiple Projector Control
98
Setting the Projector ID
99
Setting the Remote Control ID
100
Adjusting the Projector's Brightness Level
100
Blending the Image Edges
102
Scaling an Image
104
Adjusting Color Uniformity
106
Matching the Image Colors
108
Projecting One Image Simultaneously (Synchronized Playback)
110
Selecting a Test Pattern Using the Remote Control
111
Selecting a Test Pattern Using the Menus
112
Scheduling Projector Events
112
Saving a Scheduled Event
113
Viewing Scheduled Events
113
Editing a Scheduled Event
114
Projector Security
115
Password Security Types
116
Setting a Password
116
Selecting Password Security Types
117
Entering a Password to Use the Projector
118
Saving a User's Logo Image to Display
119
Copying Menu Settings between Projectors
122
Saving Settings to an SD Card
122
Transferring Settings from an SD Card
124
Adjusting the Menu Settings
126
Using the Projector's Menus
126
Image Quality Settings - Image Menu
128
Input Signal Settings - Signal Menu
130
Projector Feature Settings - Settings Menu
131
Projector Setup Settings - Extended Menu
134
Projector Network Settings - Network Menu
138
Projector Information Display - Info Menu
140
Event ID Code List
141
Projector Reset Options - Reset Menu
143
Maintaining and Transporting the Projector
145
Projector Maintenance
145
Cleaning the Lens
145
Cleaning the Projector Case
146
Cleaning the Air Vents
146
Replacing the Remote Control Batteries
147
Transporting the Projector
149
Solving Problems
150
Projection Problem Tips
150
Projector Light Status
151
Solving Image or Sound Problems
154
Solutions When no Image Appears
154
Solutions When "No Signal" Message Appears
155
Displaying from a PC Laptop
156
Displaying from a Mac Laptop
156
Solutions When "Not Supported" Message Appears
156
Solutions When Only a Partial Image Appears
157
Solutions When a Playlist Does Not Play
157
Solutions When the Image Contains Noise or Static
158
Solutions When the Image Is Fuzzy or Blurry
158
Solutions When the Image Brightness or Colors Are Incorrect
159
Solutions to Sound Problems
160
Solving Projector or Remote Control Operation Problems
160
Solutions to Projector Power or Shut-Off Problems
161
Solutions to Problems with the Remote Control
161
Solutions When a Battery Message Appears
162
Solutions to Password Problems
162
Solving Network Problems
163
Solutions When Wireless Authentication Fails
163
Solutions When You Cannot Access the Projector through the Web
163
Solutions When You Cannot Access the SD Card through the Web
164
Solutions When Network Alert E-Mails Are Not Received
164
Solutions When the Image Contains Static During Network Projection
165
Where to Get Help
165
Technical Specifications
167
General Projector Specifications
167
Projector Light Source Specifications
168
Remote Control Specifications
169
Projector Dimension Specifications
169
Projector Electrical Specifications
170
Projector Environmental Specifications
171
Projector Safety and Approvals Specifications
171
Supported Video Display Formats
171
Notices
173
Recycling
173
Important Safety Information
173
Laser Safety Information
173
Important Safety Instructions
176
Restriction of Use
179
List of Safety Symbols
179
FCC Compliance Statement
183
Binding Arbitration and Class Waiver
184
Trademarks
187
Copyright Notice
188
A Note Concerning Responsible Use of Copyrighted Materials
189
Copyright Attribution
189
