Disassembly and Assembly Disassembly and Assembly 84

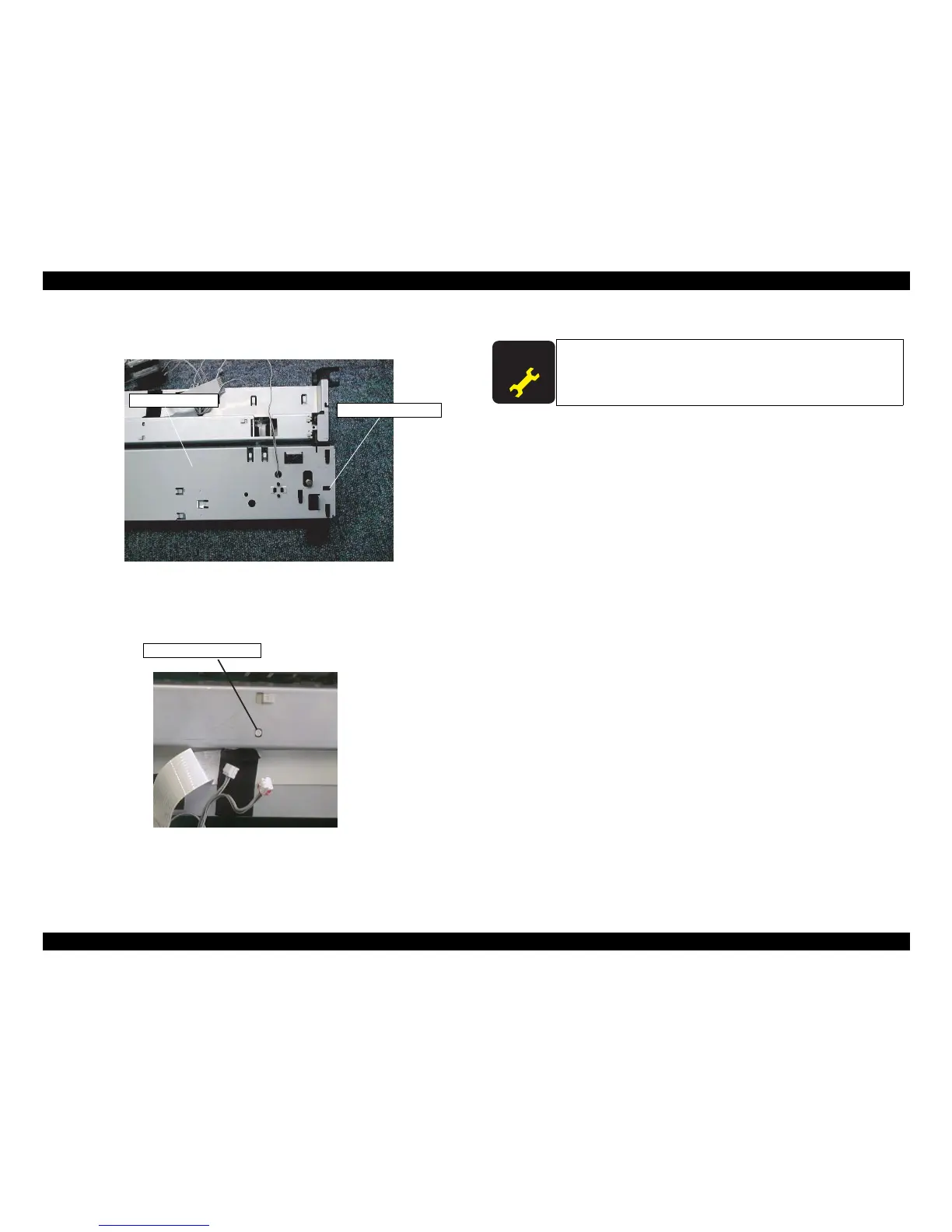

8. Release 1 hook at the left frame securing the base frame and remove it by pulling it to
the rear.
Figure4-27. Left Frame Removal
9. Release 1 hook securing the paper guide to the lower paper guide and remove the paper
guide along with the release shaft by pulling it to the left.
Figure4-28. Lower Paper Guide
Hook at the left frame
Base frame
Hook at the paper guide
A D J U S T M E N T
R E Q U I R E D
When the paper guide is removed or replaced, perform the platen
gap adjustment, Bi-D adjustment, top margin adjustment, and
bottom margin adjustment.
