EPSON LX-300+II/300+II RTP/1170II Revision D
Disassembly and Assembly Disassembly and Assembly 83
5. Remove the combination gear, 8.5, 25.2 from the right frame.

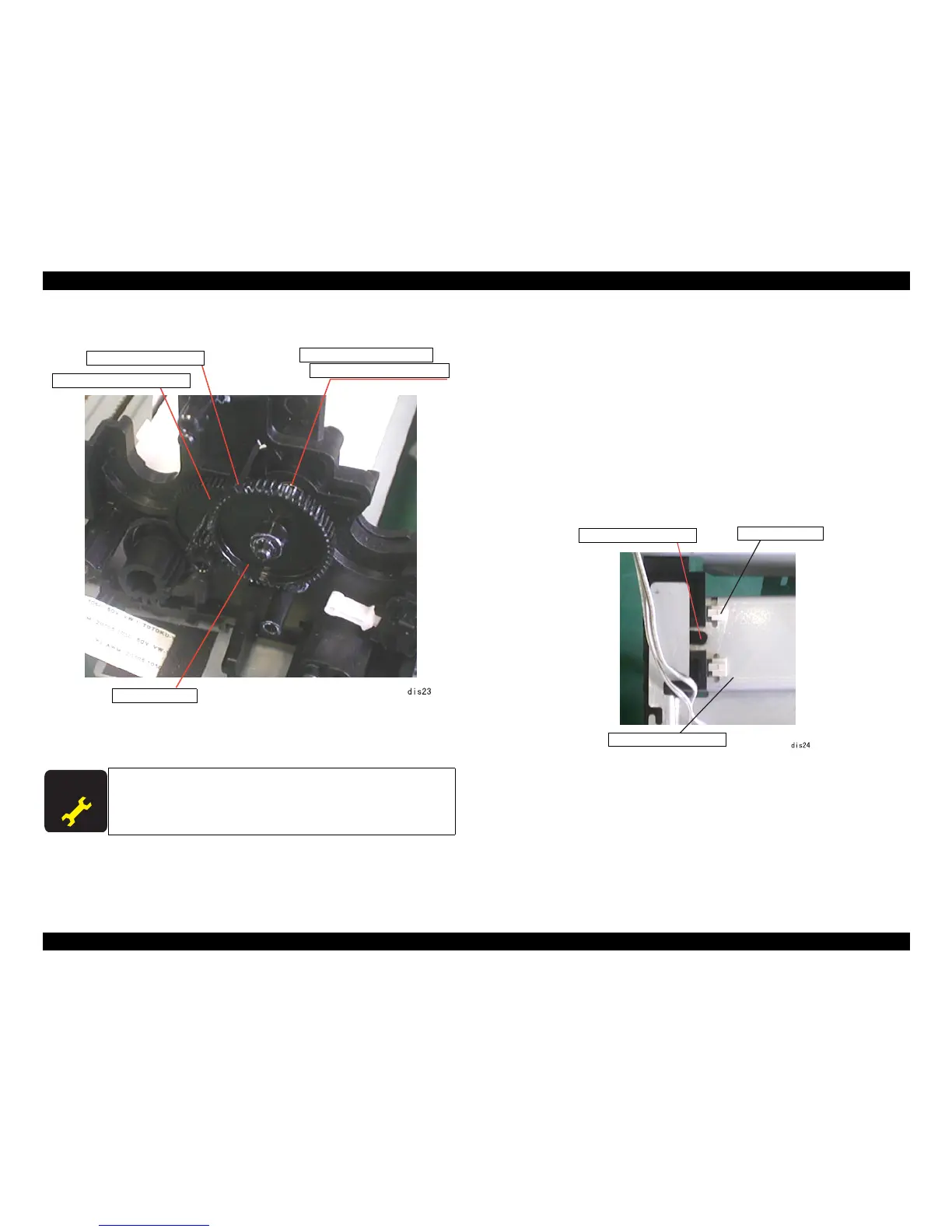

Figure4-25. Paper Feed Mechanism Disassembly
4.2.7.12 Paper Guide Removal
1. Remove the printer mechanism. (See 4.2.3 “Printer Mechanism Removal”.)
2. Remove the platen. (See 4.2.7.2 “Platen Mechanism Removal”.)
3. Remove the carriage unit. (See 4.2.7.3 “Carriage Mechanism Removal”.)
4. Remove the HP sensor. (See 4.2.7.7 “HP Sensor Removal”.)
5. Remove the PG sensor. (See 4.2.7.8 “PG Sensor Removal”.)
6. Remove the PF motor assembly and release lever. (See 4.2.7.10 “PF Motor Assembly
Removal”.)
7. Release 1 hook securing the paper guide to the bottom of the paper guide to the lower
paper guide, pull the paper guide to the rear and remove it.
Figure4-26. Lower Paper Guide Removal
A D J U S T M E N T
R E Q U I R E D
When the paper feed mechanism is removed or replaced, perform
the platen gap adjustment, Bi-D adjustment, top margin adjustment,
and bottom margin adjustment.
Hook at the right frame
Combination gear, 8.5, 25.2
Combination spring, 1.18
Plain washer, 5.2 x 0.3 x 10
Gear, 27.5
Hook at the left frame
Lower paper guide
Paper guide
