EPSON LX-300+II/300+II RTP/1170II Revision D
Maintenance Maintenance 95

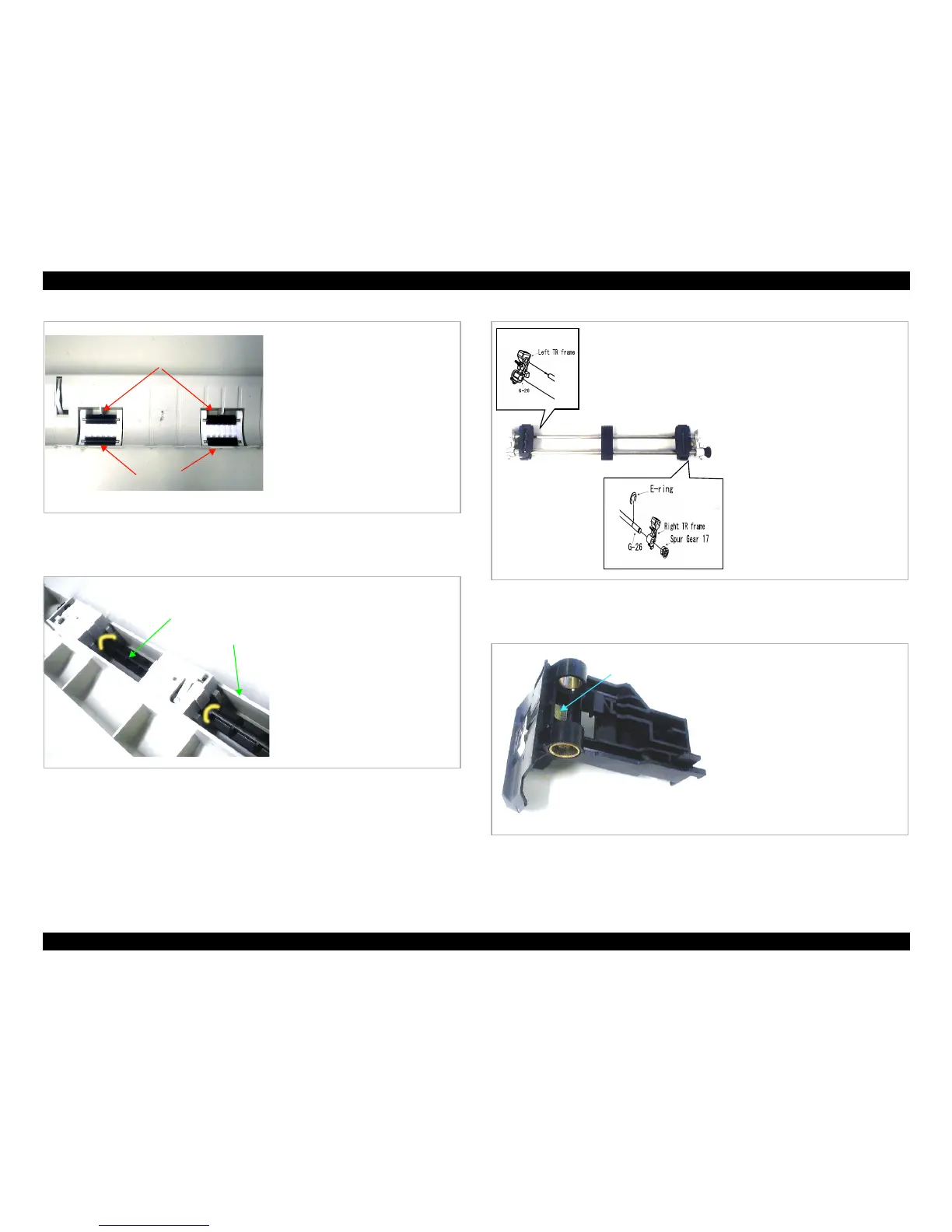

Figure 6-5. PF Roller Assembly
Figure 6-6. Paper Guide Assembly
Figure 6-7. Tractor Assembly
Figure 6-8. Oil Pad
Lubricate G-26 to the shaft of the drive
PF roller and the rear driven PF roller.
(4 places)
PF roller assembly:
G-26, 1/2 grain of rice
Drive PF roller
Rear driven PF roller
Set the paper guide assembly upside
down and lubricate at the touching part
of the PF roller assembly with the
release shaft. (4 places)
Paper guide assembly:
G-26, 1 grain of rice
Release shaft
Paper guide assy.
Lubricate G-26 into the hole of the right
TR (tractor) frame facing to the TR
guide shaft and the left TR frame.
Tractor assembly:
G-26, 1/2 grain of rice
The picture at the left is the back of the
printhead.
1. Set the oil dispenser 0.30ml.
2. Lubricate O-2 on the Oil pad.
Oil pad:
O-2, 0.28-0.32 cc
Note: Make sure that the setting of the oil
dispenser is correct.
Oil Pad
