Epson LX-810 Technical Manual

REV.-A
3. Loosen the two tabs securing the paper guide plate and spacer to the frame, and lift and remove
the plate.
Spacer

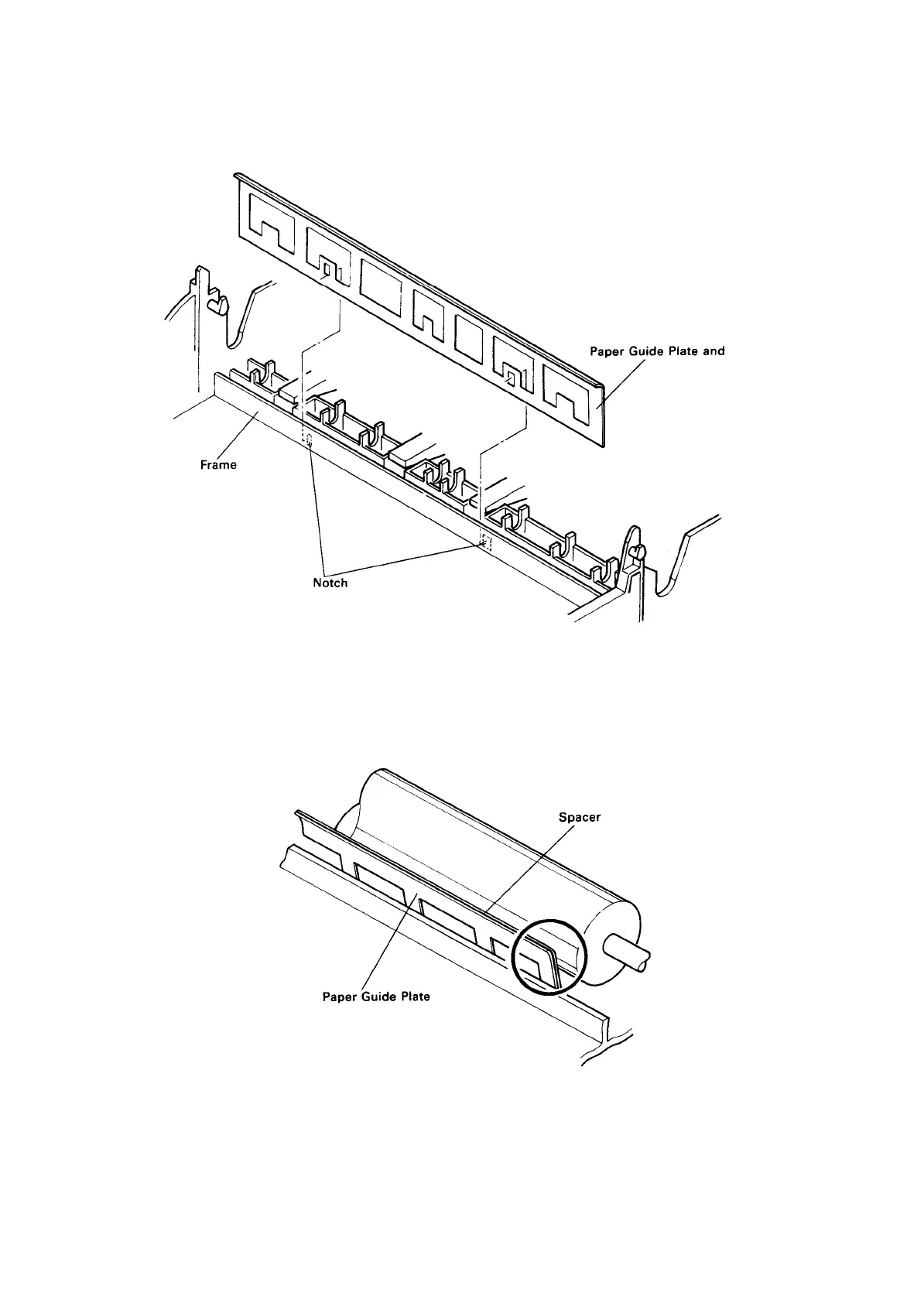

Figure 4-19. Removal of Paper Guide Plate
NOTES FOR REASSEMBLY
When remounting the paper guide plate and spacer to the frame, refer to Figure 4-20 for the mounting
direction.
Figure 4-20. Mounting Direction for Paper Guide Plate
4-15

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
