Epson LX-810 Technical Manual

REV.-A
4.2.5.9 Disassembly of The Tractor Unit
1. Remove the E-ring on the tractor shaft.
2. Pull and remove the tractor shaft from the tractor frame.
3. Pull and remove the sprocket guide shaft from the tractor frame.
T
Tractor Frame (L)
Q
Y ‘Am ‘?;cke’’uide
LLJ”
A
\
Tractor Shaft

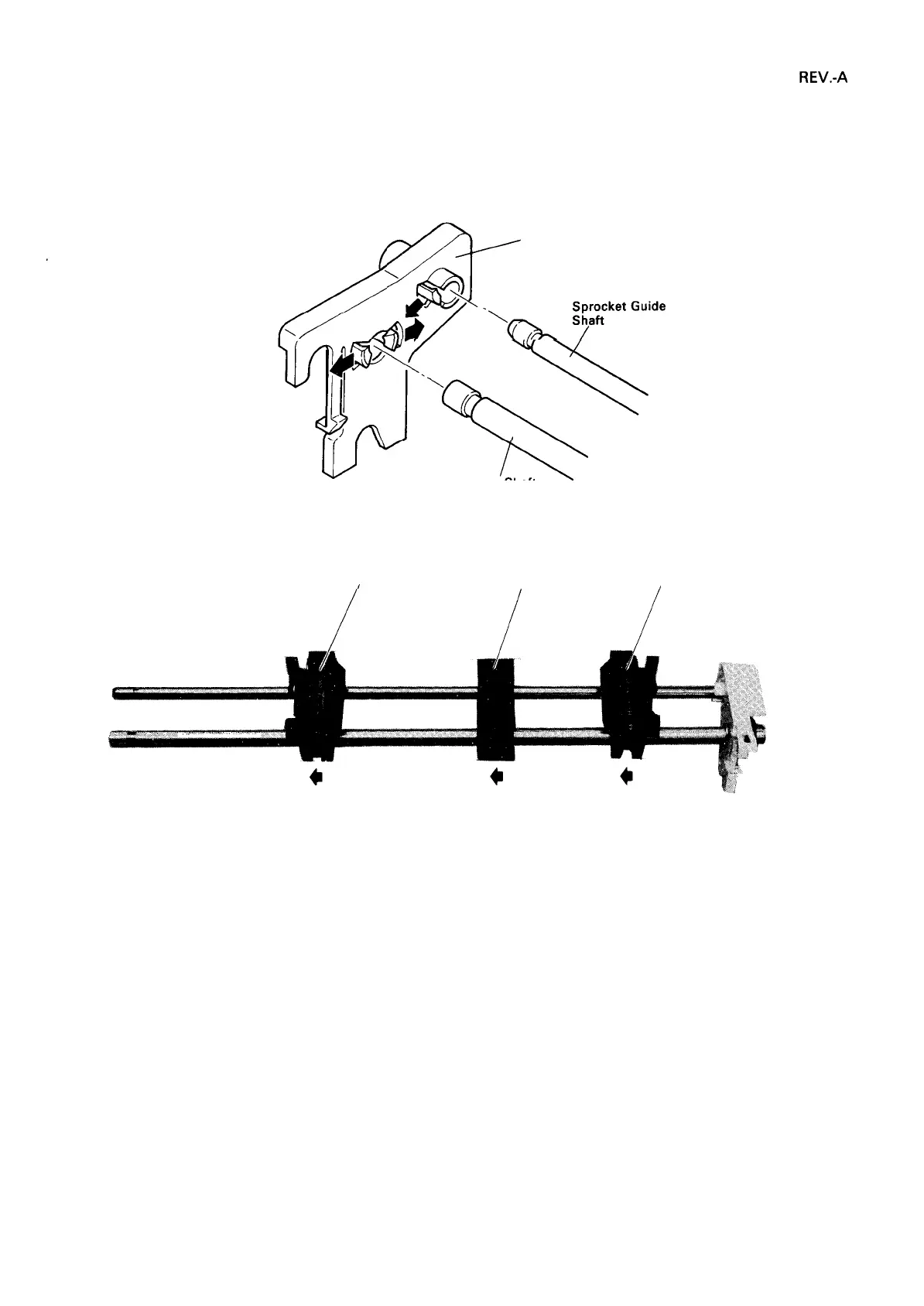

Figure 4-36. Removal of Tractor Frame L
4. Remove tractor set L, the paper support, and tractor set R from the tractor and sprocket guide shafts.
Tractor Set L
Paper Support
Tractor Set R
, . .
...
Figure 4-37. Extraction of Tractor Set L, Paper Support, and Tractor Set R
4-25

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
