Epson LX-810 Technical Manual

REV.-A
Push Tractor Feed Operation
When the push tractor unit is used, the paper is
set such that its holes mesh with the tractor pins along
the tractor belt. The paper feed motor is driven and, via the pinion on the motor shaft, rotates the gears
in the direction shown in Figure 2-39, rotating the tractor belts. This causes the paper advances in the
direction indicated by the arrow. When push tractor feeding is used, the pressure of the paper feed
rollers against the platen is released by moving the paper release lever to its forward setting.
/--
Paper (Continuous)
. .
,/’ ‘..
/
\
/
Paper Tension Roller
\
/“” “ ““L,
Push Tractor
K<::;*
‘3:, ‘
w y.;.~p
.
ff’ ~>TractOrReductiOn Gear’
fJJJf+’
o
e
.,.- # ‘
aPer
Feed Reduction Gear
;
c . >’*. “
$
, Paper Feed Motor Pinion Gear
. . . . ~
Paper Tension Roller Gear
Paper Tension
Roller Transmission Gear
Paper Feed Motor

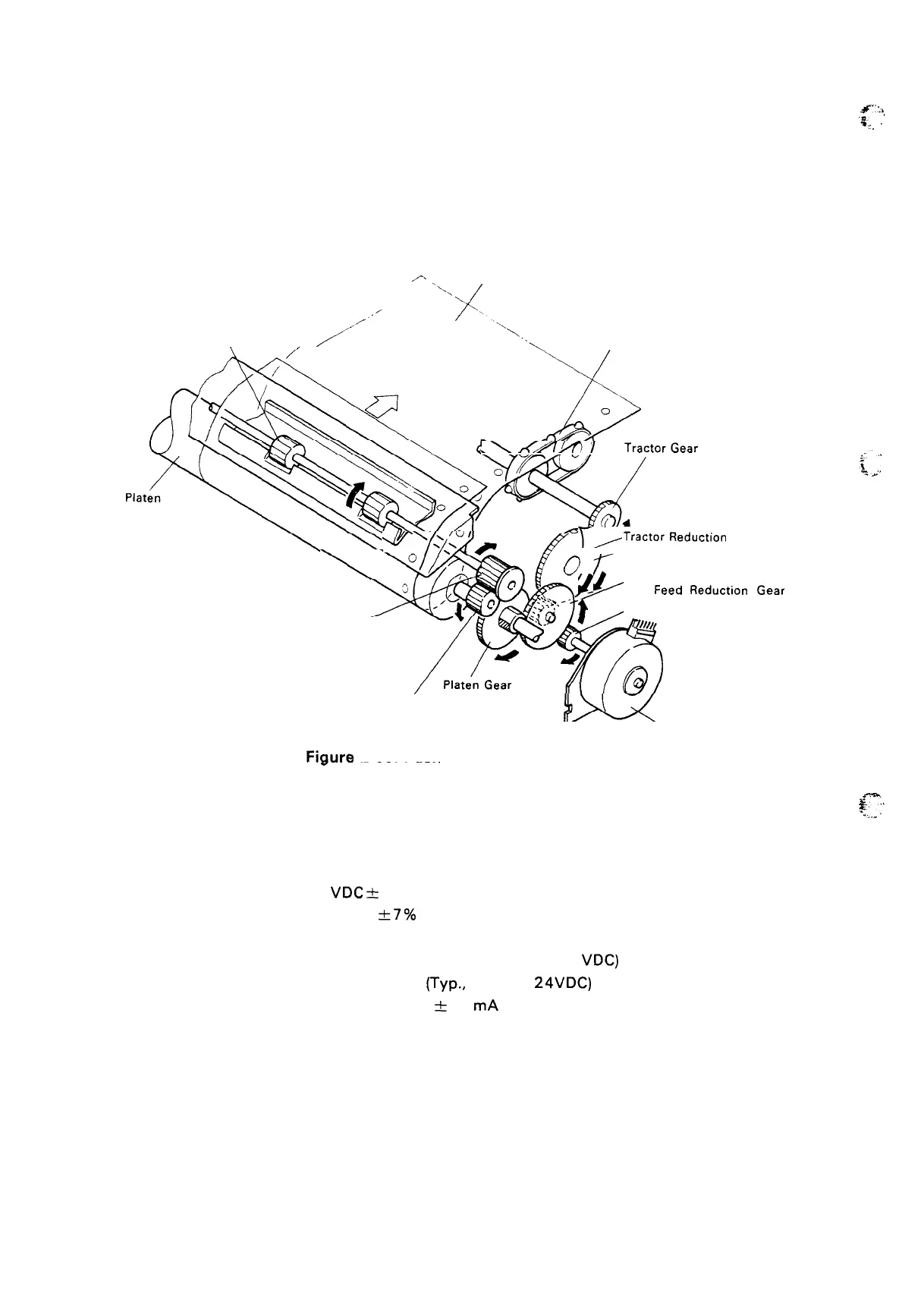

Fiaure 2-39. Push Tractor Feed Operation
2.2.4.2 Paper-Feed Motor Specifications
Paper-feed motor specifications
are as follows:
Type
4-phase, 48-pole step motor
Drive Voltage
24
VDC & 10%
Coil Resistance
40 ohms
~7Y0 at 25 degrees C
Phase Excitation
2-2 phase
Current
Maximum, 1.1 A (Rush Current, 26.4
VDC)
Driving: 0.30 A
(Typ., 480pps, 24VDC)
Holding: 0.06 A A 20 mA
Driving Frequency
480 PPS
2-36

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
