Epson LX-810 Technical Manual

REV.-A
4.2.5.7 Removal of Home-Position Sensor
p
..,:,
1. Remove the carriage motor frame. Follow Steps 1 to 3 of Section 4.2.5.6.
2. Push in the notch securing the home-position sensor, and remove the sensor from the carriage motor
frame.
Carriage Motor Frame
Home Position Sensor
\
/

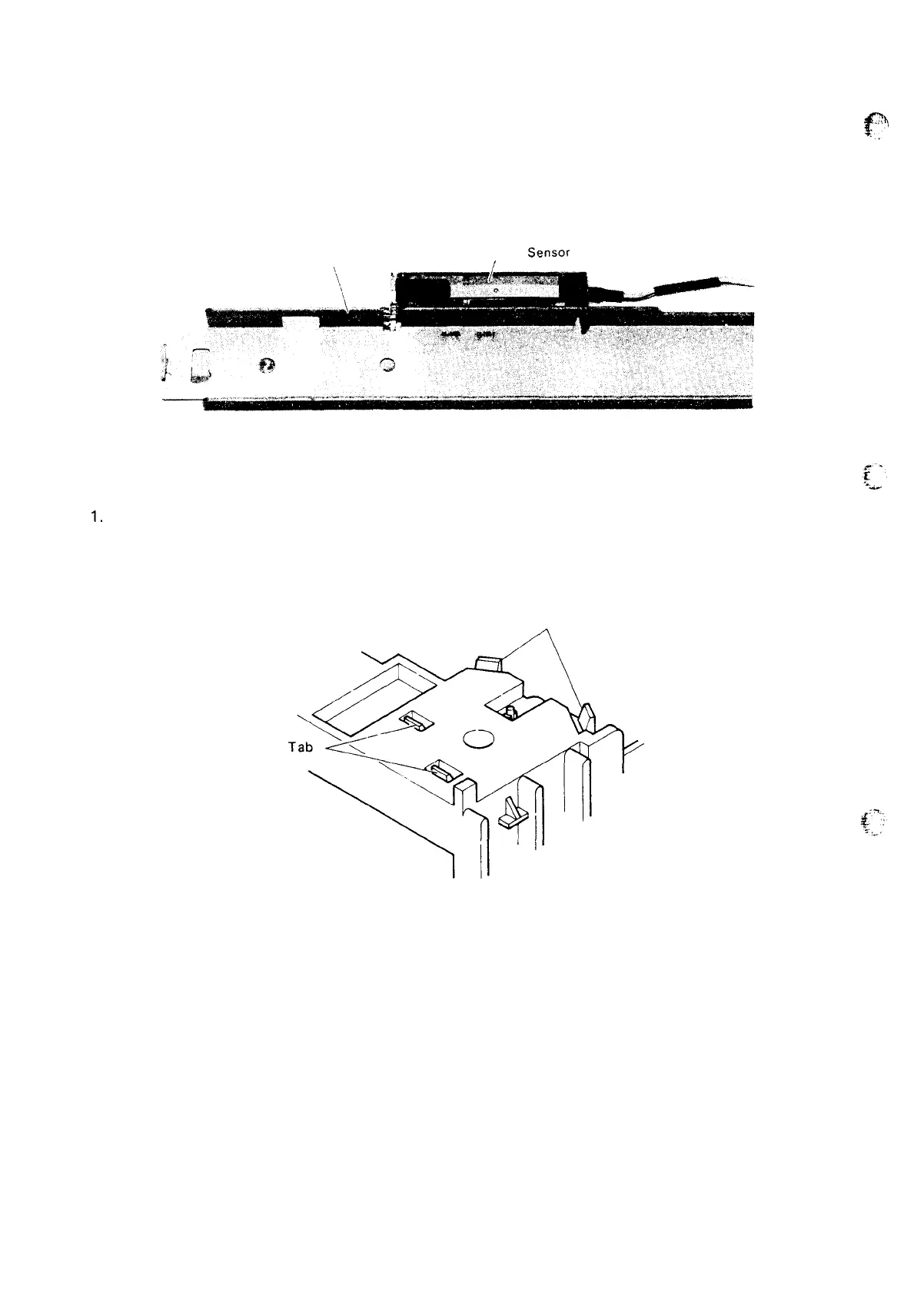

Figure 4-34. Removal of Home-Position Sensor
4.2.5.8 Disassembly of Ribbon-Feed Mechanism
1.
2.
3.
Remove the printer mechanism (refer to Section 4.2.4.2).
Turn the printer mechanism upside-down, and use a screwdriver to slightly loosen the four bent tabs
securing the ribbon gear cover. Only loosen the tabs slightly, and do not yet remove the cover. If
the cover is removed while the printer mechanism is upside-down, the gears will scatter.
Tab
(Bottom view of printer mechanism)
Figure 4-35. Removal of Ribbon Gear Cover
Turn the printer mechanism over so that it is again face up, then lift and remove the ribbon gear
cover.
4-24

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
