Epson LX-810 Technical Manual

REV.-A
NOTES FOR REASSEMBLY
When reassembling, align the phases as shown
below.
,4
/’
‘,, ’-,

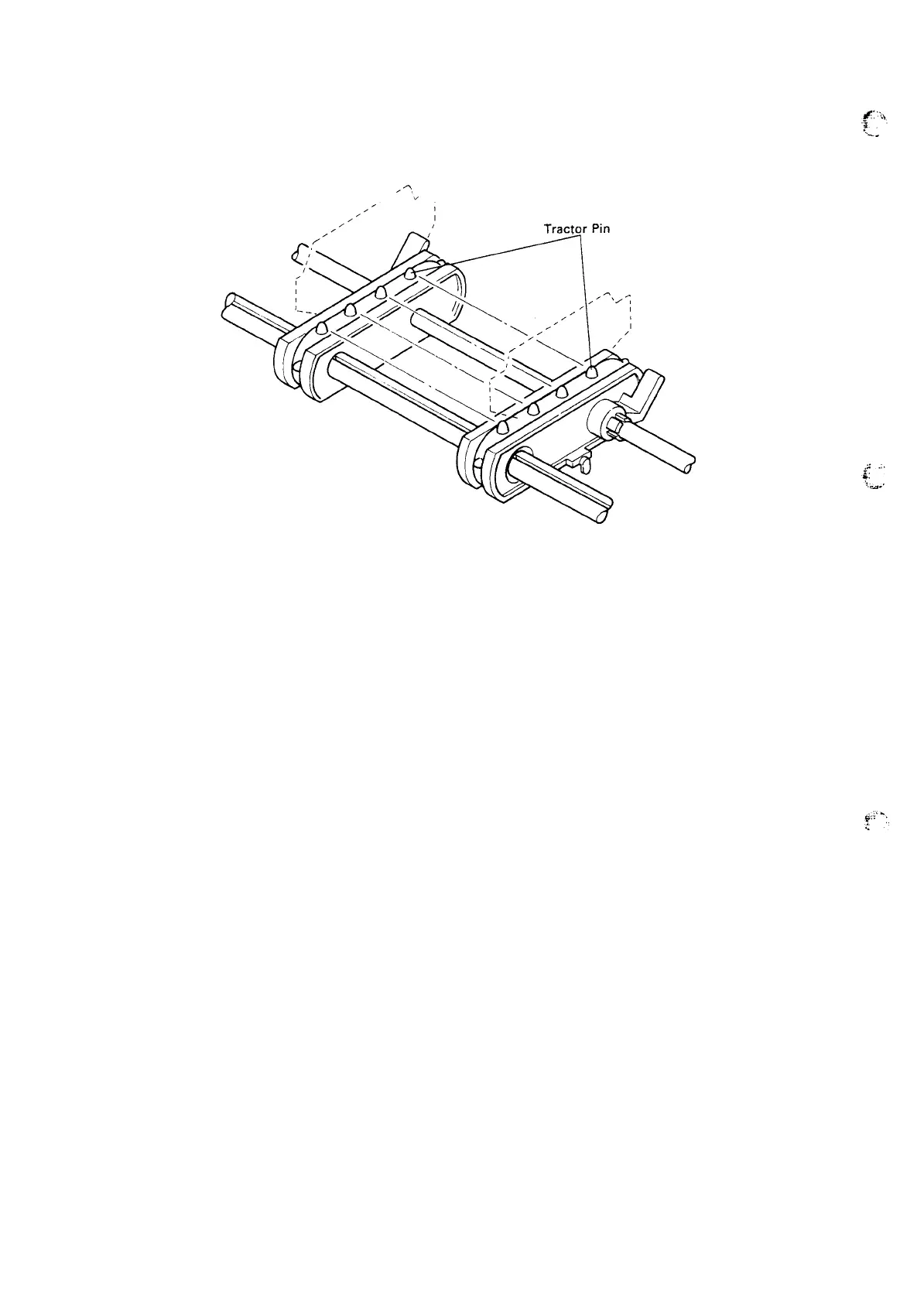

Figure 4-38. Tractor Phase Alignment
----
4-26

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
