Epson LX-810 Technical Manual

REV.-A
1.6.5 Housing
The LX-8 10/850 housing consists of the upper and lower cases. The upper case houses the control
panel. The lower case houses the printer mechanism and the main control board.

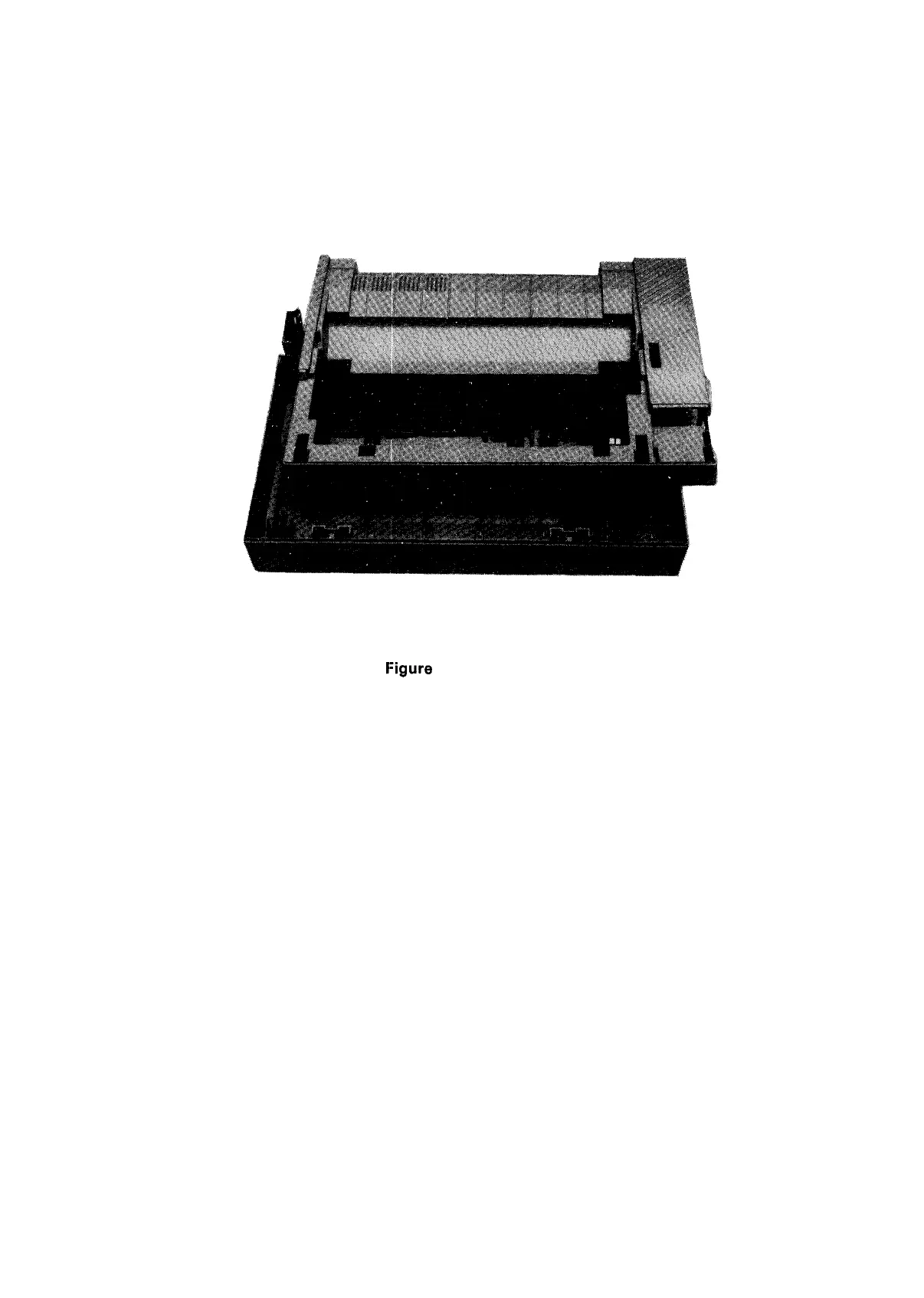

f:igure 1-15. Housing
1-25

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
