User-defined Characters
Design grids

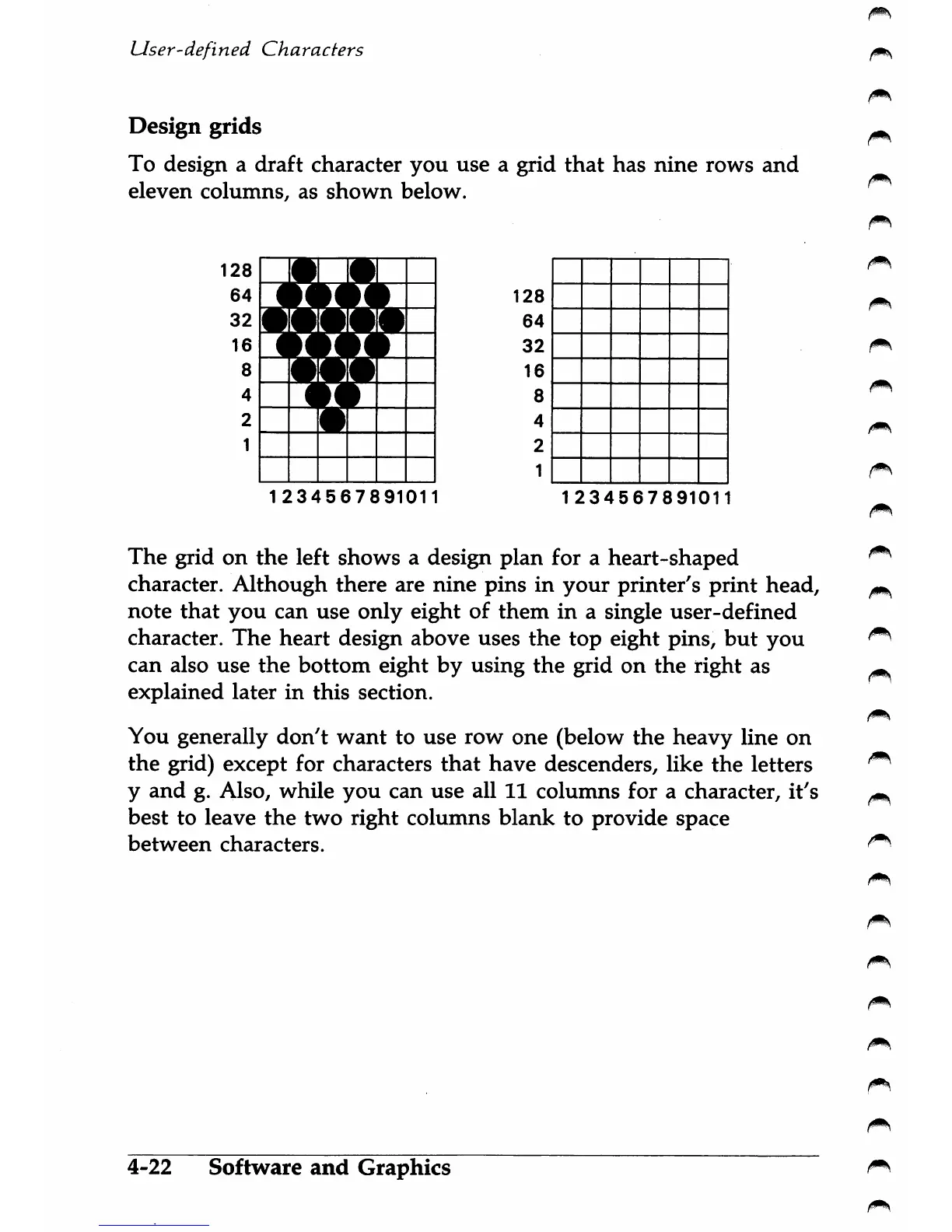

To design a draft character you use a grid that has nine rows and
eleven columns, as shown below.
128
64
32
16
8
[ ][ I ][ I ]■!
□
c
—
m
128
64
32
16
8
4
2
1
1 234567891011
1 234567891011
The grid on the left shows a design plan for a heart-shaped
character. Although there are nine pins in your printer's print head,
note that you can use only eight of them in a single user-defined
character. The heart design above uses the top eight pins, but you
can also use the bottom eight by using the grid on the right as
explained later in this section.
You generally don't want to use row one (below the heavy line on
the grid) except for characters that have descenders, like the letters
y and g. Also, while you can use all 11 columns for a character, it's
best to leave the two right columns blank to provide space
between characters.
101^
4-22 Software and Graphics

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
