Epson LX-810 User Manual

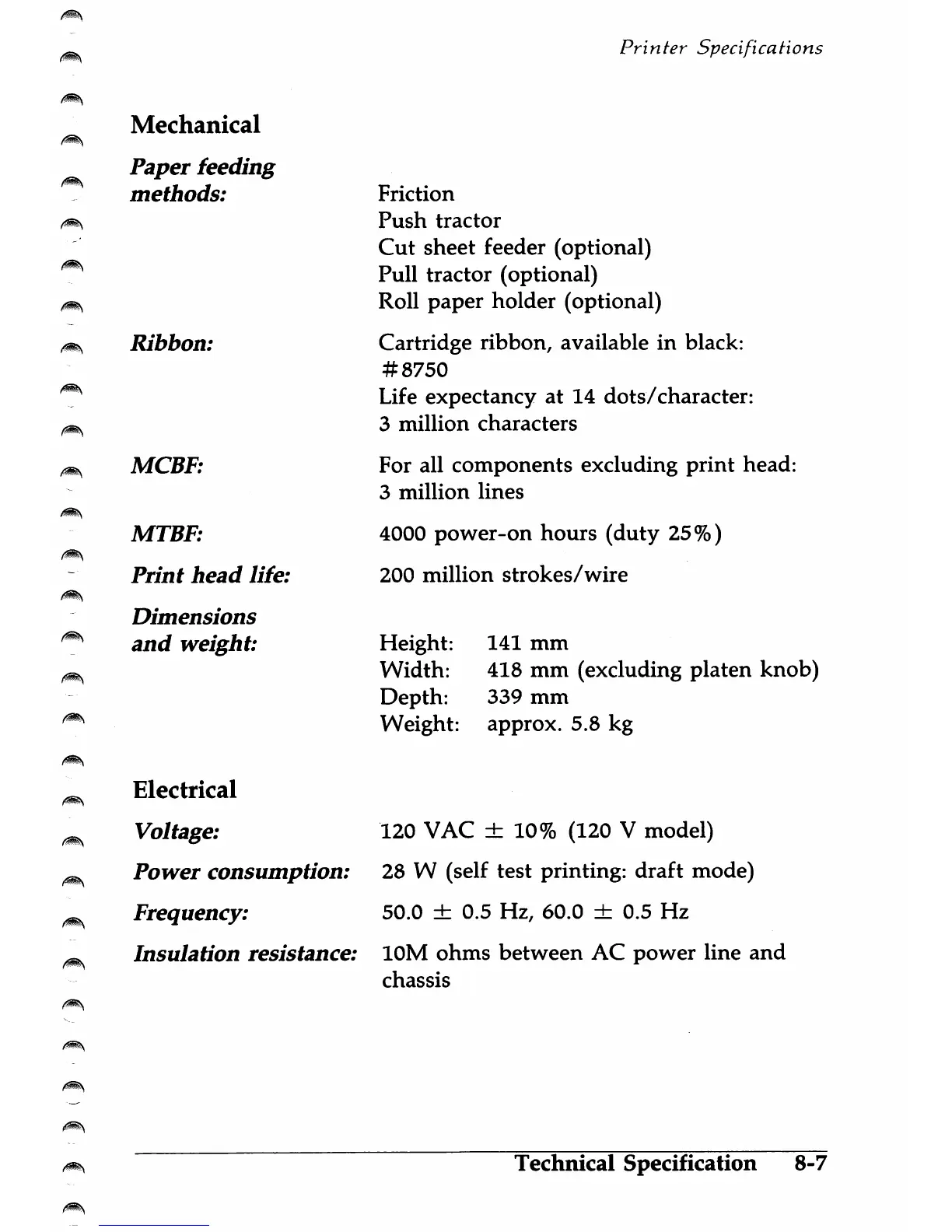

Printer Specifications
Mechanical
Paper feeding
methods:
Ribbon:
MCBF:
MTBF:
Print head life:
Dimensions
and weight:
Friction
Push tractor
Cut sheet feeder (optional)
Pull tractor (optional)
Roll paper holder (optional)
Cartridge ribbon, available in black:
#8750
Life expectancy at 14 dots/character:
3 million characters
For all components excluding print head:
3 million lines
4000 power-on hours (duty 25%)
200 million strokes/wire
Height: 141 mm
Width: 418 mm (excluding platen knob)
Depth: 339 mm
Weight: approx. 5.8 kg
Electrical
Voltage: 120 VAC ±10% (120 V model)
Power consumption: 28 W (self test printing: draft mode)
Frequency: 50.0 ± 0.5 Hz, 60.0 ± 0.5 Hz
Insulation resistance: lOM ohms between AC power line and
chassis
Technical Specification 8-7

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
