Epson LX-810 User Manual

Cut Sheet Feeder

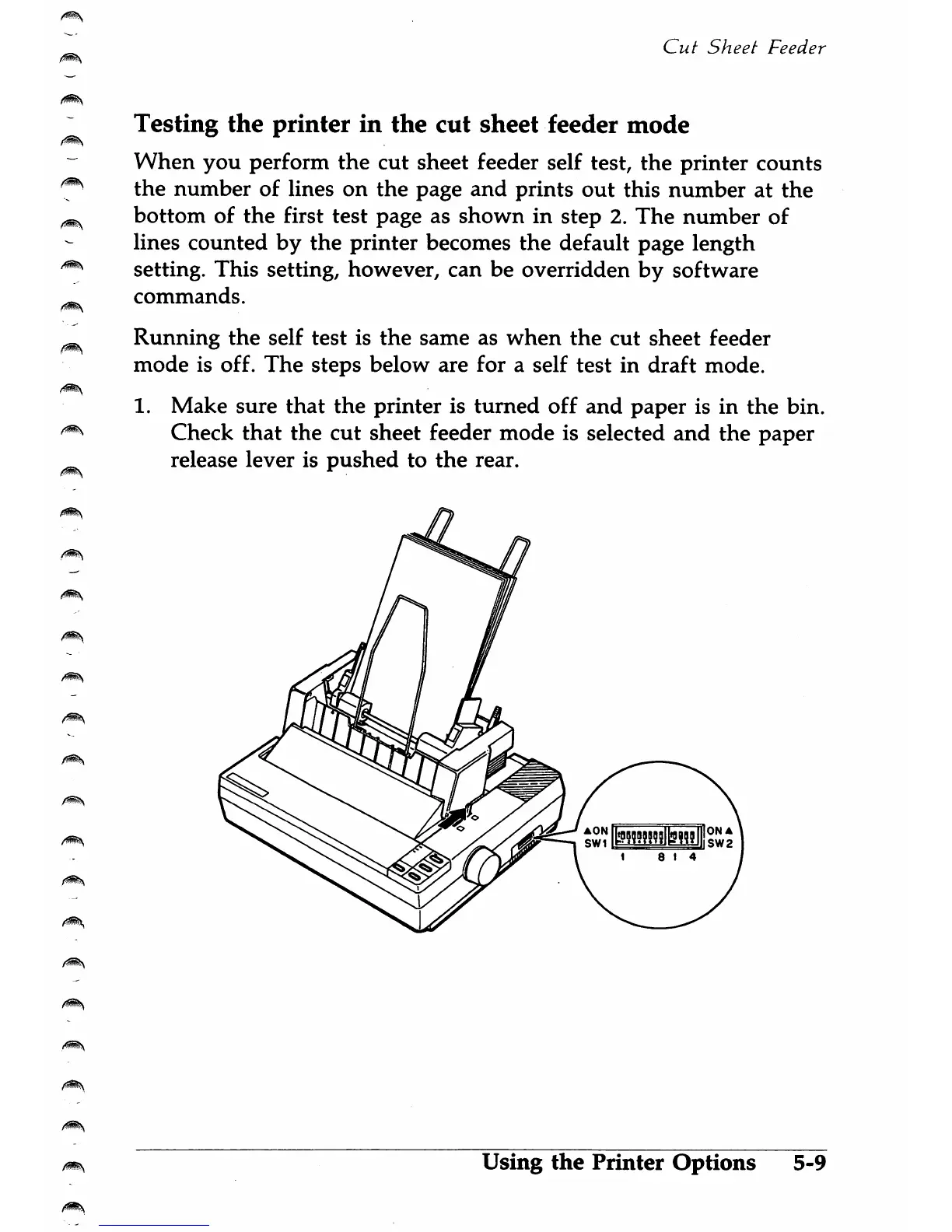

Testing the printer in the cut sheet feeder mode
When you perform the cut sheet feeder self test, the printer counts
the number of lines on the page and prints out this number at the
bottom of the first test page as shown in step 2. The number of
lines counted by the printer becomes the default page length
setting. This setting, however, can be overridden by software
commands.
Running the self test is the same as when the cut sheet feeder
mode is off. The steps below are for a self test in draft mode.
1. Make sure that the printer is turned off and paper is in the bin.
Check that the cut sheet feeder mode is selected and the paper
release lever is pushed to the rear.
Using the Printer Options 5-9

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
