Epson LX-810 User Manual

Setting the DIP Switches

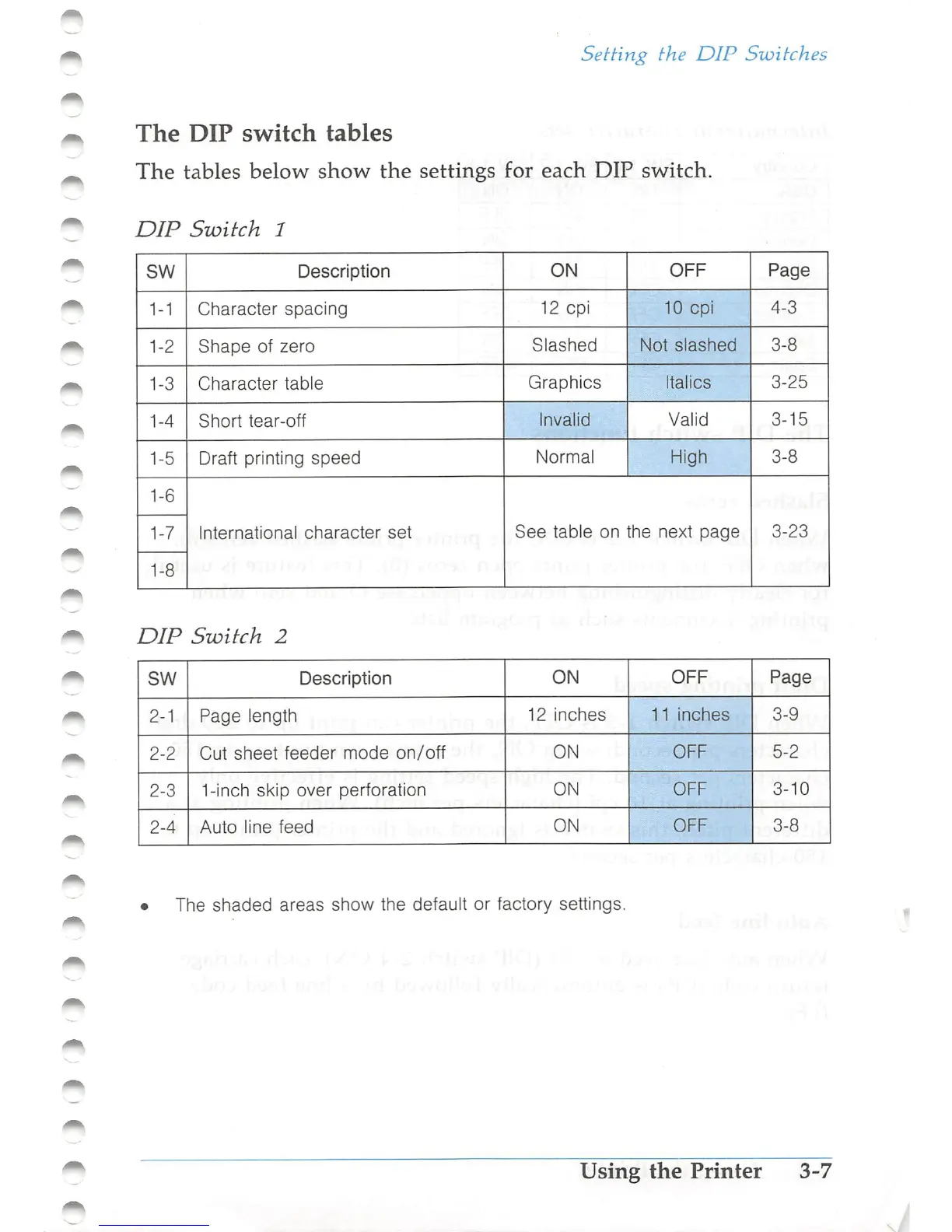

The DIP switch tables
The tables below show the settings for each DIP switch.
DIP Switch 1
sw
Description
ON
OFF Page
1-1
Character spacing
12 cpi 10 cpi
4-3
1-2
Shape of zero
Slashed
Not slashed 3-8
1-3
Character table
Graphics Italics
3-25
1-4 Short tear-off
Invalid
Valid 3-15
1-5
Draft printing speed
Normal
High 3-8
1-6
International character set
See table on the next page
3-23
1-7
1-8
DIP Switch 2
SW
Description
ON OFF Page
2-1
Page length
12 inches 11 inches
3-9
A
2-2 Cut sheet feeder mode on/off
ON OFF
5-2
A
2-3
1-inch skip over perforation
ON OFF 3-10
2-4 Auto line feed
ON
OFF
3-8
The shaded areas show the default or factory settings.
Using the Printer 3-7

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
