User-defined Characters

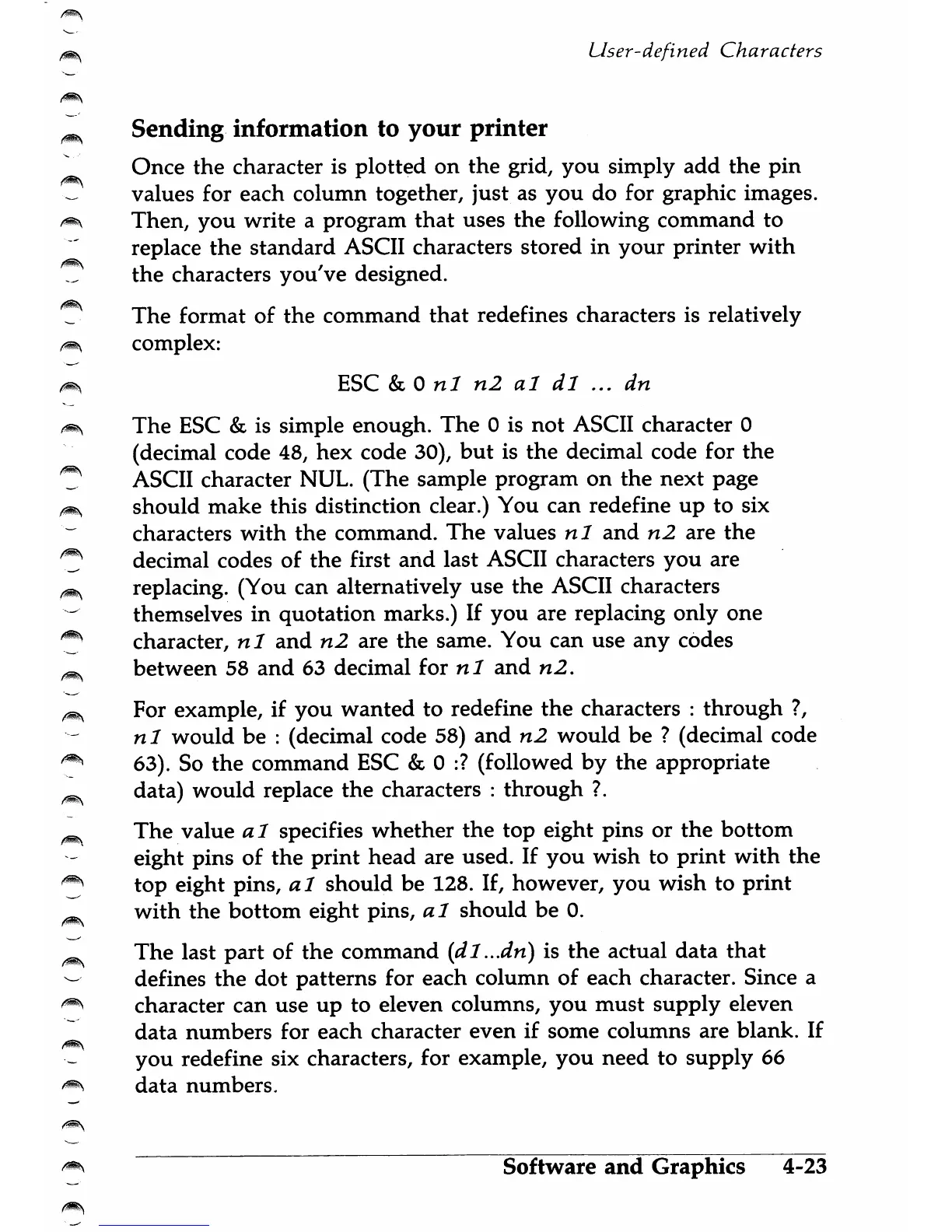

^ Sending information to your printer
Once the character is plotted on the grid, you simply add the pin
C values for each column together, just as you do for graphic images.
/<®\ Then, you write a program that uses the following command to
replace the standard ASCII characters stored in your printer with
the characters you've designed.
The format of the command that redefines characters is relatively
m, complex:
ESC & 0 nl n2 al dl ... dn
The ESC & is simple enough. The 0 is not ASCII character 0
(decimal code 48, hex code 30), but is the decimal code for the
ASCII character NUL. (The sample program on the next page
should make this distinction clear.) You can redefine up to six
characters with the command. The values nl and n2 are the
decimal codes of the first and last ASCII characters you are
replacing. (You can alternatively use the ASCII characters
themselves in quotation marks.) If you are replacing only one
character, nl and n2 are the same. You can use any codes
between 58 and 63 decimal for nl and n2.
For example, if you wanted to redefine the characters : through ?,
nl would be : (decimal code 58) and n2 would be ? (decimal code
63). So the command ESC & 0 :? (followed by the appropriate
data) would replace the characters : through ?.
The value al specifies whether the top eight pins or the bottom
eight pins of the print head are used. If you wish to print with the
top eight pins, al should be 128. If, however, you wish to print
with the bottom eight pins, al should be 0.
The last part of the command (dl...dn) is the actual data that
defines the dot patterns for each column of each character. Since a
character can use up to eleven columns, you must supply eleven
data numbers for each character even if some columns are blank. If
you redefine six characters, for example, you need to supply 66
data numbers.
^ Software and Graphics 4-23

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
