Epson LX-810 User Manual

Cut Sheet Feeder

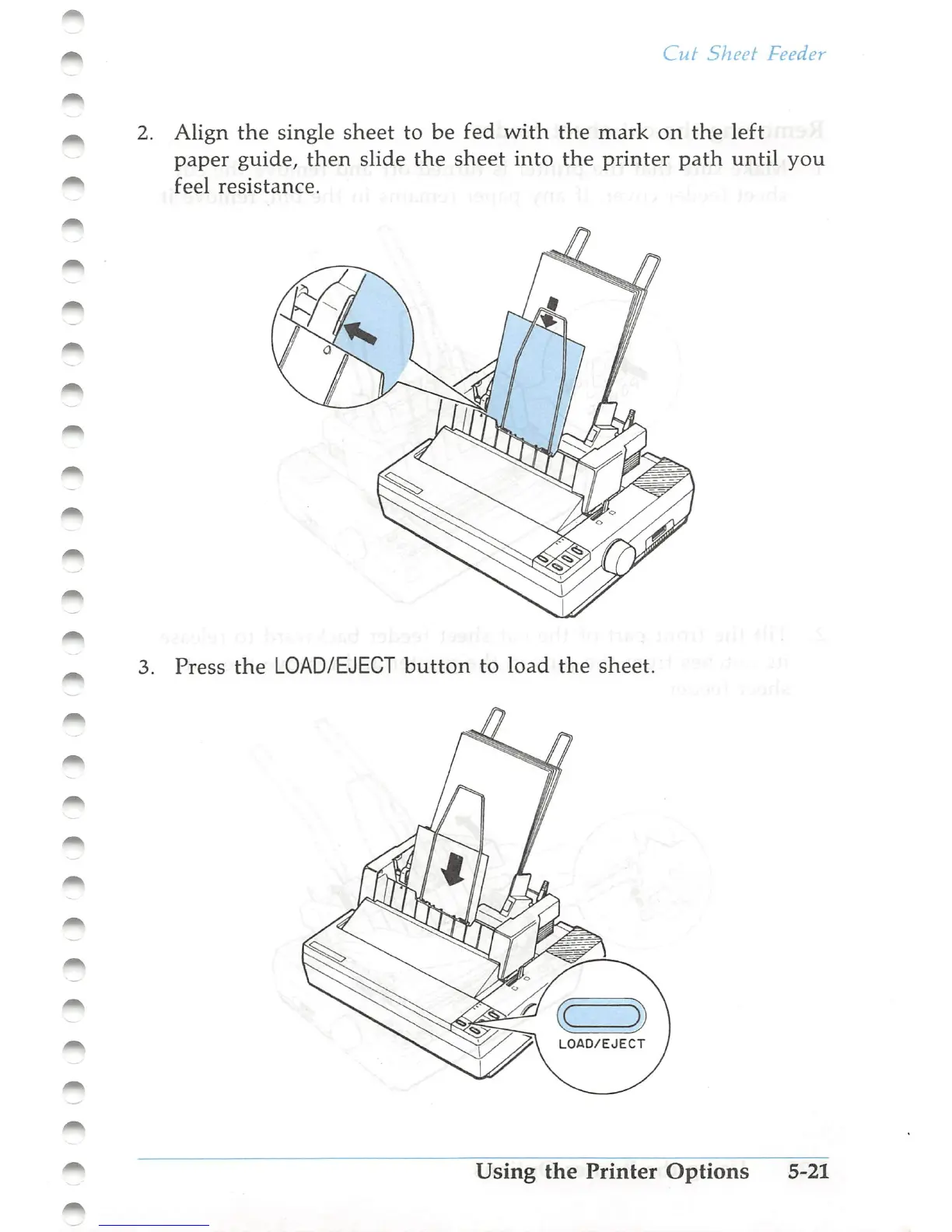

2. Align the single sheet to be fed with the mark on the left
paper guide, then slide the sheet into the printer path until you
feel resistance.
3. Press the LOAD/EJECT button to load the sheet.
LOAD/EJECT
Using the Printer Options 5-21

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
