Epson LX-810

Interface Boards

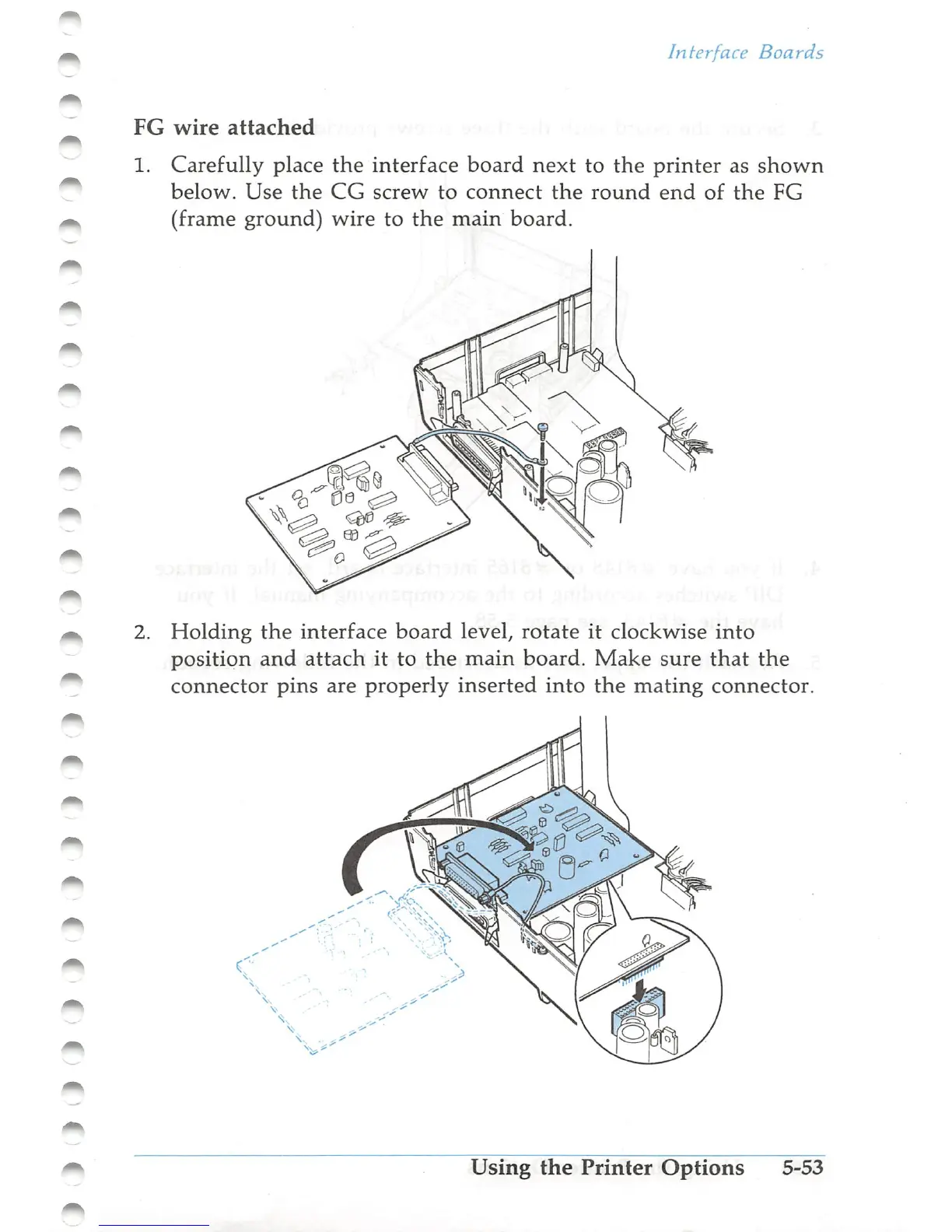

FG wire attached
1. Carefully place the interface board next to the printer as shown
below. Use the CG screw to connect the round end of the FG
(frame ground) wire to the main board.
2. Holding the interface board level, rotate it clockwise into
position and attach it to the main board. Make sure that the
connector pins are properly inserted into the mating connector.
