Epson LX-810 User Manual

Interface Boards

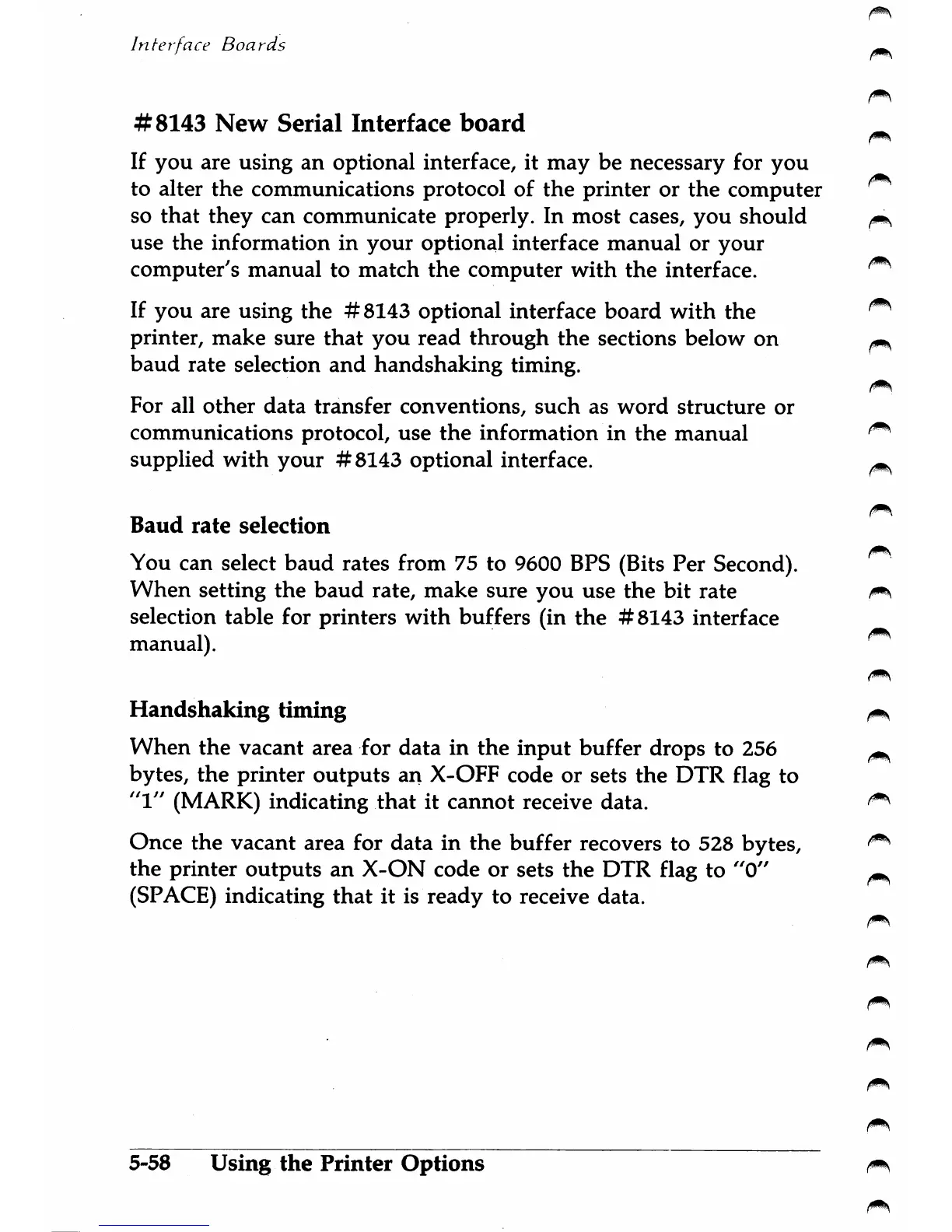

#8143 New Serial Interface board
If you are using an optional interface, it may be necessary for you
to alter the communications protocol of the printer or the computer
so that they can communicate properly. In most cases, you should
use the information in your optional interface manual or your
computer's manual to match the computer with the interface.
If you are using the # 8143 optional interface board with the
printer, make sure that you read through the sections below on
baud rate selection and handshaking timing.
For all other data transfer conventions, such as word structure or
communications protocol, use the information in the manual
supplied with your #8143 optional interface.
Baud rate selection
You can select baud rates from 75 to 9600 BPS (Bits Per Second).
When setting the baud rate, make sure you use the bit rate
selection table for printers with buffers (in the #8143 interface
manual).
Handshaking timing
When the vacant area for data in the input buffer drops to 256
bytes, the printer outputs air X-OFF code or sets the DTR flag to
"1" (MARK) indicating that it cannot receive data.
Once the vacant area for data in the buffer recovers to 528 bytes, ^
the printer outputs an X-ON code or sets the DTR flag to "0" ^
(SPACE) indicating that it is ready to receive data.
5-58 Using the Printer Options ^

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
