30 Setting Up the Projector
Connecting a Component Video Source
If your video source has component video connectors, you can use
them to project a higher quality video image than composite or
S-Video. You’ll need a component-to-VGA video cable, which can be
purchased from Epson (part number ELPKC19). See page 13 for
ordering information.
Before starting, make sure the projector and your DVD player or
other video device are turned off.
1. Connect the 15-pin VGA connector end of the
component-to-VGA video cable to the projector’s
Computer1 or
Computer2 port.
2. Insert the three component ends of the component-to-VGA video
cable into the color-coded video output ports on your video
source, usually labelled
Y, Pb, Pr or Y, Cb, Cr.
3. To play sound through the projector, follow the instructions
beginning on page 31.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 36 for instructions.
If more than one device is connected to your projector, select
Computer1 or Computer2 as the source by pressing the Source
Search
button on the projector or the remote control. See page 38.

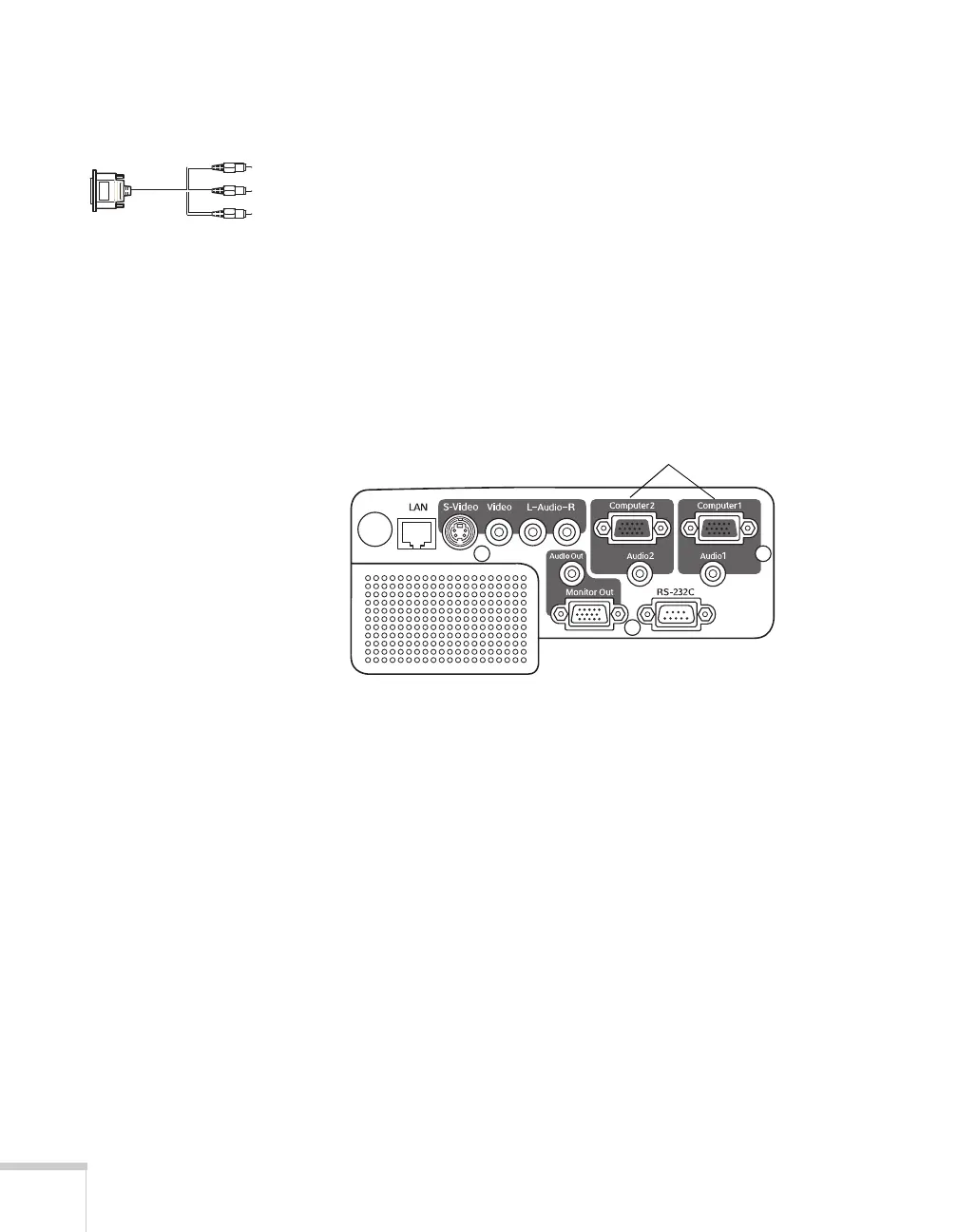

Component-to-VGA
