121
Note:
You
can
also
display
a
pattern
by
pressing
the
down
arrow
button
on
the
control
panel.

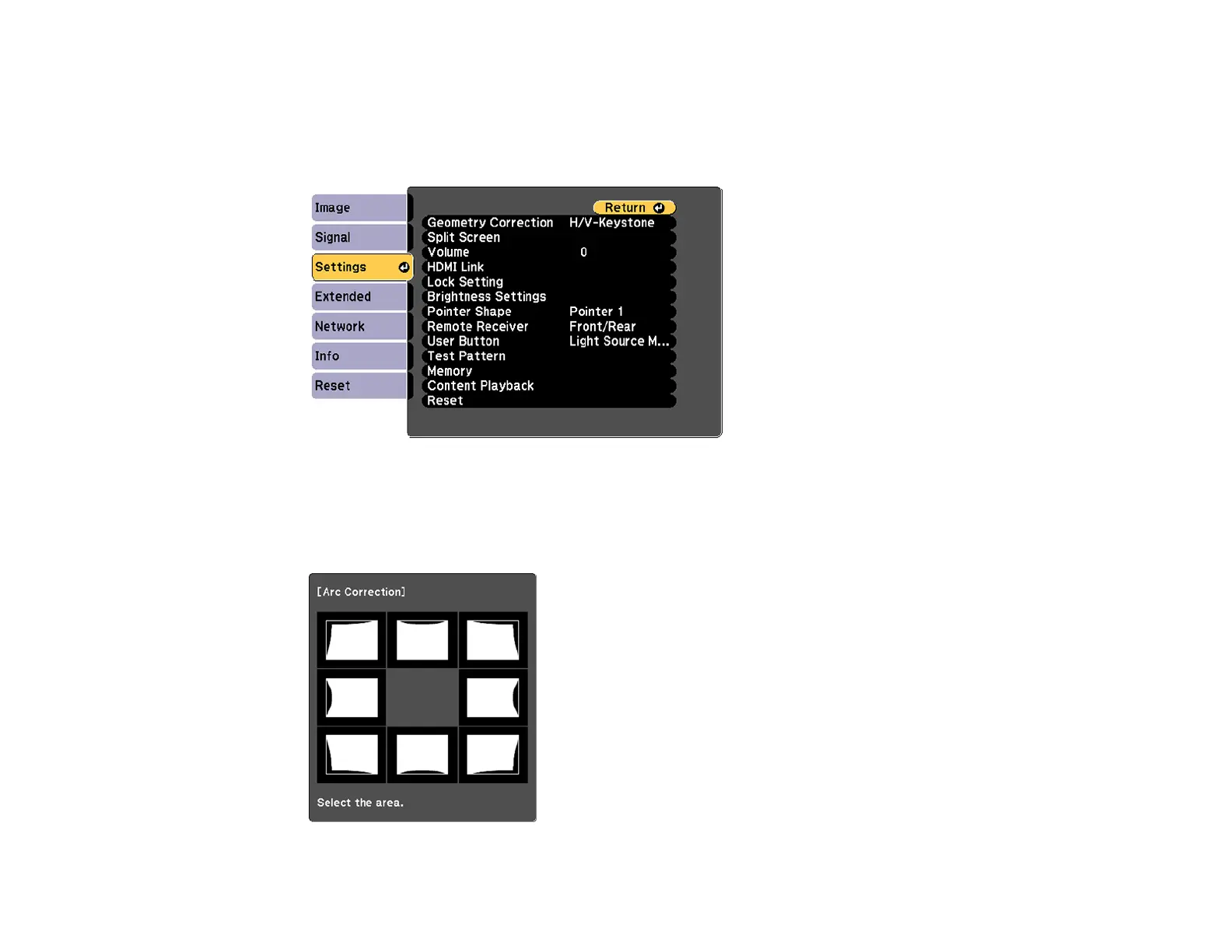

2.
Press
the
Menu
button.
3.
Select
the
Settings
menu
and
press
Enter
.
4.
Select
the
Geometry
Correction
setting
and
press
Enter
.
5.
Select
the
Arc
Correction
setting
and
press
Enter
.
Then
press
Enter
again.
You
see
the
Arc
Correction
adjustment
screen:
120
122
Table of Contents
Table of Contents
3
Powerlite L400U/L500W/L510U/L610/L610U/L610W/L615U User's Guide
11
Introduction to Your Projector
12
Projector Features
12
Product Box Contents
13
Additional Components
14
Additional Projector Software and Manuals
15
Optional Equipment and Replacement Parts
17
Warranty and Registration Information
18
Notations Used in the Documentation
18
Where to Go for Additional Information
18
Projector Part Locations
19
Projector Parts - Front/Top
19
Projector Parts - Rear
21
Projector Parts - Interface Ports
22
Projector Parts - Base
23
Projector Parts - Control Panel
24
Projector Parts - Remote Control
25
Setting up the Projector
27
Projector Placement
27
Projector Setup and Installation Options
27
Projection Distance
30
Projector Connections
35
Connecting to Computer Sources
35
Connecting to a Computer for VGA Video
35
Connecting to a Computer for HDMI Video and Audio
36
Connecting to a Computer for Sound
37
Connecting to Video Sources
38
Connecting to an HDMI Video Source
38
Connecting to a Component Video Source
39
Connecting to a Video Source for Sound
40
Connecting to an Hdbaset Transmitter
41
Connecting to a USB Device
42
Connecting to an External Computer Monitor
43
Connecting to External Speakers
44
Attaching and Removing the Cable Cover
45
Attaching the Zoom Ring Locks
47
Installing Batteries in the Remote Control
48
Using the Projector on a Network
50
Wired Network Projection
50
Connecting to a Wired Network
50
Selecting Wired Network Settings
51
Wireless Network Projection
54
Installing the Wireless LAN Module
55
Using Quick Wireless Connection (Windows)
57
Selecting Wireless Network Settings Manually
58
Wireless LAN Menu Settings
61
Selecting Wireless Network Settings in Windows
63
Selecting Wireless Network Settings on Mac
64
Setting up Wireless Network Security
64
Using a QR Code to Connect a Mobile Device
65
Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)
67
Screen Mirroring Restrictions
67
Selecting Screen Mirroring Settings
68
Connecting for Screen Mirroring with Miracast
69
Connecting for Screen Mirroring with a Windows 8.X/Windows 10 Computer
70
Setting up Projector Network E-Mail Alerts
71
Network Projector E-Mail Alert Messages
72
Setting up Monitoring Using SNMP
72
Controlling a Networked Projector Using a Web Browser
75
Web Control Options
77
Controlling a Networked Projector in Content Playback Mode
80
Web Control Options in Content Playback Mode
83
Using Crestron Connected
88
Setting up Crestron Connected
88
Controlling a Networked Projector Using Crestron Connected
89
Registering a Digital Certificate on the Projector
92
Importing a Web Server Certificate Using the Projector Menus
92
Registering Digital Certificates from a USB Device
94
Registering Digital Certificates from a Web Browser
96
Digital Certificate Types
97
Using Basic Projector Features
100
Turning on the Projector
100
Using the Home Screen
102
Turning off the Projector
103
Selecting the Language for the Projector Menus
104
Setting the Date and Time
105
Date and Time Settings
106
Resizing the Image with the Zoom Ring
107
Focusing the Image Using the Focus Ring
108
Setting the Screen Type
109
Adjusting the Image Position Using Lens Shift
109
Adjusting the Image Position Using Screen Position
112
Displaying a Test Pattern
113
Available Test Pattern Image Adjustments
114
Adjusting the Image Height
114
Image Shape
115
Correcting Image Shape with H/V Keystone
116
Correcting Image Shape with Quick Corner
118
Correcting Image Shape with Arc Correction
120
Selecting an Image Source
122
Remote Control Operation
123
Using the Remote Control as a Pointer
124
Projection Modes
125
Changing the Projection Mode Using the Remote Control
126
Changing the Projection Mode Using the Menus
126
Image Aspect Ratio
127
Changing the Image Aspect Ratio
127
Available Image Aspect Ratios
128
Color Mode
129
Changing the Color Mode
130
Available Color Modes
130
Turning on Automatic Luminance Adjustment
131
Adjusting the Brightness
132
Constant Brightness Usage Hours
133
Controlling the Volume with the Volume Buttons
135
Projecting a PC Free Presentation
136
PC Free Precautions
136
Supported PC Free File Types
137
Starting a PC Free Slide Show
138
Starting a PC Free Movie Presentation
140
PC Free Display Options
141
Projecting in Content Playback Mode
142
Projecting a Playlist in Content Playback Mode
142
Adding Effects to the Projected Image
144
Adjusting Projector Features
146
Shutting off the Picture and Sound Temporarily
146
Stopping Video Action Temporarily
147
Zooming into and out of Images
147
Projector Security Features
148
Password Security Types
149
Setting a Password
149
Selecting Password Security Types
151
Entering a Password to Use the Projector
152
Saving a User's Logo Image to Display
153
Locking the Projector's Buttons
155
Unlocking the Projector's Buttons
156
Locking the Remote Control Buttons
157
Installing a Security Cable
158
Projecting Two Images Simultaneously
159
Using Multiple Projectors
161
Multiple Projector Adjustment Overview
161
Projector Identification System for Multiple Projector Control
162
Setting the Projector ID
162
Setting the Remote Control ID
163
Matching the Screens Manually
164
Scaling an Image
165
Saving Settings to Memory and Using Saved Settings
166
Adjusting the Color Tone (Color Uniformity)
167
Scheduling Projector Events
169
Saving a Scheduled Event
170
Viewing Scheduled Events
170
Editing a Scheduled Event
171
Copying Menu Settings between Projectors
172
Saving Settings to a USB Flash Drive
173
Transferring Settings from a USB Flash Drive
175
Saving Settings to a Computer
176
Transferring Settings from a Computer
178
Adjusting the Menu Settings
180
Using the Projector's Menus
180
Image Quality Settings - Image Menu
182
Input Signal Settings - Signal Menu
184
Projector Feature Settings - Settings Menu
187
Projector Setup Settings - Extended Menu
190
Projector Network Settings - Network Menu
197
Projector Information Display - Info Menu
199
Event ID Code List
201
Projector Reset Options - Reset Menu
203
Maintaining and Transporting the Projector
206
Projector Maintenance
206
Cleaning the Lens
206
Cleaning the Projector Case
207
Air Filter and Vent Maintenance
207
Cleaning the Air Filter
208
Replacing the Air Filter
211
Replacing the Remote Control Batteries
214
Transporting the Projector
216
Solving Problems
217
Projection Problem Tips
217
Projector Light Status
218
Using the Projector Help Displays
222
Solving Image or Sound Problems
222
Solutions When no Image Appears
223
Solutions When "No Signal" Message Appears
223
Displaying from a PC Laptop
224
Displaying from a Mac Laptop
225
Solutions When no Image Appears on an External Monitor
225
Solutions When "Not Supported" Message Appears
225
Solutions When Only a Partial Image Appears
226
Solutions When the Image Is Not Rectangular
226
Solutions When the Image Contains Noise or Static
227
Solutions When the Image Is Fuzzy or Blurry
228
Solutions When the Image Brightness or Colors Are Incorrect
228
Solutions When an Afterimage Remains on the Projected Image
229
Solutions to Sound Problems
229
Solving Projector or Remote Control Operation Problems
230
Solutions to Projector Power or Shut-Off Problems
230
Solutions to Problems with the Remote Control
231
Solutions to Password Problems
232
Solutions When a Battery Message Appears
233
Solving Network Problems
233
Solutions When Wireless Authentication Fails
233
Solutions When You Cannot Access the Projector through the Web
234
Solutions When Network Alert E-Mails Are Not Received
234
Solutions When You Cannot Connect Using Screen Mirroring
235
Solutions When the Image Contains Static During Network Projection
235
Solutions When the Image or Sound Contains Static During Screen Mirroring
236
Where to Get Help
236
Technical Specifications
238
General Projector Specifications
238
Projector Light Source Specifications
241
Remote Control Specifications
241
Projector Dimension Specifications
241
Projector Electrical Specifications
242
Projector Environmental Specifications
244
Projector Safety and Approvals Specifications
244
Supported Video Display Formats
244
Notices
247
Recycling
247
Important Safety Information
247
Important Safety Instructions
247
Laser Safety Information
250
Laser Light Source Warning
252
Restriction of Use
252
List of Safety Symbols
252
FCC Compliance Statement
256
Binding Arbitration and Class Waiver
257
Trademarks
260
Copyright Notice
261
A Note Concerning Responsible Use of Copyrighted Materials
261
Copyright Attribution
262
Other manuals for Epson PowerLite L520W
Operation Guide
59 pages
Quick Reference
6 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Epson PowerLite L520W and is the answer not in the manual?
Ask a question
Epson PowerLite L520W Specifications
General
Brand
Epson
Model
PowerLite L520W
Category
Projector
Language
English
Related product manuals
Epson PowerLite EB-L520U
332 pages
Epson PowerLite L500W
262 pages
Epson PowerLite EB-L530U
6 pages
Epson PowerLite L400U
262 pages
Epson PowerLite EB-L250F
296 pages
Epson PowerLite EB-L210SF
289 pages
Epson PowerLite EB-L200SX
295 pages
PowerLite Pro Cinema LS10000
4 pages
1810p - PowerLite XGA LCD Projector
222 pages
826W - PowerLite WXGA LCD Projector
47 pages
V11H281020 - PowerLite 400W WXGA LCD Projector
47 pages
V11H254220 - PowerLite 77c XGA LCD Projector
4 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
