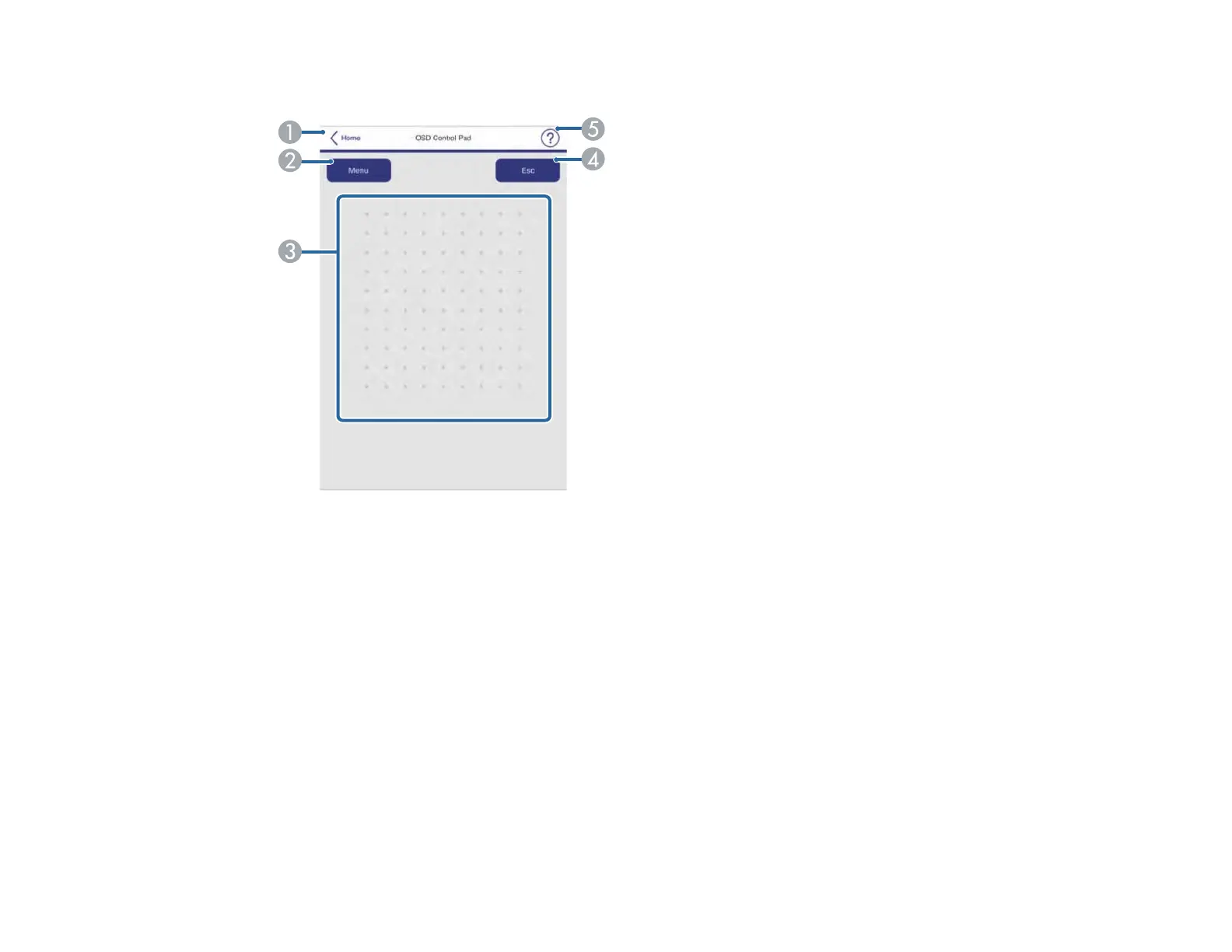

87
OSD
Control
Pad
1
Returns
to
the
Epson
Web
Control
screen
2
Displays
the
projector's
setting
menus
3
Use
your
finger
or
mouse
to
navigate
the
menus
4
Returns
to
the
previous
menu
5
Displays
help
topics
Note:
You
cannot
change
some
settings
using
Epson
Web
Control.
Parent
topic:
Controlling
a
Networked
Projector
in
Content
Playback
Mode
86
88
