Installation 2. Installation

RC700 Series Rev.3 47

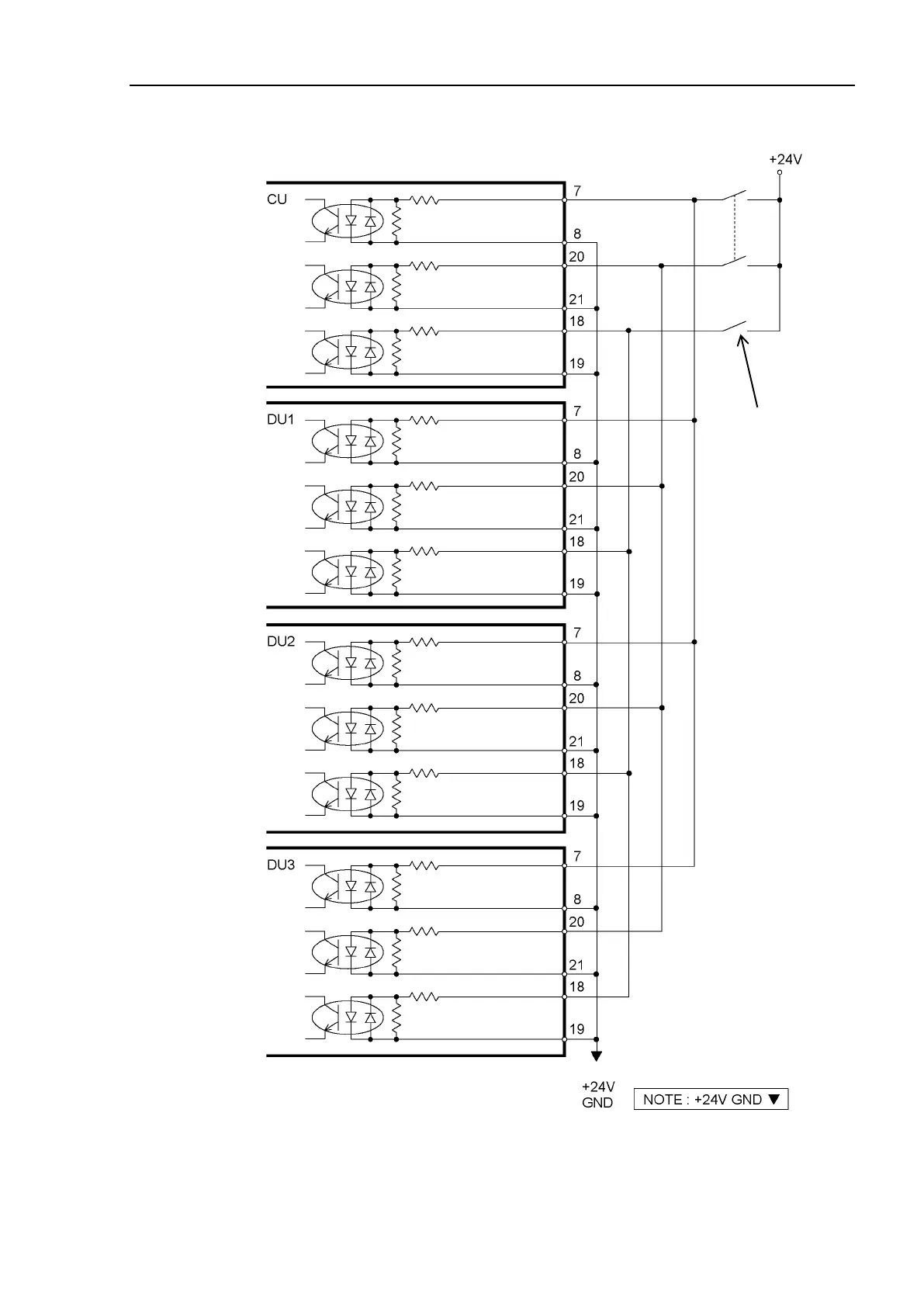

Wiring Example for Safety Door Input / Latch Release Input

External

Latch release input

Close :Latch off

Open :Latch on

Exter

nal

Safety Door input 1

Latch release input

Safety Door input 2

Safety Door input 1

Safety Door input 2

Latch release input

Safety Door input 2

Safety Door input 1

Safety Door input 2

Latch release input

Design the cables connecting the units within 20 m long.



NOTE
