Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Removing the Circuit Boards 102
Confidential

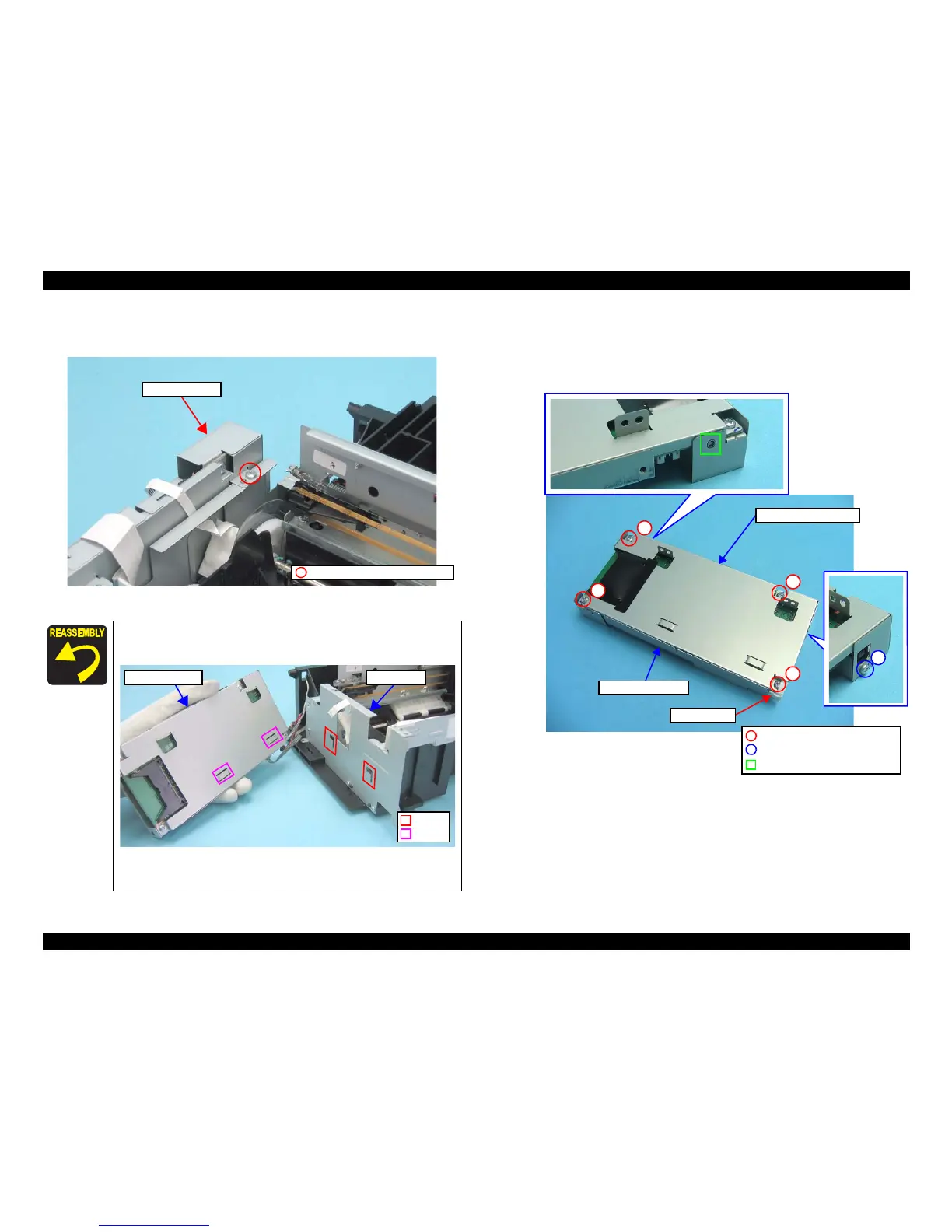

3. Remove the screw (x1) that secures the Main Board Unit, and remove the
Main Board Unit.
Figure 4-16. Removing the Main Board Unit (2)
 Disassembling the Main Board Unit
1. Remove the Main Board Unit. (p101)
2. Peel off the acetate tape.
3. Remove the screws (x5) and remove the MB Lower Shield Plate.
Figure 4-18. Removing the Main Board (1)
 When installing the Main Board Unit, insert its hooks (x2)
into the cutouts (x2) of the Left Frame.
Figure 4-17. Installing the Main Board Unit
 Tighten the screws in the order given in Figure 4-14.
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Main Board Unit
Main Board Unit
Left Frame
Cutout
Hook
2
4
1
3
5
Acetate Tape
MB Lower Shield Plate
Upper Shield Plate
C.P. 3x6, F/Zn-3C (2.7±1kgfcm)
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Positioning Hole and Guide Pin

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
