EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Scanner Unit 138
Confidential
4.6.3 Scanner Motor Unit
Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Upper Scanner Housing
Removal procedure
1. Move the Scanner Carriage Unit to the center.
(Refer to 4.6.2 Scanner Carriage Unit Step1 (p135))
2. Release the Driven Pulley from the Lower Scanner Housing, and release the
Scanner Timing Belt from the Combination Gear 22.8, 7.762 and the Driven
Pulley.
(Refer to 4.6.2 Scanner Carriage Unit Step2 (p136))
3. Pull out the ferrite core through the opening (1), and release the Scanner
Motor cable from the hooks of the Lower Scanner Housing.
4. Remove the two screws that secure the Scanner Motor Unit and remove the
Scanner Motor Unit.

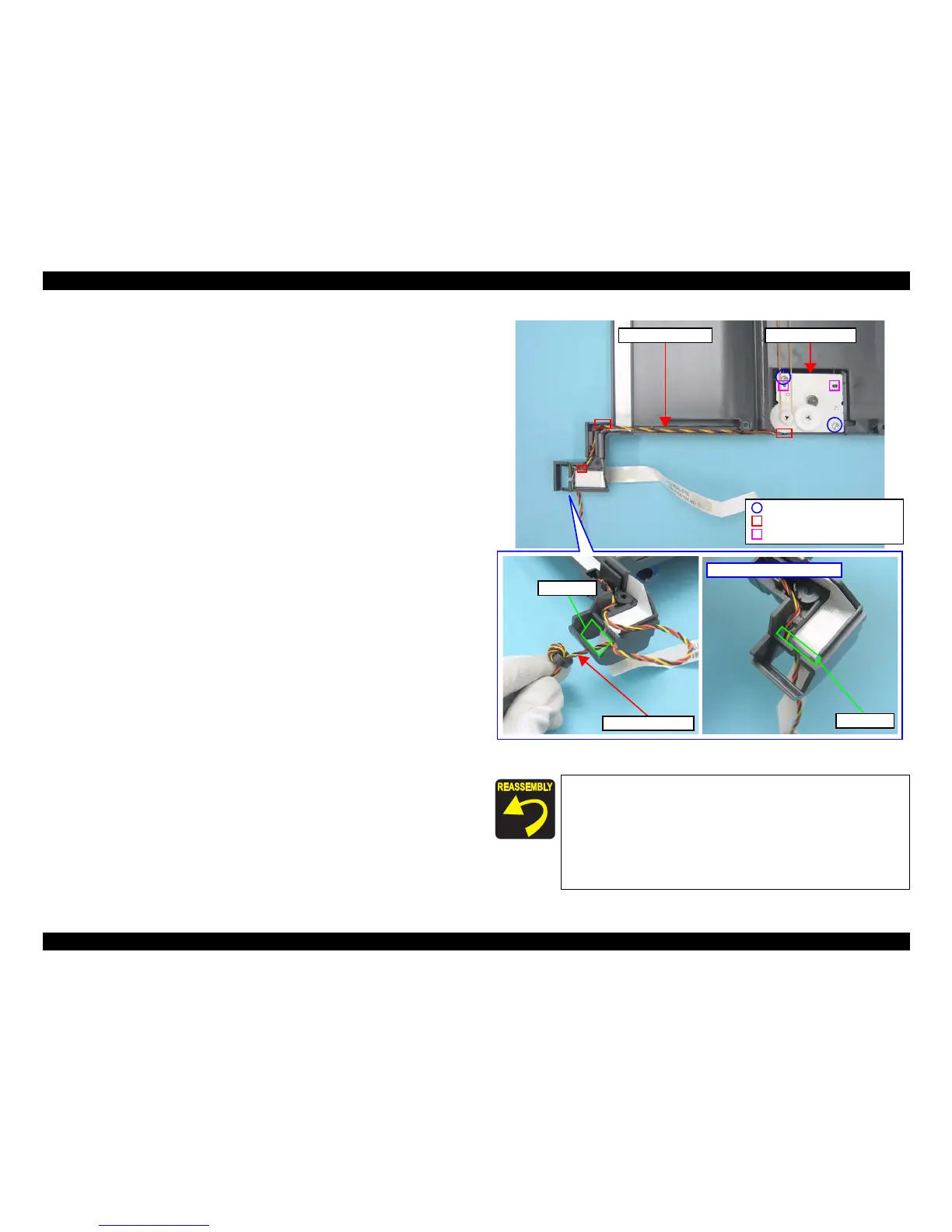

Figure 4-115. Removing the Scanner Motor Unit
When installing the Scanner Motor Unit, match the positioning
holes (x2) of the Scanner Motor Unit with their positioning
tabs (x2) of the Lower Scanner Housing as shown in
Figure
4-115
.
When routing the Scanner Motor cable, place the ferrite core
in the opening (1) after leading the Scanner Motor cable
through the opening (2) as shown in
Figure 4-115.
To Next Page
