Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Removing the Housing 100
Confidential
4.3.5 Upper Housing/Card Slot Cover
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit
 Removal procedure
 Upper Housing
1. Remove the screws (x6) that secure the Upper Housing.
2. Release the hooks (x5) that secure the Upper Housing and remove the Upper
Housing.

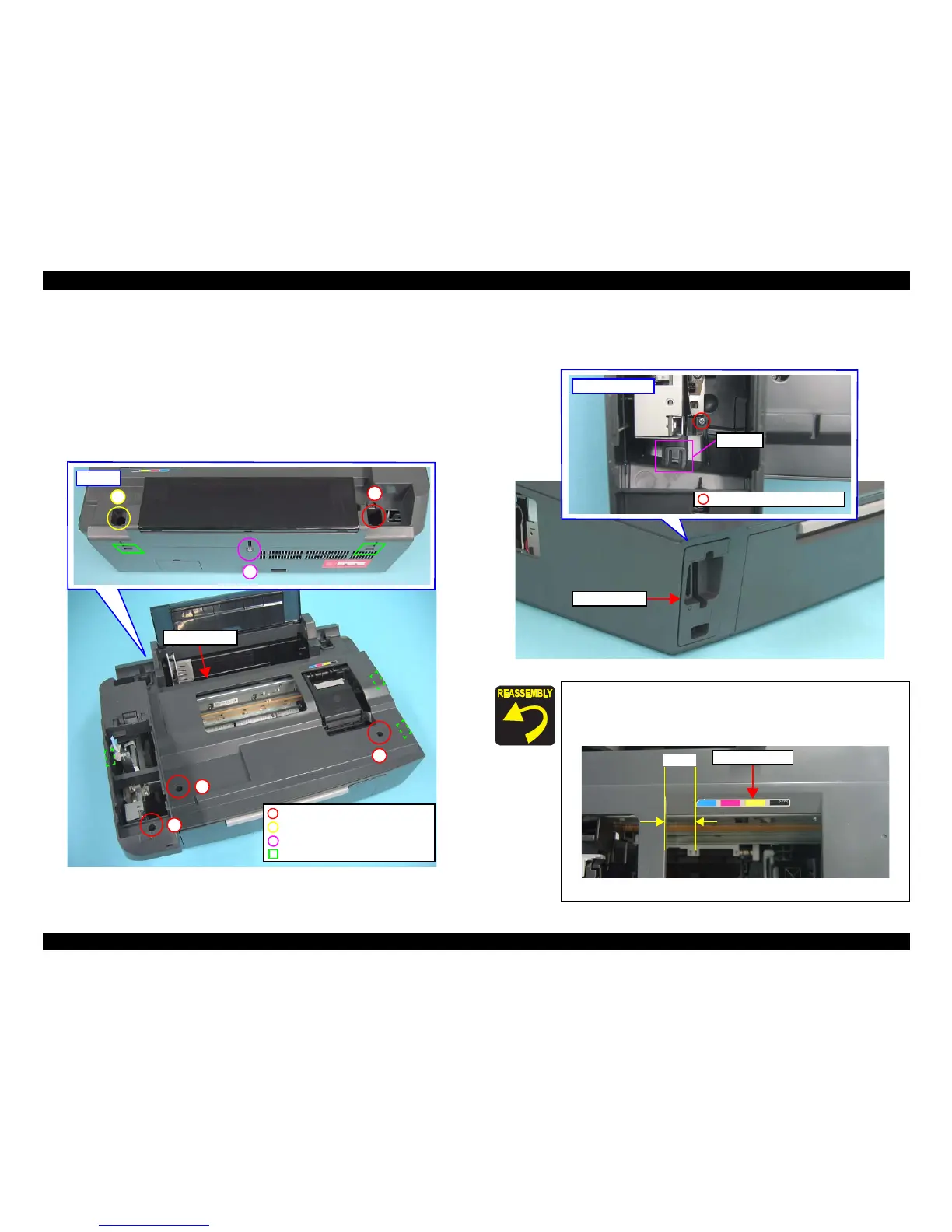

Figure 4-11. Removing the Upper Housing
 Card Slot Cover
1. Remove the screw (x1) that secures the Card Slot Cover.
2. Release the hook (x1) of the Card Slot Cover and remove the Card Slot Cover.
Figure 4-12. Removing the Card Slot Cover
Rear Side
1
5
6
C.B.P. 3x8, F/Zn-3C (4.5±0.5kgfcm)
C.B.P. 3x12, F/Zn-3C (4.5±0.5kgfcm)
C.B.P. 3x10, F/Zn-3C (4.5±0.5kgfcm)
2
3
4
Upper Housing
Hook
 Tighten the screws in the order given in Figure 4-11.
 The Ink Position Label is not included in the Upper Housing.
When replacing the Upper Housing, order the Ink Position
Label separately and attach the label as shown below.
Figure 4-13. Attaching Ink Position Label
Inside of Housing
Hook
C.B.P. 3x8, F/Zn-3C (6±1kgfcm)
Card Slot Cover
Ink Position Label
17mm

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
