4.5.18 Front Paper Guide
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing/Main Board Unit/Left Frame/Front Frame/Right Frame/CR
Motor/CR Scale/Hopper/Main Frame Assy/ASF Unit/Ink System Unit/Star Wheel
Holder Assy/EJ Roller
 Removal procedure
1. Remove the screws (x2) that secure the Front Paper Guide.

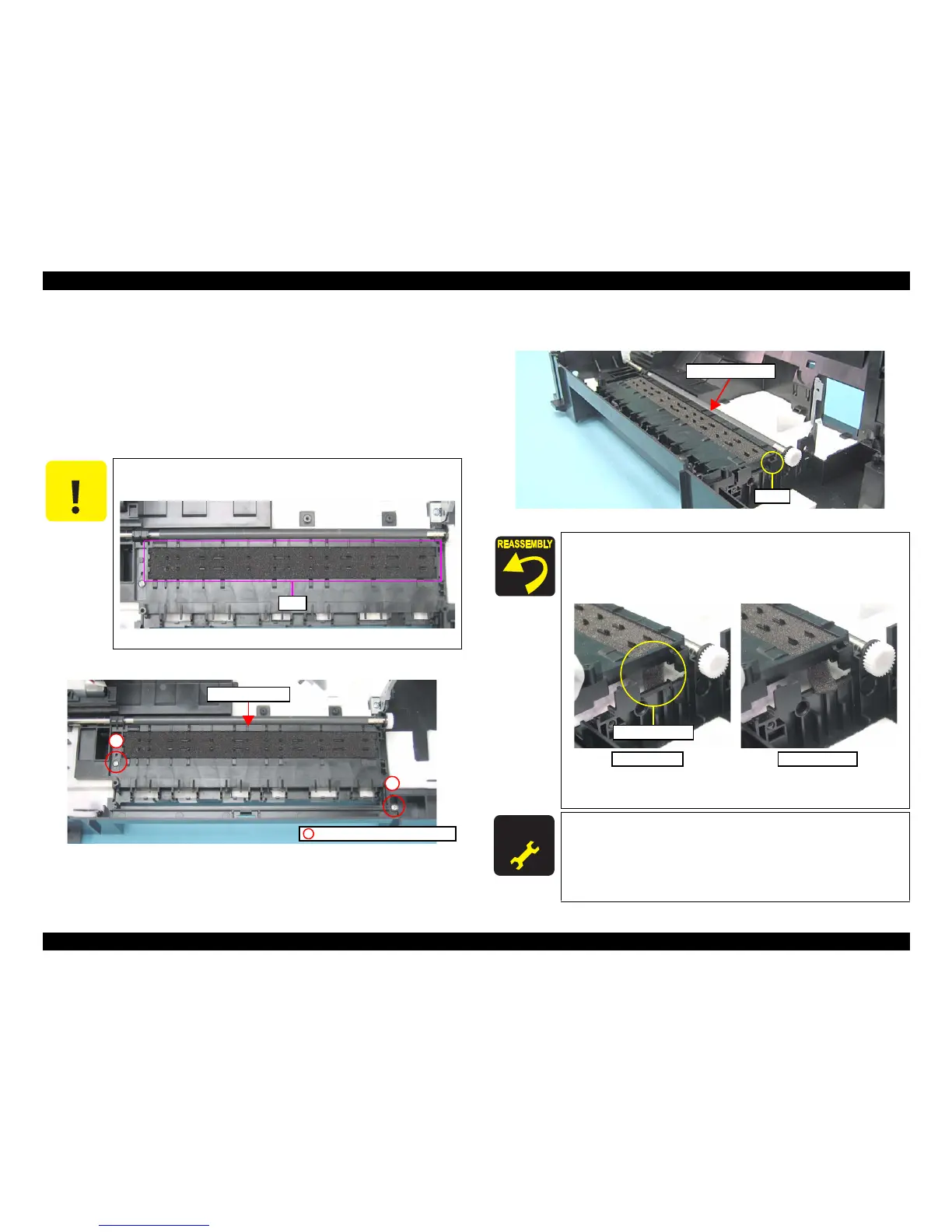

Figure 4-96. Removing the Front Paper Guide (1)
2. Release the hook (x1) of the Front Paper Guide, and remove the Front Paper
Guide.
Figure 4-97. Removing the Front Paper Guide (2)
C A U T I O N
When removing the Front Paper Guide, be cautious not to damage
the ribs on the upper surface of the Front Paper Guide.
Figure 4-95. Ribs of the Front Paper Guide
Ribs
Front Paper Guide
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
1
2
 When installing the Front Paper Guide, be cautious not to
damage the PF Roller.
 Make sure that the tip of the PGF Pad is set in the correct
position and confirm it is not caught between the Front Paper
Guide and the Base Frame as shown in the figure below.
Figure 4-98. Installing the Front Paper Guide
 Tighten the screws in the order given in Figure 4-96.
A D J U S T M E N T
R E Q U I R E D
 Whenever the Front Paper Guide, is removed/replaced, the
required adjustments must be carried out.
• Chapter 5 “ ADJUSTMENT” (p.141)
 After replacing the Front Paper Guide, be sure to perform the
required lubrication.
• Chapter 6 “ MAINTENANCE” (p.151)
Front Paper Guide
Hook
Tip of the PGF Pad
Correct Position
Incorrect Position
