Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 130
Confidential

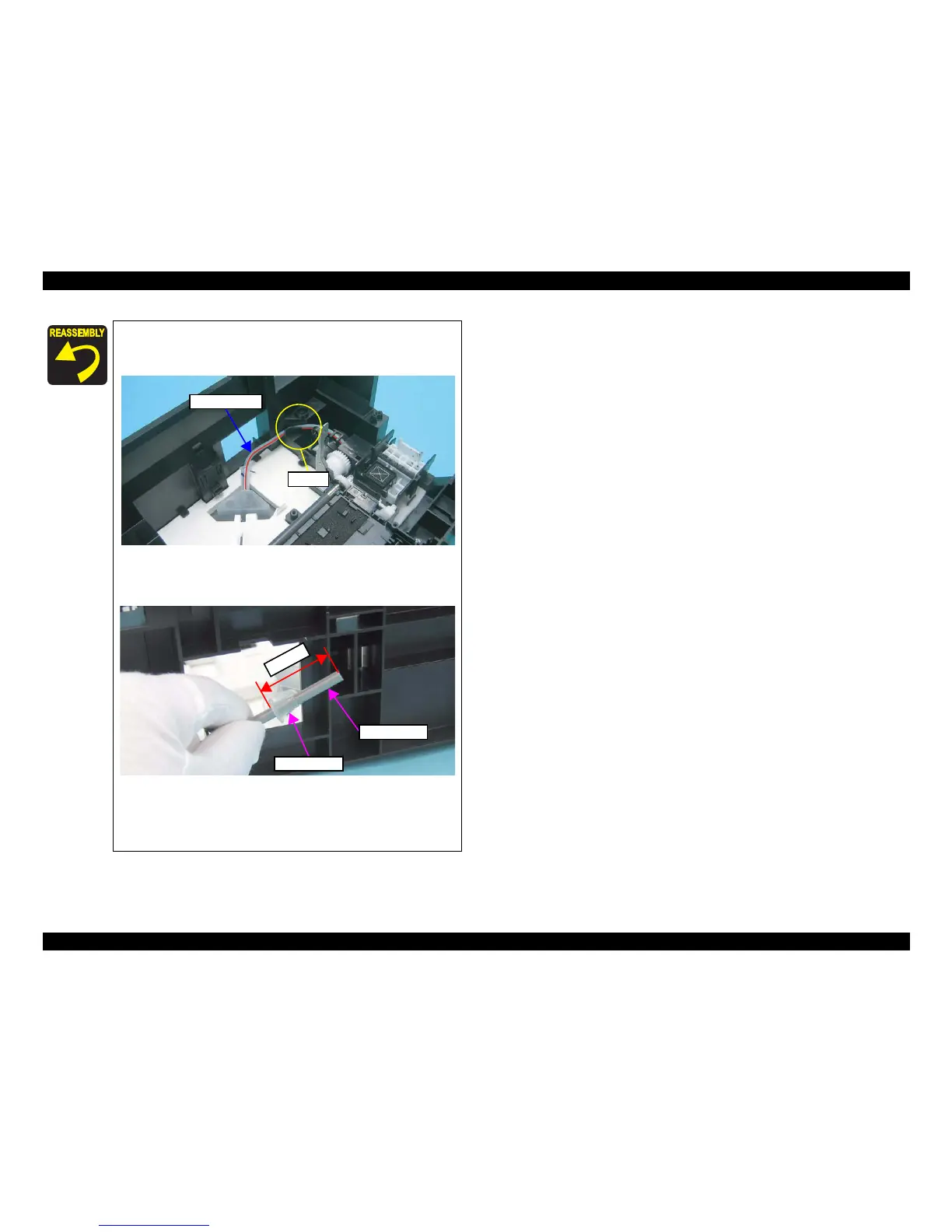

 Route the Waste Ink Tube through the groove of the Base
Frame so that the red line of the Waste Ink Tube faces to the
Ink System Unit side.
Figure 4-93. Routing the Waste Ink Tube
 Attach the Tube Stopper to the Waste Ink Tube as shown in
the figure below, and insert them into the Waste Ink Cover.
Figure 4-94. Installing the Waste Ink Tube
 When inserting the Waste Ink Tube into the Waste Ink
Cover, make sure that there is no gap between the Tube
Stopper and Waste Ink Cover.
Waste Ink Tube
Groove
Tube Stopper
Waste Ink Tube
3
0
±
1
m
m

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
