Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 129
Confidential
 If the Carriage lock lever comes off, reassemble it following
the steps below.
1. Attach the one end of the Extension Spring 0.8 to the
hook of the Carriage Lock Lever.
2. Attach the other end of the Extension Spring 0.8 to the
Ink System Unit.
3. Insert the dowel (x1) of the Carriage Lock Lever into the
hole (x1) of the Ink System Unit.

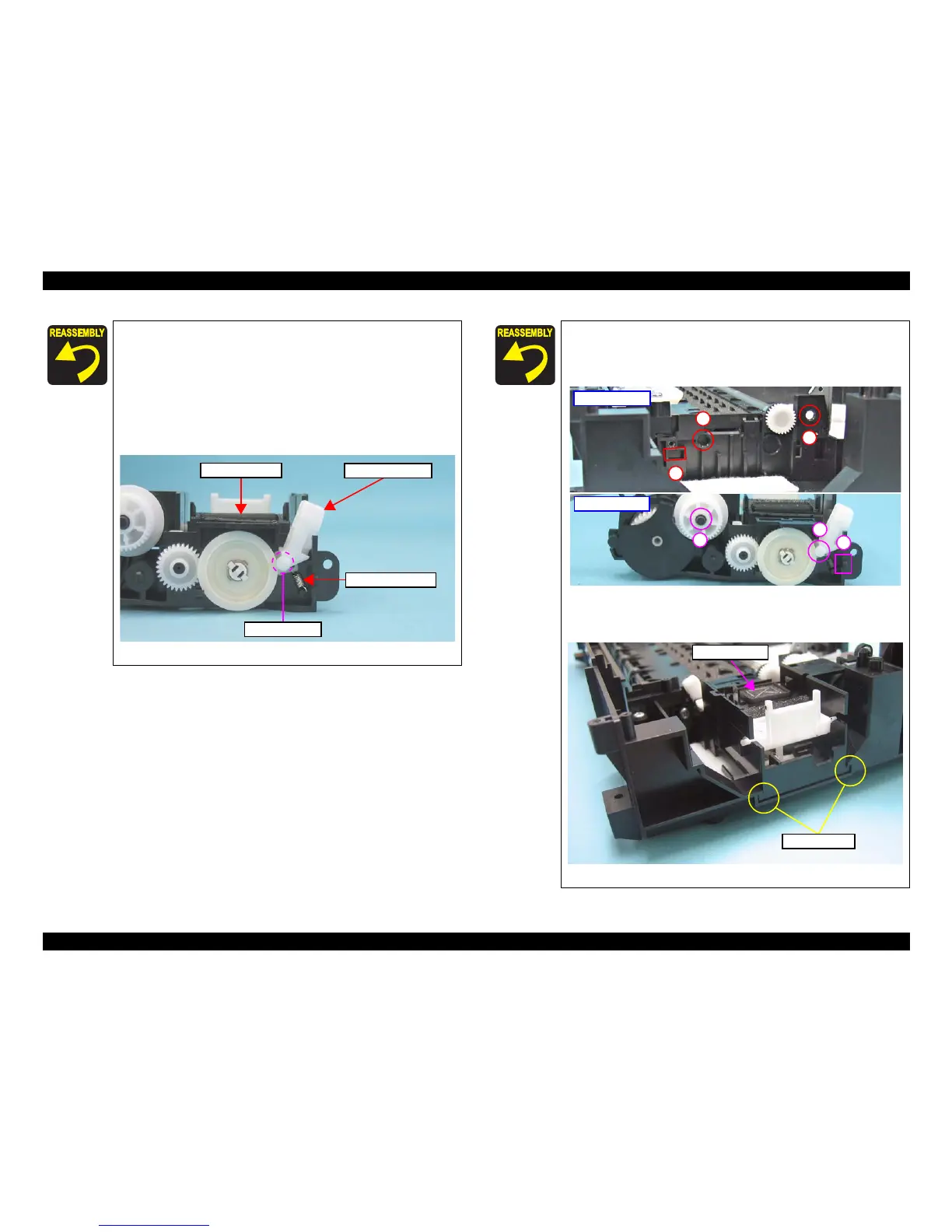

Figure 4-90. Installing the Carriage Lock Lever
Carriage Lock Lever
Extension Spring 0.8
Ink System Unit
Dowel and Hole
 When installing the Ink System Unit, pay attention to the
following instructions.
• Align the dowels (x3) of the Ink System Unit with the
positioning holes (x3) of the Base Frame.
Figure 4-91. Installing the Ink System Unit (1)
• Align the ribs (x2) of the Ink System Unit with the grooves
(x2) of the Base Frame.
Figure 4-92. Installing the Ink System Unit (2)
Base Frame Side
1
2
3
Ink System Side
1
2
3
Rib and Groove
Ink System Unit

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
